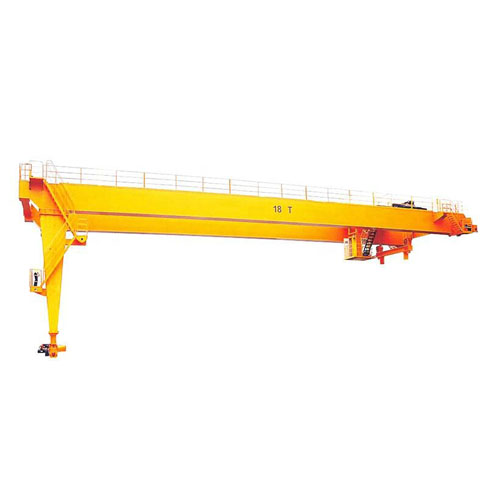

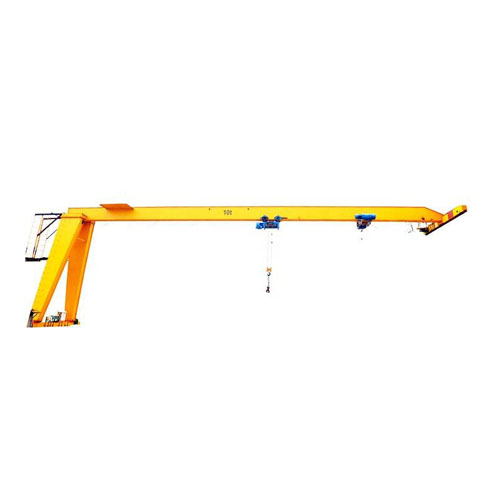

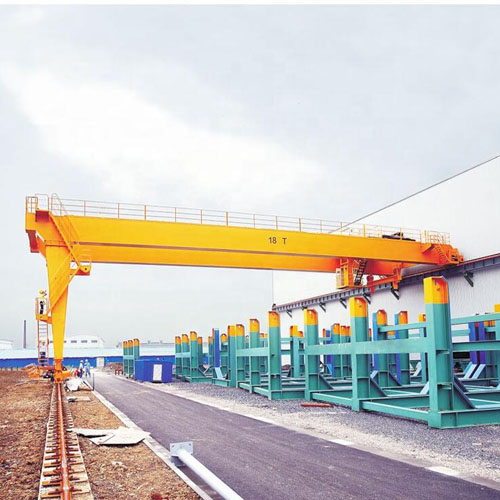

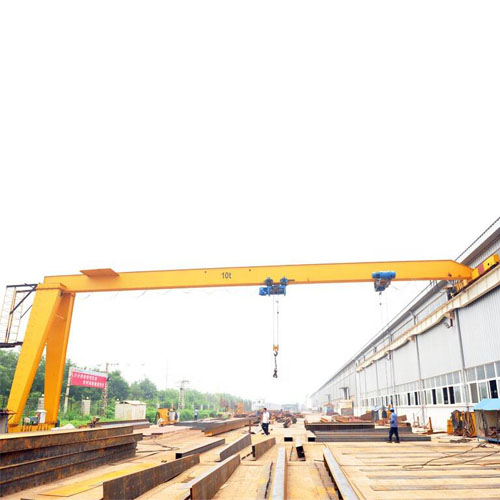

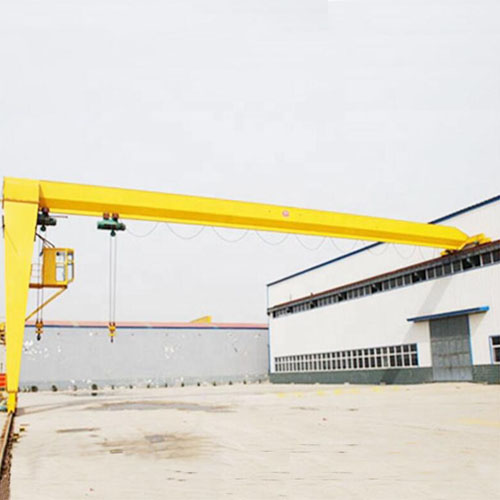

5 Ton 10 Ton Mini Single Girder Semi Gantry Crane
Payment Terms: TT or LC
Ref Price : 5000-30000 USD/SET
Sino-Sources Service Pledge
-
Quality Product
-
Credit Purchasing
-
Credit Rating
-
Timely Delivery
-
Order On-line Tracking
-
Credit Services
Quick Details
-
Max. Lifting Height：6m
-
Span：10-20m
-
Warranty：1 Year
-
After-sales Service：rovided: Field maintenance and repair service
-
Feature：Gantry Crane
-
Condition：New
-
Application：Outdoor;Workshop;Plant
-
Rated Loading Capacity：10ton
-
Rated Lifting Moment：can customized
-
Place of Origin：Henan, China (Mainland)
-
Brand Name：WEIHUA CRANE
-
Certification：ISO CE SGS GOST
-
Features：100 Ton Mini Single Girder Semi Gantry Crane
-
Type：Box Girder
-
Main electrical parts：Schneider and Siemens
-
Control Method：Remote or pendent control on ground
-
Work Class：A4
-
Color：Yellow or required by customered
-
Safety Devices：Included
-
Quality Assurance：Can accept return goods if any quality problem
Product Description:
Product Name: 5 Ton 10 Ton Mini Single Girder Semi Gantry Crane
Lifting capacity: 5~800t
Span: 18~36m
Lifting height: 10~33m
The detail description of 5 Ton 10 Ton Mini Single Girder Semi Gantry Crane:

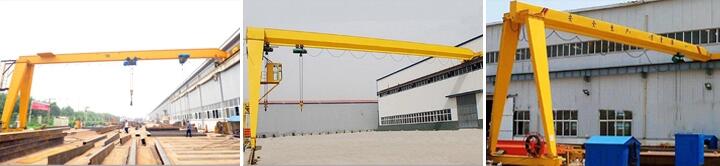

This crane is a general purpose light crane used in workshop or outdoors. The leg height of semi-gantry crane can be different according to the engineering needs on the construction field.
The single girder gantry crane has the features of simple structure, easy installation, light weight, good wind resistance. The Main girder is mostly bias rail box type structure.
Compared with the double girder country crane, the lifting capacity is smaller, generally ≤50t, and the span ≤35m. Single girder semi-gantry crane can be used with CD1, MD1 hoists. It can be remote control and floor control.
5 Ton 10 Ton Mini Single Girder Semi Gantry Crane is composed of bridge, support legs, crane travelling organ, trolley, electric equipment,strong lifting winch. The frame adopts box-type welding mechanism. Crane travellilng mechanism adopts separate driver. All mechanisms are operated in the driver cabin. Power is supplied by cable or slide wire. there are different capacity Mini Semi gantry crane for your choice according to your different use.
safety device:
5 Ton 10 Ton Mini Single Girder Semi Gantry Crane
To guarantee the normal operation of crane and avoid the personal casualty and mechanical damage, the safety device we provide are not only the electric protective devices or alarm bell but also other equipments as follows :
Technical Data
Technical data of the 5 Ton 10 Ton Mini Single Girder Semi Gantry Crane
|
Lifting
capacity (t)
|
Span (m)
|
Lifting height (m)
|
Work duty
|
Main lifting speed(m/min)
|
Deputy lifting speed(m/min)
|
Trolley travelling speed (m/min)
|
Crane travelling speed(m/min)
|
Power (KW)
|
Rail type
|
|
5
|
18~26
|
10
|
A5
|
9.2
|
--
|
37.2
|
37.7
|
27.8
|
43Kg/m
|
|
30~35
|
12
|
36.8
|
|||||||
|
10
|
18~22
|
10
|
8.5
|
--
|
37.2
|
37.7
|
38
|
||
|
26
|
10
|
||||||||
|
30~35
|
11
|
47
|
|||||||
|
20/5
|
18~26
|
10
|
7.1
|
9.2
|
36.6
|
40.1
|
67.3
|
||
|
30~35
|
12
|
44
|
78.3
|
||||||
|
32/5
|
18~26
|
10
|
6.3
|
9.2
|
29.8
|
38
|
85.5
|
||
|
30~35
|
12
|
40
|
93.5
|
||||||
|
50/10
|
18~26
|
10
|
5.9
|
8.5
|
31
|
40.1
|
141.5
|
QU80
|
|
|
30~35
|
12
|
44
|
157.5
|
||||||
|
75/20
|
18~26
|
12
|
3.9
|
7.2
|
38.4
|
3.7~37
|
146
|
||
|
30~35
|
12
|
||||||||
|
100/20
|
18~26
|
12
|
3.1
|
7.2
|
33.9
|
3.23~32.3
|
162
|
QU100
|
|
|
160/50
|
18~26
|
15
|
3.5
|
5.9
|
22.5
|
2.8~28
|
242
|
||
|
200/50
|
18~35
|
15
|
3.5
|
5.9
|
29
|
2.8~28
|
299
|
||
|
320/80
|
18~35
|
15
|
3.6
|
6
|
16.7
|
2.8~28
|
476
|
QU120
|
|
|
400/30
|
18
|
18
|
0.15~1.5
|
6
|
10
|
18
|
275
|
||
|
500/80
|
28.5
|
33
|
0.15~1.5
|
0.6~6
|
1.36~13.6
|
1.6~16
|
350
|
||
|
600/80
|
36
|
22
|
0.13~1.3
|
0.4~4
|
1.5~15
|
2.5~25
|
405
|
||
|
800/10
|
36
|
14
|
0.1~1
|
7
|
0.5~5
|
1~10
|
330 |

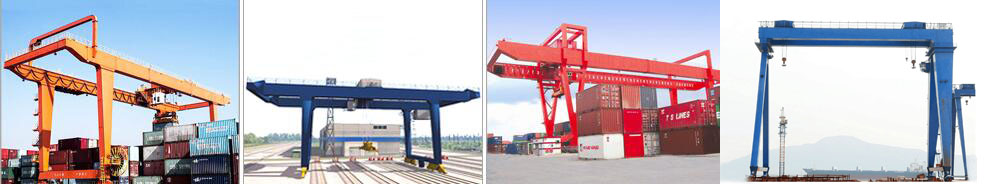

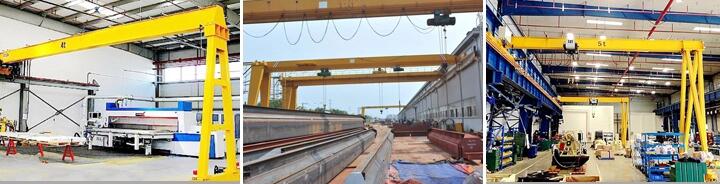

Other products:
Our Service:
1 More parameters, such as lifting capacity, lifting height, span, power supply, etc. And if you can give us your design drawing, that will be very helpful
2 Weihua is a famous leading manufacturer with experienced designers, engineers and a 600- people R&D team to provide all kinds crane with customized parameters.
3 We have a complete pre-sales&after-sales service system, and our engineers are available overseas. And we also provide training for your crane operators.
4 We have a long term cooperations with ABB, Siemens, Schneider, SEW, etc. And we have world-leading processing machines which are imported from Japan and German.
5 we can provide motors, reducers, brakes, hooks, remote controllers, wheels, crane rails, end carriages, enclosed busbar and so on.
Customer visiting:
Weihua Group, a leading crane manufacturing company in China, was Founded in 1988. We has been committed to heavy machinery researching and marketing.
The main product covers shipbuilding gantry crane, lifting machinery, port container crane, heavy mining machinery and construction machinery, etc. The whole coverage of Weihua Group is 3,420,000 m2 with 6,800 employees.
Weihua adheres to scientific and technological innovation and owns a 600-people R&D team, 494 patents, CNAS laboratory, etc. For the cranes, Weihua have made many breakthroughs which include anti-sway crane system, CNC high precision positioning crane system, self-climbing crane for wind power maintenance and so on.
In recent years, Weihua cranes have been employed to serve China's Aerospace Engineering projects such as launching of Shenzhou spacecraft, Long March carrier rockets and Tiangong space laboratory. You can also find Weihua products in the fields of manufacturing, metallurgy, nuclear power, railway,port, petrochemical and wind power.
Weihua products also find its places in the global markets and won much praise from108 countries like America, Japan, Russia, Singapore, Korea, Thailand, Malaysia, Mexico, etc.
Our success comes from customers' success. Welcome to Weihua.
