Quick Details

• Condition:

• New

• Type:

• Tile Forming Machine

• Tile Type:

• Colored Glaze Steel

• Use:

• shutter door

• Production Capacity:

• 4-6m/min

• Place of Origin:

• Hebei, China (Mainland)

• Brand Name:

• QJ

• Model Number:

• As your requirment

• Power(W):

• 5.5 Kw

• Voltage:

• 380V 3Phase 50Hz

• Dimension(L*W*H):

• 6500*1500*1200

• Weight:

• 4.5 Tons

• Certification:

• CE/ISO9001/BV

• Warranty:

• 18 months

• After-sales Service Provided:

• Engineers available to service machinery overseas

• Machine Color:

• as your requirement

• Usage:

• Shutter Door Slats

• Motor:

• 5.5kw

• Pump station:

• 4kw

• Under frame:

• 400H steel

• Operation:

• touch screen

• Raw material:

• PI/PPGI

• Sheet thickness:

• 0.3-0.6mm

• Shaft material:

• High grade 45# steel,forged and quenched

• Control system:

• PLC(imported Brand)

Packaging & Delivery

• Packaging Details

• 1.Main body is nude 2. PLC, pump, shafts are covered with plastic film 3. Spare parts in carton box 4. Packed according to customer's request

• Delivery Time

• Shipped in 30 days after payment



Product Description

1.High Precision And Speed

2.CE,ISO certification

3.Customization Accept

Suitable material	Color steel sheet , galvanized steel sheet,
Main motor power	4KW with Cycloidal reducer
Hydraulic station power	3KW
Hydraulic oil	40#
Thickness of material	0.3mm~0.8mm
Diameter of principal axis	Φ70mm
Material expand width	1000mm-1250mm
Electric tension	380V 3phase 50HZ or as the customer's requirements
Material of roller	High grade 45# forged steel (plated chrome plating on surface)
Rolling galvanization thickness	0.05mm
Processing speed	0-12m/min
Processing precision within	10m+/-1.00mm
Material of cutting blade	Cr12 mould steel with quenched treatment
Kind of drive	1 inch chain link bearing model 6210
Roller station	11/15 Roller Station

Product Show

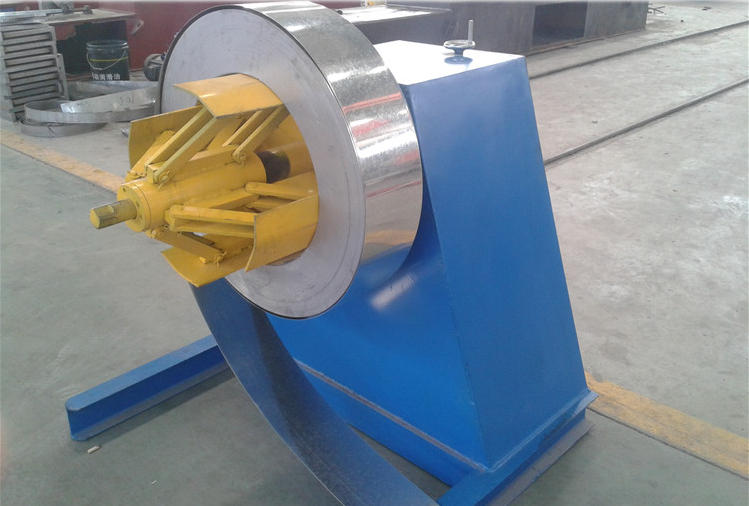

Decoiler

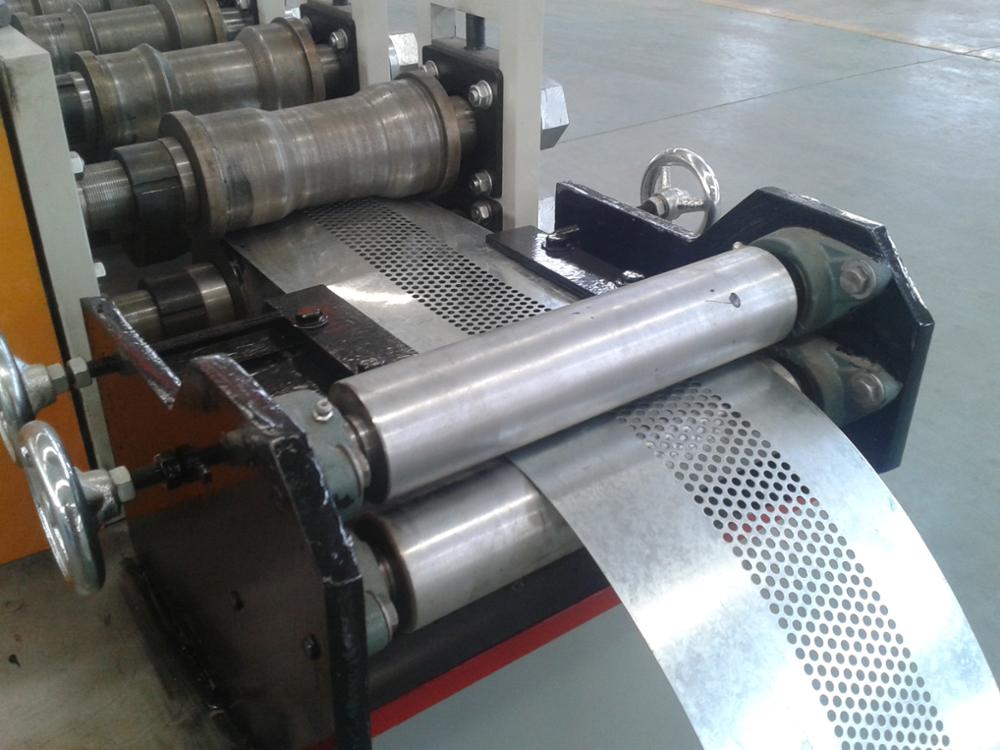

Feeding Device

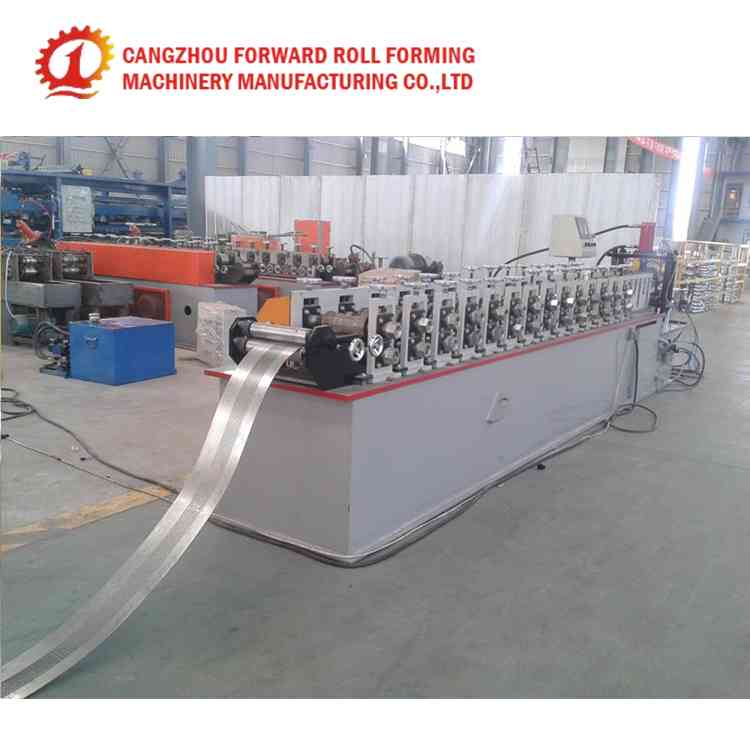

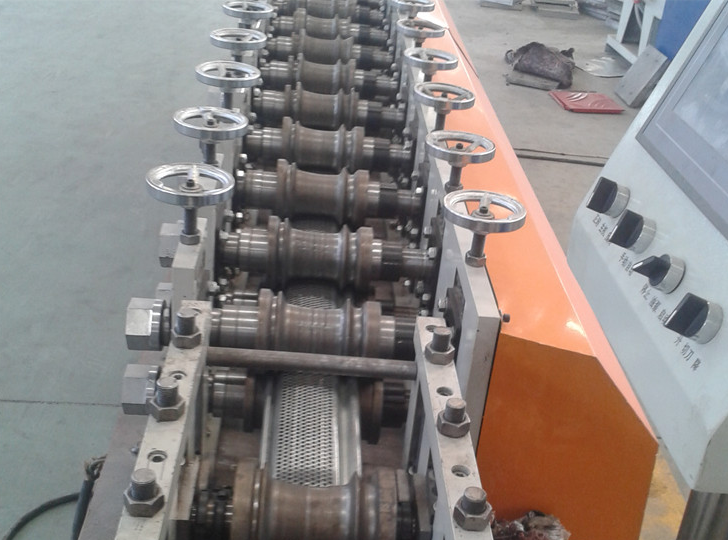

Roll Forming System

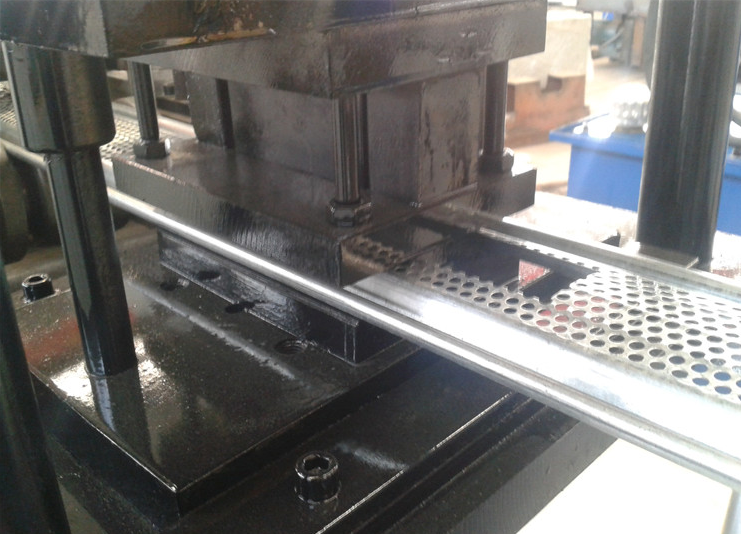

Punching

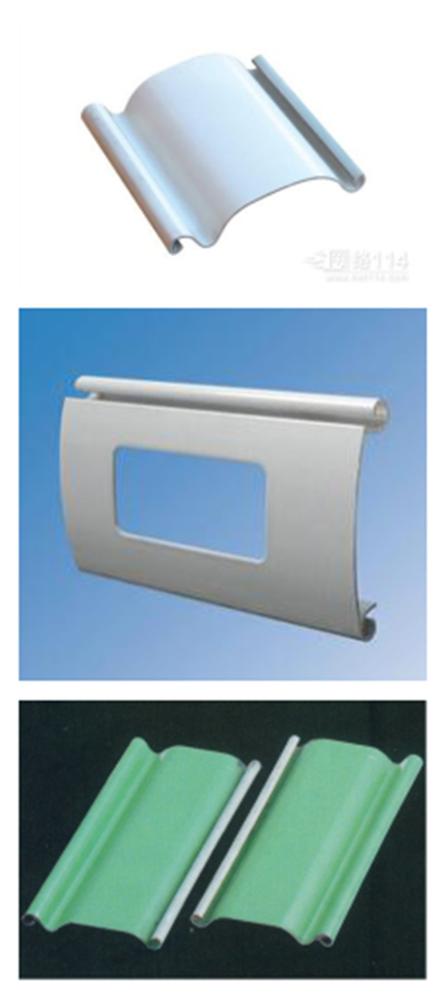

Application

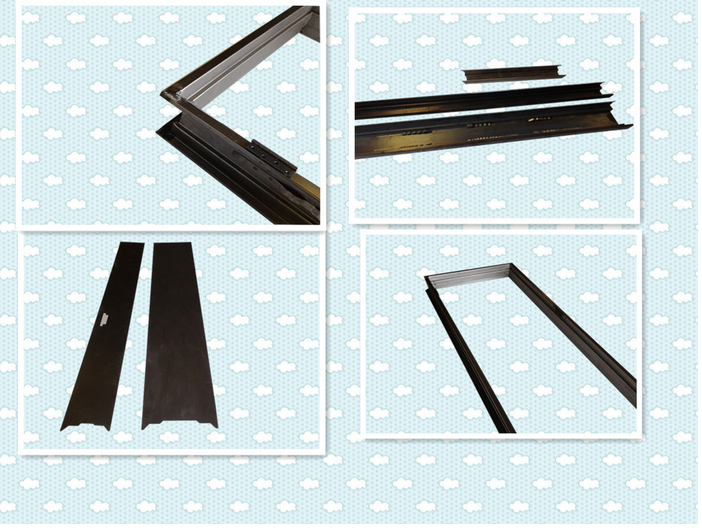

Product process



Our Services

1.Accept any cutomized requirement

2.If you order our machine,we can provide you installing and debugging.

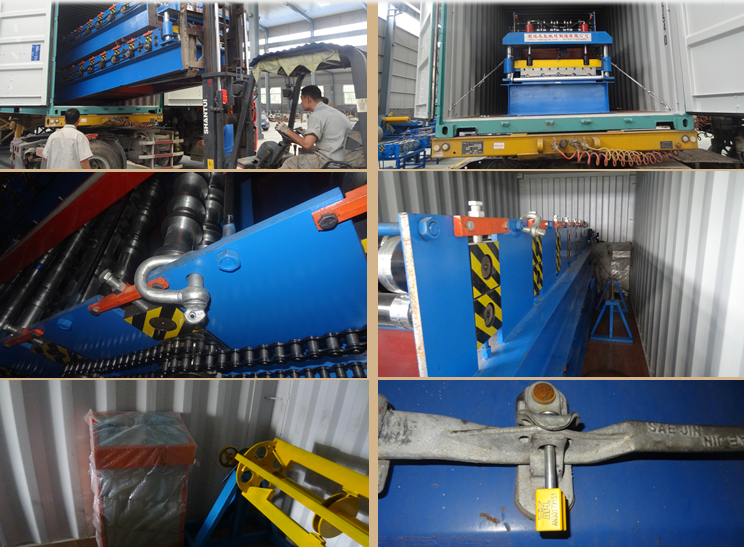

Packing and Delivery

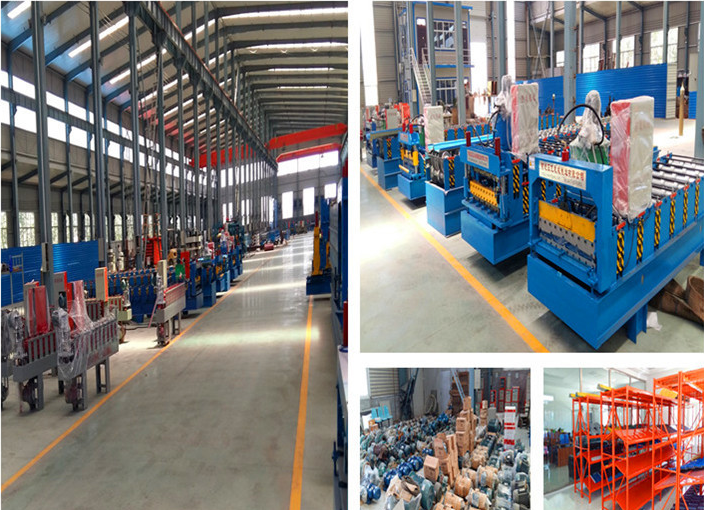

Company Information
