Quick Details

• Type:

• Steel Frame & Purlin Machine

• Condition:

• New

• Work Pressure:

• 240Mpa

• Production Capacity:

• 30-40m/min

• Place of Origin:

• Hebei, China (Mainland)

• Brand Name:

• FORWARD

• Model Number:

• QJ75

• Voltage:

• 380V 50Hz 3phases

• Power(W):

• 5.5kw

• Dimension(L*W*H):

• About 5000mm*900mm*1300mm

• Weight:

• About 3000kg

• Certification:

• TUV SGS

• Warranty:

• 18months

• After-sales Service Provided:

• Engineers available to service machinery overseas

• Machine Type:

• Glvanized steel roll forming machine

• Roller Station:

• 12 units

• Pump power:

• 5.5KW LICHAO Shanghai

• Transmission:

• Gear drive

• Automatic PLC:

• Delta Mitsubishi or as your request

• Roller Material:

• High grade 45# forging steel with key-way

• Shaft Material:

• High grade 45# steel with key-way

• Shaft Diameter:

• 50 mm

• Cutting Frame:

• Guide pillar for balance cutting and long life

• Length Tolerance:

• 10m+/-1mm

Packaging & Delivery

• Packaging Details

• CUL Light steel keel making machine for India Customer

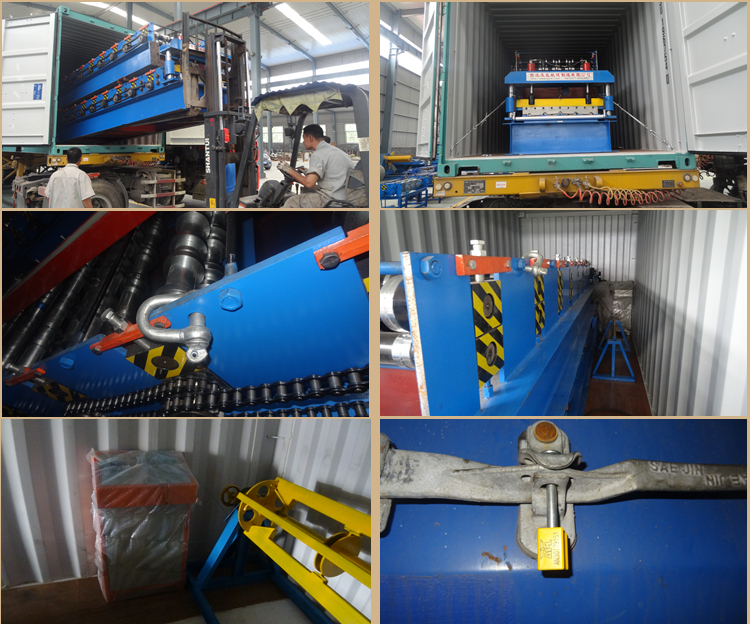

  Simple waterproof fit for ocean ship, need a 20 GP container for the whole line.
  Before the loading, we will fixed the machine, ensuring that it won't move on the sea,
  before the shipping, we will invite our customer to check the machine, or send videos and photos to customers, then we will ship the machine.

• Delivery Time

• Shipped in 30 days after payment

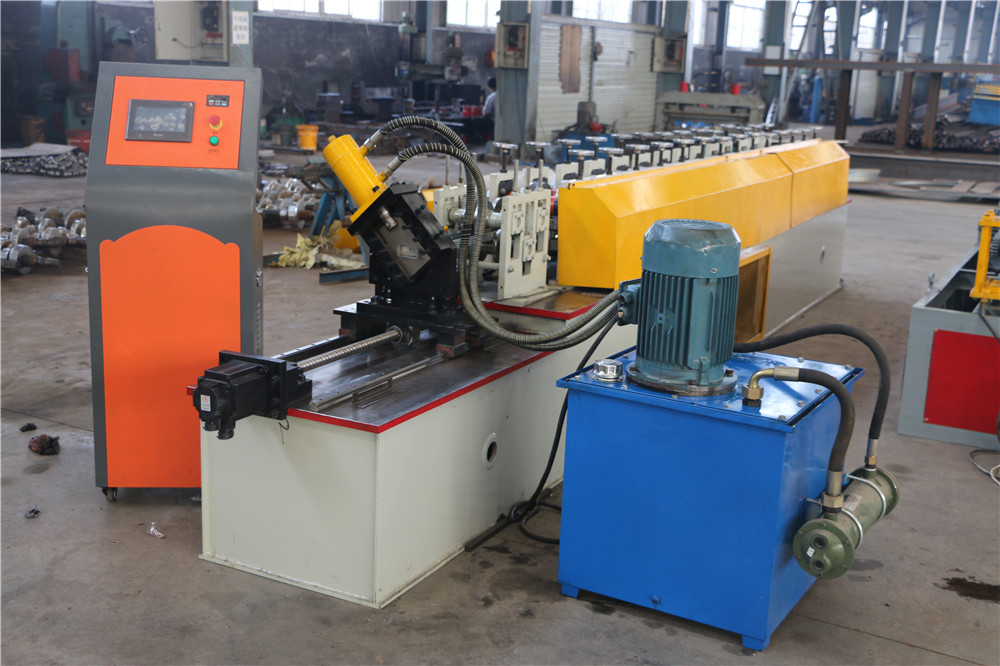

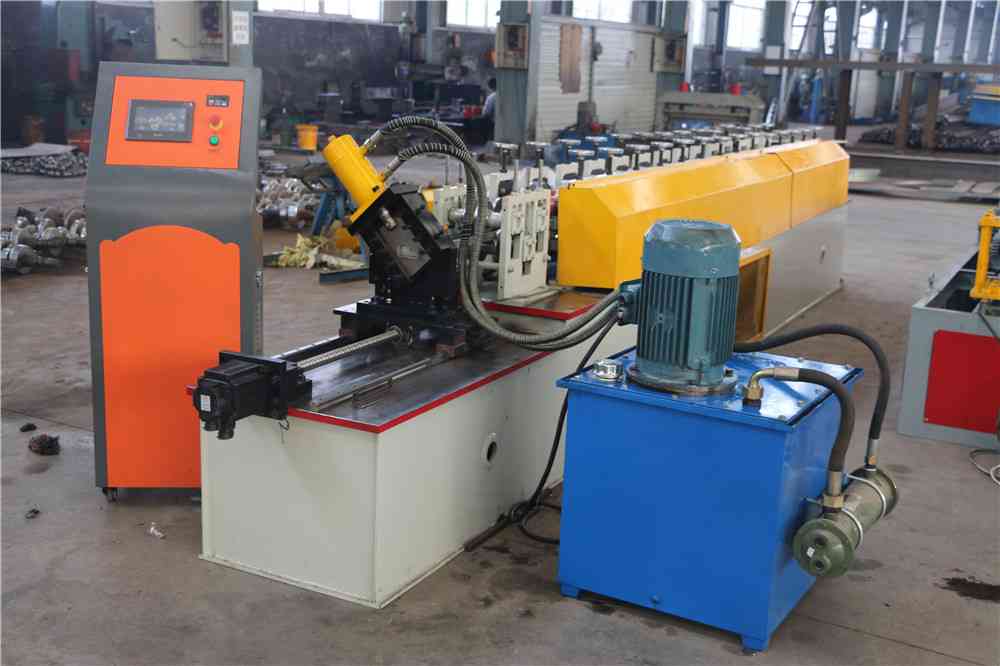

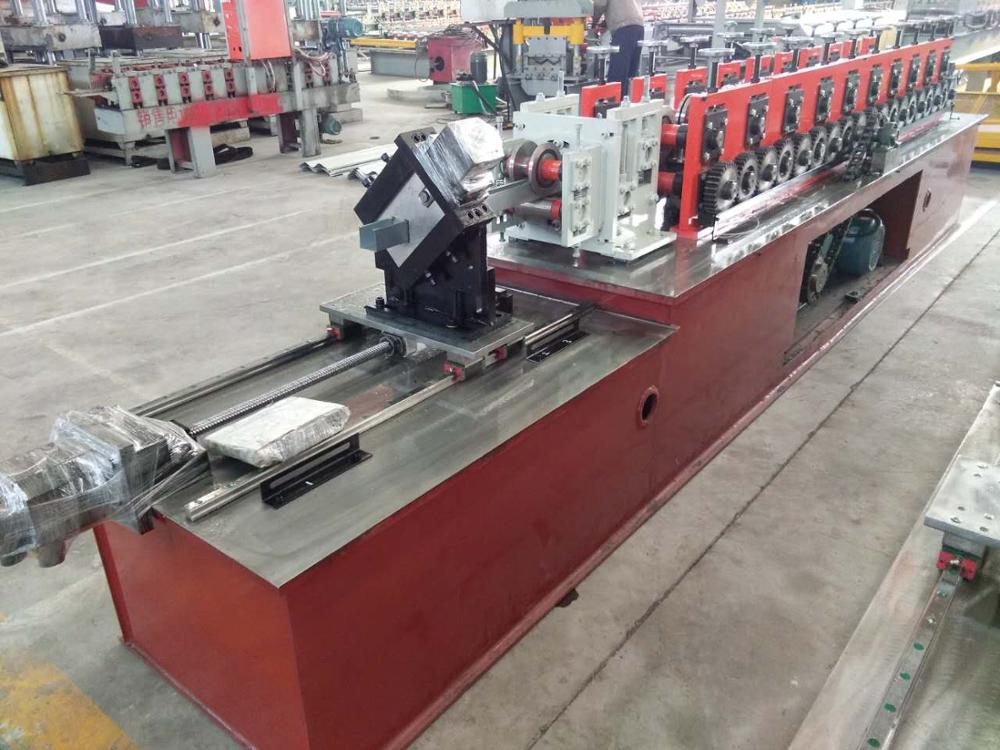

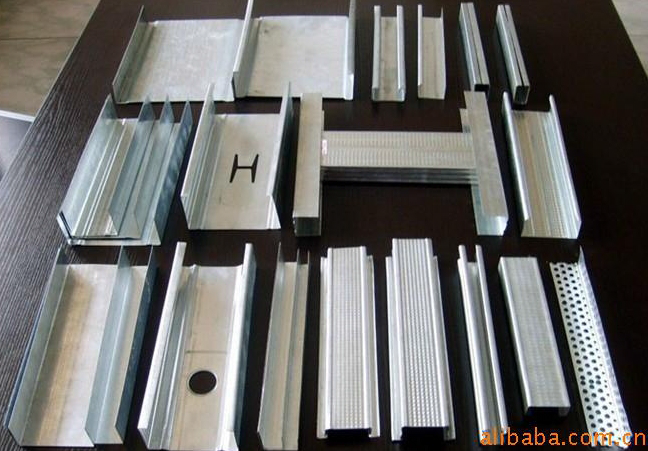

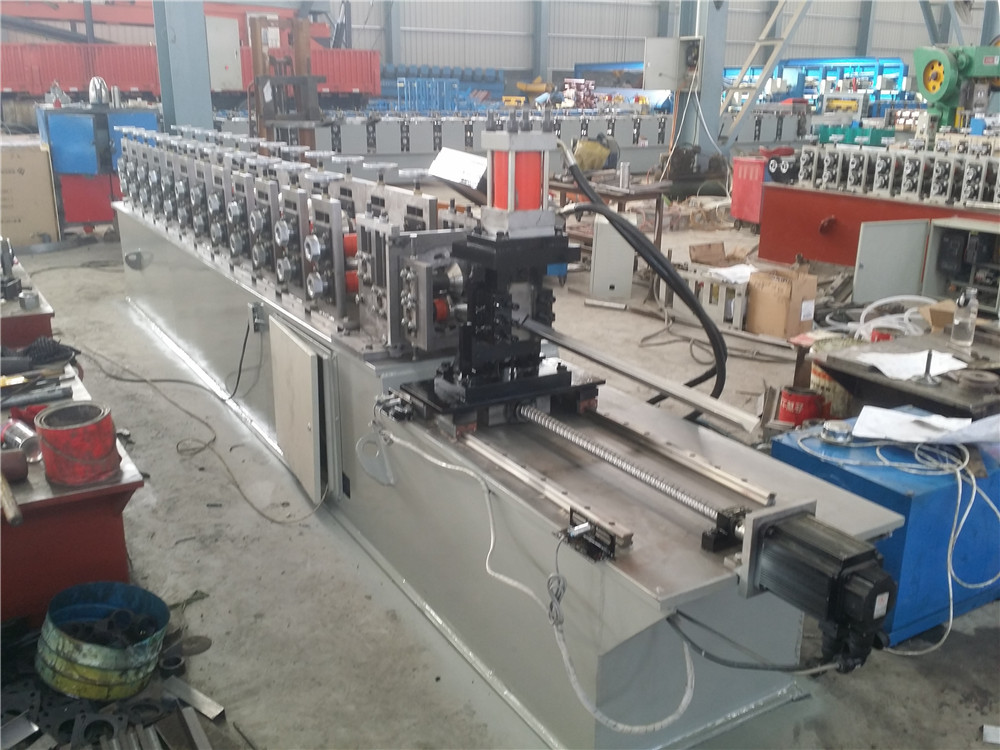

CUL  Light steel keel making machine for India Customer

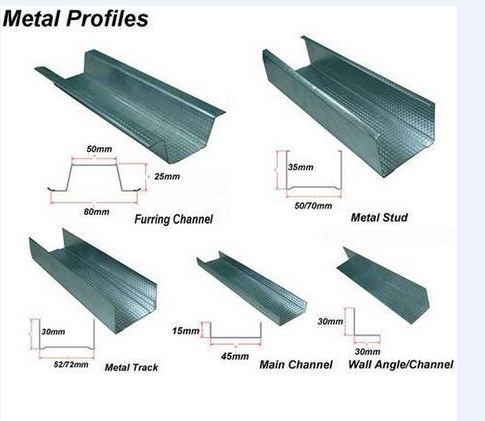

Name	type	rolling stations	shaft diamater	motor	oil pump
C	50/75/100	12	50MM	5.5KW	5.5KW
U	50/75/100	12	50MM	5.5KW	5.5KW
L	30*30	8	40MM	4KW	4KW









We can design and produce the machine as your request,welcome to send us your specification and drawing ,we will give you a satisfied solution.







Packaging & Delivery





Company



FAQ:

Q1. What's your delivery time?

A1:Depending on the type of machine, duration of 1.25 days to 60 days from the date of order.



Q2. Do you have after-sales support?

A2:Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.



Q3. Do you sell only standard machines?

A3:No, most of our machines are built according to customers specifications,using top brand components.



Q4. What will you do if the machine is broken?

A4:Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.If it is beyond the warranty period,we can negotiate to solve the problem,and we supply the technical support for the whole life of the equipment.



Q5. Can you be responsible for transport?

A5:Yes,please tell me the destination port or address.we have rich experience in transporting.



Q6. How to visit your company?

A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).

2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
