Product Description

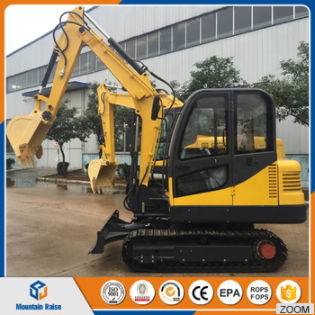

China digging machine 4.2ton small mini excavator prices
Product Description
Standard Eqipment
4.2ton crawler excavator with Yanmar Engine 25.2kw, low consumption, low noise and high torque. Our main
pump, value, swing motor and travel motor are equipped with orignal from abroad. Reliable quality and high
performance to make our famous brand.
Technical Specifications
| Overall Dimensions | Operating weight | 4200kg |
| Bukcet capacity | 0.17m3 | |
| Bucket width | 640mm | |
| Ground Pressure | 36KPa | |
| Dimension(L*W*H) | 5500*1750*2455mm | |
| Ground contact length | 3353mm | |
| Over height(to top of boom) | 1861mm | |
| Counter weight ground clearance | 585mm | |
| Mini Ground Clearance | 350mm | |
| Track grounding length | 1710mm | |
| Track shoe width | 350mm | |
| Working Range | Boom Length | 2650mm |
| Max. Digging height | 5030mm | |
| Max. Dumping height | 3410mm | |
| Max. Digging depth | 3405mm | |
| Max. Digging distance | 5530mm | |
| Bucket Digging force | 23.7kN | |
| Arm Digging force | 21.6kN | |
| Engine | Model | Yanmar 4TNV88 |
| Type | Direct injection. water cooled, natural intake | |
| Power Out put | 25.2kw/2200rpm | |
| Max.torque | 142N.m/1200rpm | |
| Travel System | Travel speed | 2.7/4.4 (Km/h) |
| Drawbar pulling force | 35kN | |
| Gradeablity | 58%(30.) | |
| Ground Clearance | 350mm |

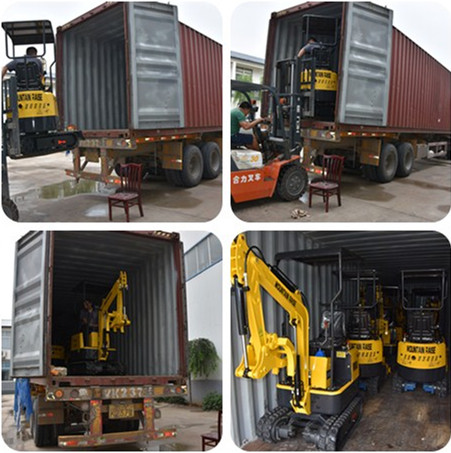

Packaging & Shipping
Company Information

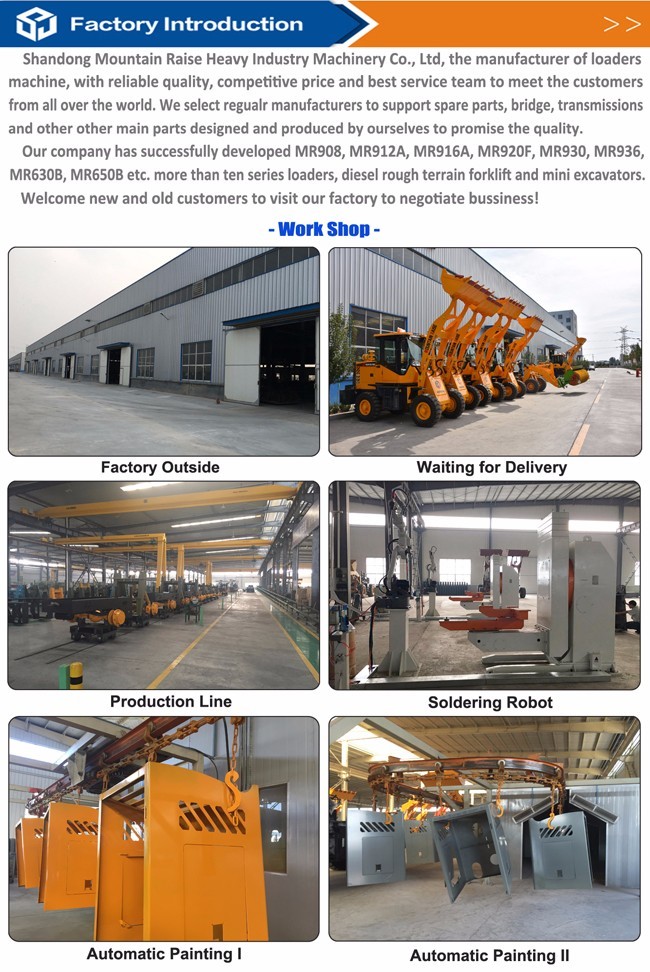

Shandong Mountain Raise Heavy Industry Machinery Co.,Ltd is a company which has more than 10 years
Production and exporting experience. Now our products can be found working in more than 40 countries.
Company covers an area of 15800 square meters, plant area of 11200 square meters, independent researched and developed wheel loaders, backhoe loader, mini excavators, rough terrain forkliftes etc. products, which
passed CE, SGS, TUV certificate, ROPS and FOPS cabin and EPA certificate.etc
Our company regards"reliable quality, reasonable prices, high productivity and good after-sales service"as
our purpose and principle. In order to provide good services to our overseas customers, we have set up spare parts warehouses in many countries to ensure better after-sales service for customers. Choose Mountain Raise, good service will be guaranteed.
We hope our professional experience and skills can bring long-term mutually beneficial business relationships with all of our customers.
