LD type Electric 5T Single Beam Top Running Bridge Crane

Product Detail:

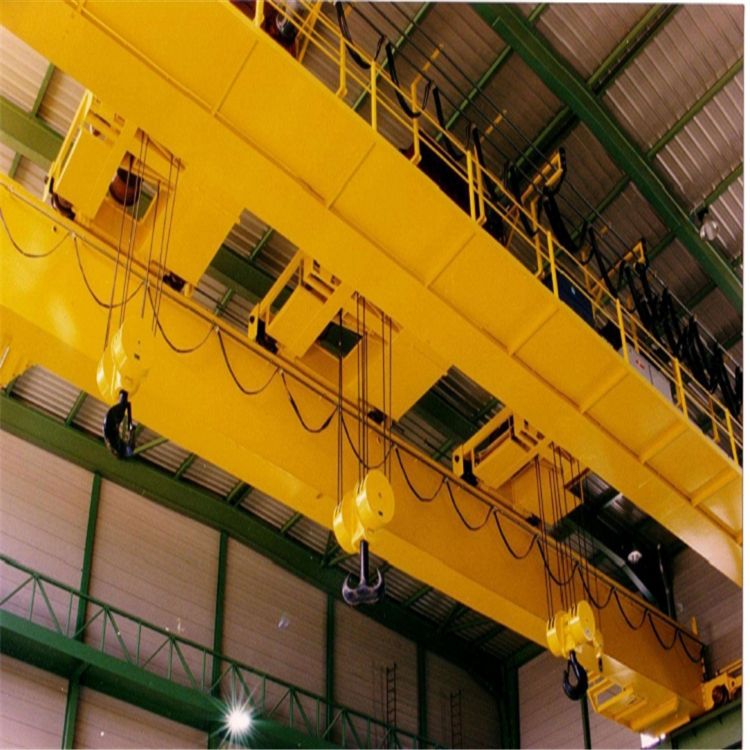

Brief introduction of   2-50 ton double girder bridge overhead crane



1. Operating cabin is divided into 3 type-open, closed and air–conditioned types.



2. The platform for cabin is divided into 3 types according to the entrance poison-side, end or top entrance.



3. The dimension Ho is the extra height added from crane bumper.



4. The crane is suitable for both operating environments-indoor and outdoor. When placing order, user should point the highest and lowest temperature around crane as well as the power resource.



5. The overload limiter and the big screen indicator and some sorts of protective devices are added, crane is used with safe operation.



We design and manufacture custom-built cranes according to customer specifications. When you order the cranes from us, please give us the detail of your requirements and your using situation, we will be the one to ensure what we offer is totally according to your requirement. And our components are designed with the idea of adjustment free and according to the lift time of the crane, so you can always rely on the functioning of the cranes.

2. Parameters of   2-50 ton single/double girder bridge overhead crane

lifting capacity(t)		2	5	7.5	10	15	20	25	32	50
span(m)		8-35
max lifting height(m)		20						14	18	14
main lifting speed(m/min)	A5	12.6	12.6	8.5	8.5	7.9	7.2	8.5	7.5	5.9
	A6	15.6	15.6	13.3	15.6	13.3	13	12.5	9.5	7.8
trolley travelling speed(m/min)		37.2	37.2	43.8	37.2	43.8	44.6	44.6	42.4	38.5
main lifting motor(m/min)	a5	13	13	17	13	17	26	26	42	55
	q6	15	15	22	15	22	37	45	55	75
trolley motor(kW)		2.5	2.5	2.5	1.8	2.2	3.7	3.7	5.5	7.5
work duty		A5-A6
power supply		AC 220-690V,50Hz







Manufacturing Process of Overhead Crane



Questions:

• 1. How long is WeiHua products warranty?

  We afford 12 months of quality warranty period after customers buy from us.


• 2. What's the warranty content?

  We will provide free onsite service on repairing and replacing malfunctioning or damaged parts which are proved to be our manufacturing quality defects within the warranty period.


• 3. What if is out of warranty period?

• (1) We will provide chargeable onsite service on repairing and replacing malfunctioning or damaged parts after the warranty period.

• (2) We will supply dispensable parts preferentially for a long period.

• (3) We will keep in touch with customers to track and survey of the product.
