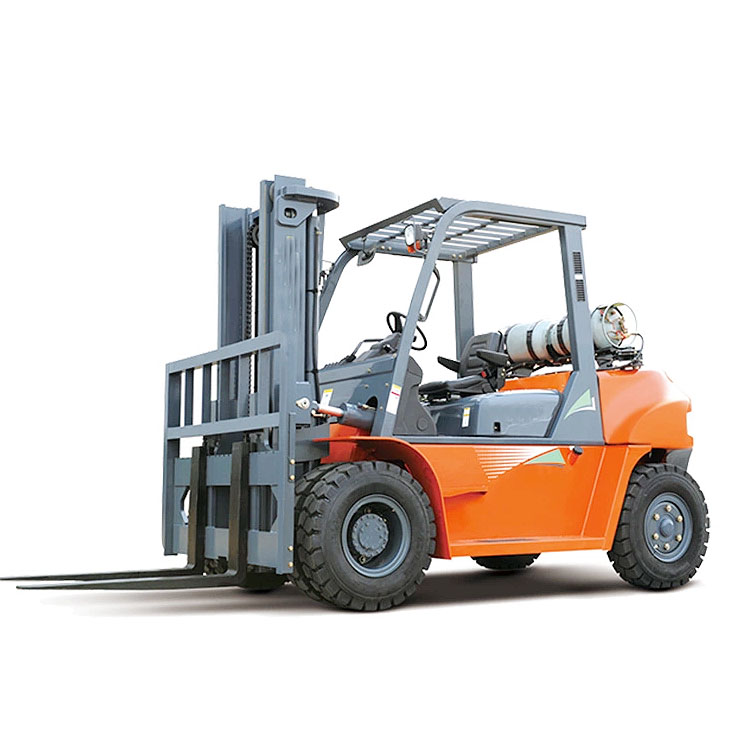

FORKLIFT CPC30K

Product Description

Diesel fork lift Main Specification:

Standard China Xinchai or Quanchai 490 engine, optional Japan Isuzu, Yanmar and Mitsubishi engine;

Automatic transmission;

Standard 2-stage 3000mm mast, optional 3-stage 4500mm mast and others;

Standard 1070mm fork, optional 1220mm, 1370, 1520mm, 1820mm and 2000mm forks;

Optional side shifter, fork positioner and other attachments;

Standard pneumatic tire, optional solid tire and non-mark tire;

Warning and rear light;

Special-big radiator for top-hot area.

SPECIFICATIONS FOR 3.0 tons Diesel Fork lift Truck
General	Brand		WECAN
	Model		CPCD30FR
	Rated capacity	kgs	3000
	Load center	mm	500
	Power type		Diesel
	Transmission		Automatic
Dimensions	Lifting height	mm	3000
	Free lifting height	mm	80
	Turning radius	mm	2500
	Overall length	mm	3800
	Overall width	mm	1230
	Overall height  (mast lowered)	mm	2110
	Overall height (mast raised)	mm	4270
	Overall height (overhead guard)	mm	2110
	Fork length	mm	1220
	Fork width	mm	125
	Fork thickness	mm	45
Performance	Max. driving speed (with/without load)	km/h	18/20
	Max. lifting speed (with load)	mm/s	400
	Max. traction (with/without load)	kn	15.5/10.5
	Gradeability (with/without load)	%	15/20
	Tilting angles (forward/backward)	°	6/12
	Service weight	kg	4320
Engine	Engine model		Xinchai/Quanchai 490 engine
	Power	kw	40/39
		hp	54.4/53
	Rated speed	rpm	2650
	Displacement	L	2.67
Wheel	Front overhang	mm	465
	Wheel base	mm	1750
	Front tread	mm	1000
	Rear tread	mm	970
	Front tire		28*9-15
	Rear tire		6.50-10

Diesel fork lift Main Features

• Powerful engine
• Low center of gravity, small turning radius, more stable and reliable
• Comfortable seat for long-time operation
• Safe overhead guard
• Rear light for working in the dark
• Dual air filter
• Streamline balance weight

Detailed Image

Diesel fork lift -Engine

China top brand engine: Xinchai brand or Quanchai brand;

Optional Japan Yanmar, ISUZU, Mitsubishi, Nissan engine and so on.

Diesel fork lift-Automatic transmission

 With the technology TCM from Japan, the transmission is made up of two parts: hydraulic torque converterand powered gearshift transmission with 2 gears - forward and reverse.

Optional Lifting Height

Standard 2-stage 3000mm mast, full-free lift mast is optional;
Optional 2-stage 3300mm, 3500mm, 4000mm, 5000mm mast,
3-stage 4500mm, 5000mm, 5500mm, 6000mm, 7300mm, 8000mm mast.

Other details

Plastic sealed cover making forklift more clean and good-looking;
Rear light for working in the dark;
Iron engine cover making longer service life;
Streamline balance weight looks more beautiful.

Our Company

About Us

TAIAN WECAN MACHINERY CO. , LTD. has become a private enterprise by the recombination of No.9347 military enterprise. We have two factories, in Heze city and Taian city. We have the accumulation of military technology for 40 years, and our company owns the ability and quality of manufacturing, like the machining, welding, stamping, coating and precise mould making.

Our company has the advanced computer designing center and outstanding technology-development team, and we also have the independent import and export qualification, CE International Quality and Safety Certificates. The main products are forklift, skid steer loader and container cranes , which are exported to more than 50 countries and areas, such as Brazil, Argentina, Australia, Russia, Algeria, South Africa, Iran, Kazakhstan and so on. With the motto of "Easy Work, Easy Life", our company has formed the featured operation pattern, and we will create a great and trustworthy machinery brand in all over the world.

Certification

Packing and Shipping

Our Service

Pre-Sales Service

 ● Inquiry and consulting support.
● Photos&Videos for your order before shipment.
● Factory visiting.

After-Sales Service

 ● Training how to use the machine.
● Whole life-time supply for spare parts.
● User manual and details videos or CD if you requested.
● Overseas customer visiting.

Warranty

 ● One year guarantee for whole machine main parts.
● 24 hours technical support by email.
● sending all filters and tool boxes for your maintainance spare
