LD Type 1 ton single girder overhead crane

design concept ld model single girder overhead crane

Design drawing of ld model single girder overhead crane?

Warm tips:

In order to save cost and time for you,we need your provide below information:
1. Which kinds of overhead crane do you need?
2. FOB or CIF price?(If CIF price,tell us your destination port)
3. Quantity?(set)
4. Lifting capacity?(ton)
5. Lifting height?(m)
6. Span?(m)

7. Which kind of material does if lift?
8. Working voltage?(V,HZ,Phase)
9. Working environment?
10. How many hours the crane works one day?
11. Any other requirement do you need?

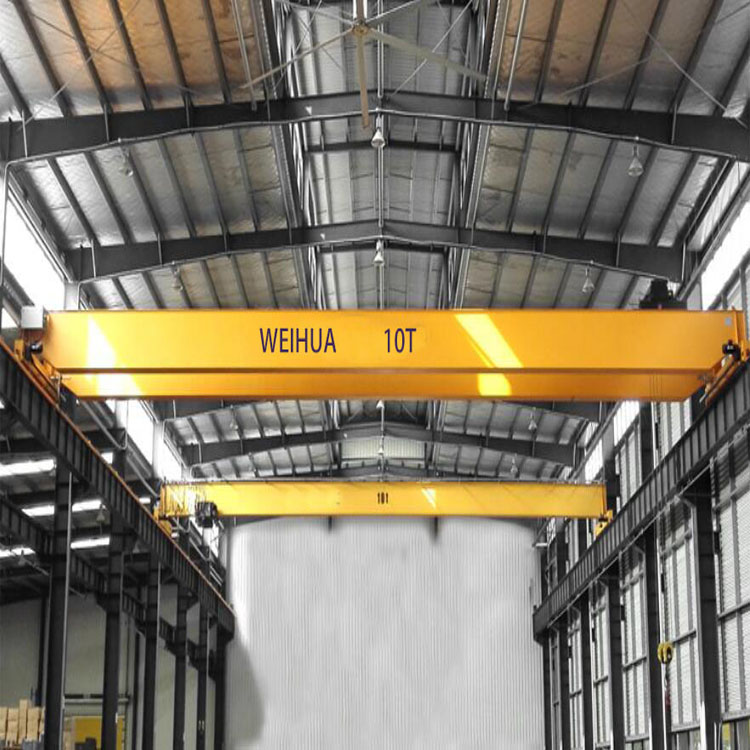

Display of ld model single girder overhead crane?



Specification details of ld model single girder overhead crane?

Item	Single girder overhead crane	Double girder overhead crane
Loading capacity	5 ~ 320t
Lifting height	6 ~ 30 m or customized
Lifting speed	Variable frequency speed, it varies with the lifting capacity.
Span	3~35.5 m
Lifting mechanism	Electric hoist	Winch trolley
Working class	A5 ~ A8
Working temperature	-20 ~ +40 ℃
Power supply	AC-3Phase-220/230/380/400/415/440V/480V/600V
Control voltage	DC-36 / 48V
Motor protection class	IP54 IP55 IP65
Control way	Cabin, wireless remote, pendant push button.
Safety device	Buffer,current overload protection,overload device,power failure protection
Application area	Factory,workshop,warehouse,power station,logstic,etc.
Painting color	Clescrane white, yellow or Customzied

Other type of ld model single girder overhead crane?

	LDH Series single girder overhead crane Loading capacity: 1 ~ 16t Lifting height: 6m,9m,12m,15m,18m,24m,30m Span: 7.5m~25.5m Working class:  A3,A4 Working temperature: -20°C ~ +40°C
CHD Series double girder overhead crane Loading capacity: 1 ~ 100t Lifting height: 6m,9m,12m,15m,18m Span: 7.5m~35.5m Working class: A5,A6 Working temperature: -20°C ~ +40°C

Customer Focus on ld model single girder overhead crane?

Trade terms	We can accept T/T,L/C,Credit card,Paypal,Trade assurance,Secure payment,etc.or as your demands
Delivery time	Within 15 ~ 30 days after receiving your deposit
Products certificates	CE,BV,ISO,SGS,CUTR,etc. or as your demands
Sales service	1.Pre-sales:provide professional design solution based on your demands; 2.Middle-sales:Regularly update production progress; 3.After-sales:International installation and maintenance engineers are ready to go abroad any time.
Our advantage	1.China Top 3 crane, hoist and winch supplier with five factories to offer production and design service; 2.European cranes and hoists are available.; 3.Professional quotation and solution are offered within 24 hours; 4.Customized products to meet clients' customized requirements.

Brief Description of ld model single girder overhead crane?

General descrption

This crane is composed of main beam, end carriage, electric hoist(or you can choose chain block), electric power transmission device and operation room(as your demand).  There are three control method: Pendent line(included); Wireless remote control; Operation room And the operational room which has open model and closed model and can be installed on left or right side according to the practical situation. And the direction of entering has two ways, sideway enterance and end surface enterance, in order to satisfy the users' choice in different conditions.

Application

This crane is usually used indoors, such as workshop, plant, stockyard, etc. to lift goods. It is prohibited to use the equipment in the combustible, explosive or corrosive environment.

ld model single girder overhead crane Company View

Clescrane System is a professional customized design ,produce and install crane equipments manufacturer. Our group produce crane equipments with more than 60 years experience in crane industry. At presently, our factory mainly design and produce overhead crane(Single girder overhead crane, Double girder overhead crane, Explosion-roof overhead crane, European style overhead crane, Metallurgical overhead crane), gantry crane,  jib crane, hoist, winch, etc. Our products have been exported to USA, India, Pakistan, Bengal, Philippine, Australia, Malaysia, Russian, etc. more than 30 countries and regions. All crane equipments have passed CE,BV,SGS,ISO,GOST etc. certificates and our products can be customized design according to our clients’ demands.

ld model single girder overhead crane Factory View

About us :
> Since 1988,more than 60 years crane, hoist and winch produce Experience;
> The only designated supplier for China War Industry and Aerospace Lifting Equipment;
> Asian biggest crane production independent workshop with 40,000 square meters;
> 6S management system with strict quality control;
> Experienced and professional technical team, 361 in technique and 42 with senior technician titles, supply the most suitable solution for you.

Standardized management of production processes:



Company introduce:

From 1988 to the present, Weihua Group started from an area of less than 3 acres, 100000 yuan investment in the workshops to the current development of The employees is more than6800, the whole coverage production base of large crane is 3420000 square meters. WEIHUA annual sales reached 1 billion yuan in 2006. Won social-wide recognition and praise by credit management and good service, took the lead go through the ISO9001 quality certification in the local area and same industry by its strict quality management and stable product manufacturing quality, WEIHUA initially forms the enterprise culture, enterprise image and widely brand influence with Weihua characteristics.

Further more, as the designated supplier of Jiuquan Satellite Launch Base, Weihua accelerated the launch of Chang'e successfully.

WEIHUA founded China’s first crane design R & D team and there are 500 personnel now, developed the anti-swing technology independently and has obtained more than 100 patents. Weihua has been the post-doctoral scientific research workstation of Henan Province for four consecutive 4 years. Weihua has its own independent laboratory and has passed the CNAS certification, it is the only one industrial crane production and testing base appointed by government.



 Packaging and Delivery of the Finished Products

Question:

• 1. What's the information should I provide when inquiry?

  More details or drawings, better.

  A: Lift capacity B: span C: lift height D: power sourceor other specials you give us will be more appreciated.

• 2. What's the information should I provide when inquiry?

  More details or drawings, better.

  A: Lift capacity B: span C: lift height D: power sourceor other specials you give us will be more appreciated.
