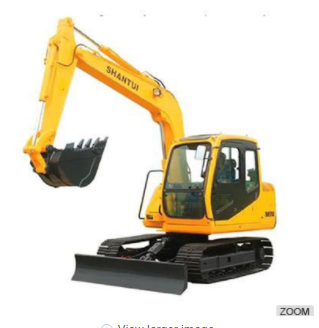

SE80 crawler excavator made in china

Original imported engine with Tier 2 emissions, conducive for energy saving and environmental protection. the engine features a radial seal air cleaner and air pre-cleaner, effectively extending the engine’s service life. Equipped with a standard fuel pump.

Original imported hydraulic components have stable and reliable quality and high working efficiency. Strengthened working devices feature up to 360° swing in small spaces with a radius of up to 3.7 m. This excavator has strong adaptability in mining environments. New cab design greatly increases field of vision.

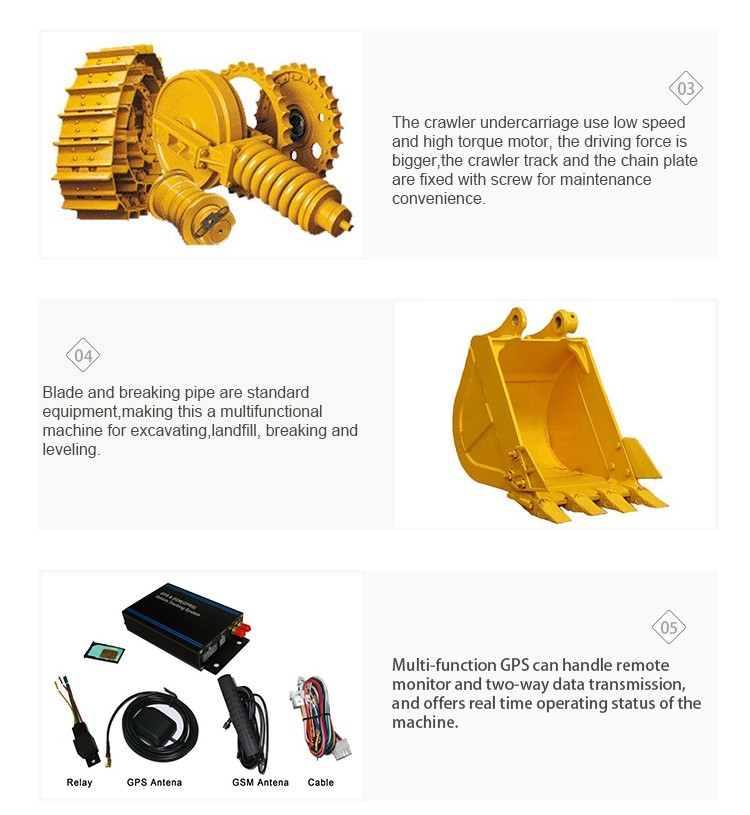

Technical Features



Performance Paramete



SE80  Technical specifications:	Minimum ground clearance: 362 mm	Overall length: 6331 mm
	Operating weight: 7.8 t	Overall height: 2504 mm
	Ground pressure: 33.71 kPa	Overall width: 2300 mm
ENGINE	Model	Cummins B3.3
	Type	4-cylinder in line, natural intake, water-cooled.
	Quantity of cylinders	4
	Bore x stroke	95 x 115 mm
	Displacement	3.3 L
	Power output	45 kW/2200 rpm
	Maximum torque	214 N·m/1600 rpm
HYDRAULIC SYSTEM	Pump	Imported
	Type	Variable double-piston pump
	Maximum discharge flow	2 x 74.8 L/min
	Boom, arm and bucket	27.5 MPa
	Travel circuit	27.5 MPa
	Swing circuit	23.5 MPa
TRAVEL SYSTEM	Travel motor	Variable axial piston
	Travel brakes	Lubricated double-disc
	Parking brake	Pressure release
	Travel shoes	2 x 40
	Drawbar pulling force	67.7 kN
	Travel speed	3.14~5.26 km/h
	Gradeability	70% (35°)
	Ground clearance	361.5 mm
CONTROLS  & CABIN	Cabin	New ergonomic cab design strengthens the structure of the entire stamping with such features as:strong impact resistance, vibration damping pads, vibration absorption, comfortable seat with broad vision,smooth contour lines of the outer surface, sturdiness & durability.
	Controls	Two joysticks, two foot pedals, manual-/electronic-controlled throttle.Functions of two joysticks: digging & swinging.
	Boom cylinder	115 x 65 x 864 mm
	Arm cylinder	100 x 60 x 867 mm
	Bucket cylinder	90 x 55 x 710 mm
SWING SYSTEM	Swing motor type	Swash plate piston motor
	Brake	Pressure release
	Parking brake	Lubricated double-disc
	Swing speed	11.2 rpm
	Tail swing radius	1750 mm
BUCKET	Bucket capacity	Backhoe bucket 0.32 m3 (SAE)
	Number of bucket teeth	5
	Bucket width	820 mm
	Arm length	1.65 m
	Maximum digging reach/Maximum digging reach at ground level	6.447 m/6.292 m
	Maximum digging depth/height	4.006 m/6.581 m
	Maximum dumping height	4.535 m
	Minimum swing radius	2.383 m

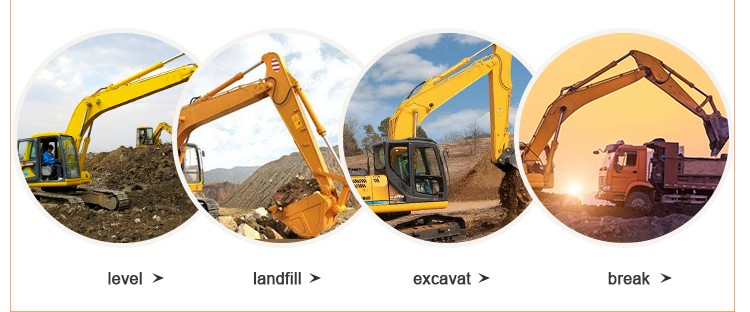

Application

Trading information

Our Services

 Warranty: We grants our clients a 12 month or 2000 hours warranty for any machines purchased from us. During the warranty period, in case the defect of material or workmanship has occurred with spare parts in normal operation, the defective parts will be repaired or replaced free of charges at our discretion.

   Spare parts: We is dedicated to provide our clients with genuine spare parts with the highest quality, exact fitness and appropriate function. With our global distributor network, you are guaranteed with fast deliveries and service, wherever you are. Please submit your spare parts requires to us and list products name, model equipment serial number, description of required parts. We guarantee that your requires will be handled quickly and appropriately.

   Installation & Maintenance: We is able to provide you with the overall installation of complicated machinery and equipment, allowing you to start the normal operation of generators set and engine immediately. After installation, we will make inspection of the whole machine, operate equipment and provide you with testing date reports of installation and operation.

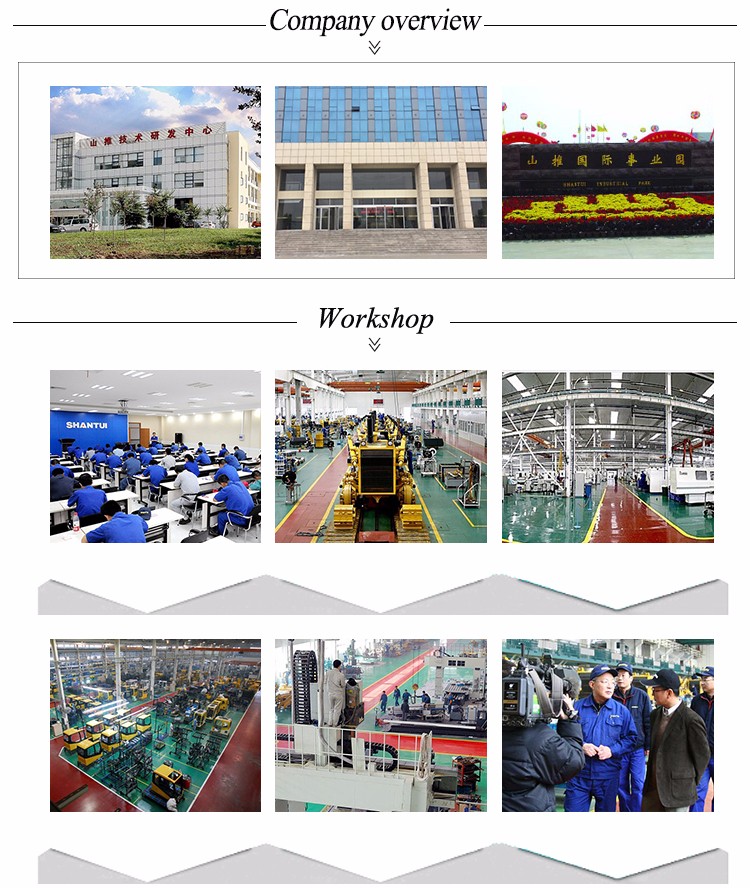

Company Information
