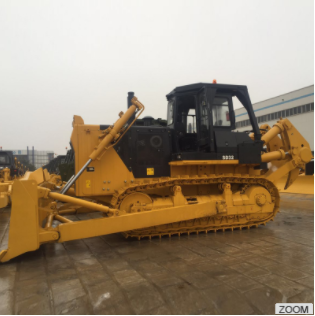

Shantui SD32 Bulldozer for Sale



The SD32 provides a showcase for Shantui’s prowess with high-efficiency push factors. These medium-sized, but heavy-duty machines designed for earth-moving projects get the biggest, toughest jobs done quickly and efficiently. SD32s are equipped with a hydraulic drive system with hydraulic control technology and an advanced structure, which provide reliable performance and convenient and flexible operation.

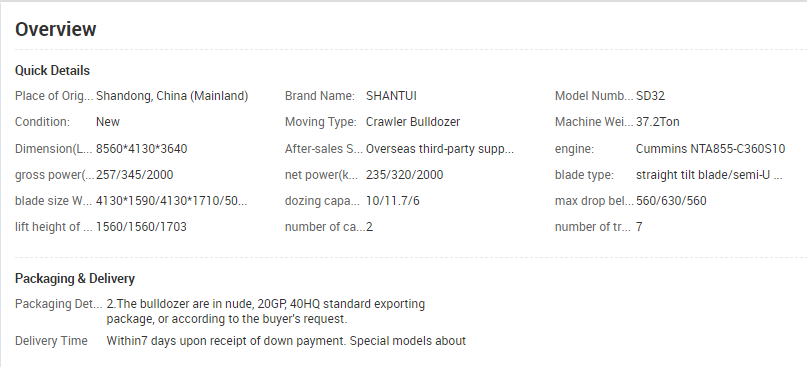

Performance Paramete



SD32  Technical  specifications:	Minimum ground clearance: 500 mm		Minimum turning radius: 3.8 m
	Operating weight: 37.2 t		Gradeability: 30°
	Ground pressure: 0.105 MPa		Track gauge: 2140 mm
ENGINE	Model & type	Cummins NTA855-C360S10; In-line, water-cooled;  4-cycle, overhead valve direct injection,  turbocharged diesel
	Rated revolution	2000 rpm
	Rated power	235 kW
	Cylinder number-bore	6—139.7 x 152.4 (mm x stroke)
	Piston displacement	14010 ml
	Min. fuel consumption	217 g/kW·h
	Maximum torque	1440 N·m@1400rpm
POWER TRANSMISSION SYSTEM	Torque converter	3-element, 1 stage, 1 phase
	Transmission	Planetary gear, multi-disc clutch, hydraulically connected,  forced lubrication
	Main drive	Spiral bevel gear, splash lubrication,  single-stage speed reduction
	Steering clutch	Wet, multi-disc, spring loaded,  hydraulically separated, hydraulic control
	Steering brake	Wet, floating, direct on-off hydraulic  inter-linking operation
	Final drive	2-stage speed reduction of spur gear,  splash lubrication
TRAVELSPEED	Gear	1st	2nd	3rd
	Forward	0~3.6 km/h	0~6.6 km/h	0~11.5 km/h
	Reverse	0~4.4 km/h	0~7.8 km/h	0~13.5 km/h
UNDERCARRIAGE SYSTEM	Type	Swing type of sprayed beam,  suspended structure of equalizer bar
	Carrier rollers	2 each side
	Track rollers	7 each side (single flange 5, double flange 2)
	Track type	41 each side
	Width of track shoes	560 mm
	Pitch	228.6 mm
HYDRAULIC SYSTEM	Maximum pressure	14 MPa
	Pump type	Gear pump
	Discharge  (at revolution of 2000 rpm)	355 (1795 rpm) L/min
	Bore of working cylinder  × no. (double-acting type)	140 mm × 2
BLADE	Blade type	Straight-tilt	Angle	Semi-U blade
	Dozing capacity	10 m3	6 m3	11.9 m3
	Efficiency (Theoretical value 40 m)	580 m3/h	350 m3/h	690 m3/h
	Blade width	4130 mm	5000 mm	4130 mm
	Blade height	1590 mm	1140 mm	1710 mm
	Maximum drop  below ground	560 mm	630 mm	560 mm
	Maximum tilt adjustment	>100 mm	>500 mm	>1000 mm
	Weight of blade	4520 kg	4932 kg	4924 kg
RIPPER  (OPTIONAL)	Maximum digging depth of 3-shank ripper	842 mm
	Maximum lift above ground	883 mm
	Weight of 3-shank ripper	3802 kg
	Maximum digging depth  of single ripper	1250 mm
	Maximum lift above ground	965 mm
	Weight of single ripper	3252 kg

Product Description

Optaional Equipment

 Shantui's value proposition is greatly enhanced by the fact that we produce our structural parts for our machines,including accessories such as blades,rippers,tract assemblies and cabs.We also offer a variety of excellent engine choice for the bulldozer series.





Application



 Pushing,  backfilling and other earthworks.





Payment



T/T  WESTERN UNION  L/C  Trade Assurance

Trade Assurance  which granted by Aliababa.com.

Protect your payment to make sure that we deliver on time and manufacture quality products as

required.





Packaging & Shipping

Packing: The bulldozer are in nude, 20GP, 40HQ standard exporting package, or according to the

buyer's request.





Delivery: Within7 days upon receipt of down payment. Special models about 30days.
