Building material China cellular glass foam board/sheet insulation block manufacturer
Payment Terms: TT or LC
Ref Price : 5-10 USD/METERS
Sino-Sources Service Pledge
-
Quality Product
-
Credit Purchasing
-
Credit Rating
-
Timely Delivery
-
Order On-line Tracking
-
Credit Services
Quick Details
-
Place of Origin：Tianjin China (Mainland)
-
Brand Name：wmdtrade
-
Model Number：Foam Thermal Insulation
-
Type：Other Heat Insulation Materials
-
Name：Foam Cellular Glass Insulation Material
-
Color：Black
-
Application：Insulation
-
Density：120-180kg/m3
-
Thickness：30-150mm
-
Temperature：-268~482 C
-
Length and Width：600*600mm or 620*500mm
-
Thermal conductivity：0.02-0.078
-
Port：Tianjin xingang
Foam glass description：
Foam glass is a new inorganic insulation material with glass as the main raw material, made through adding appropriate blowing agent, heating and roasting by high temperature tunnel kiln, and at last annealing and cooling process, which has a uniform independent airtight air-gap structure. It completely retains the chemical stability of inorganic glass , with properties of low volume density, low heat conductivity, anti-moisture permeability, water repellence, non-combustibility, no virulence variation,rodent proof, high mechanical strength,easy processing,capability of resistant all chemical erosion except hydrogen fluoride.
Foam glass board:
Quick Details:
|
Type |
Other Heat Insulation Materials |
|
Product Name |
foam glass insulation fire protection |
|
Substrate |
Glass |
|
Brand Name |
IKING |

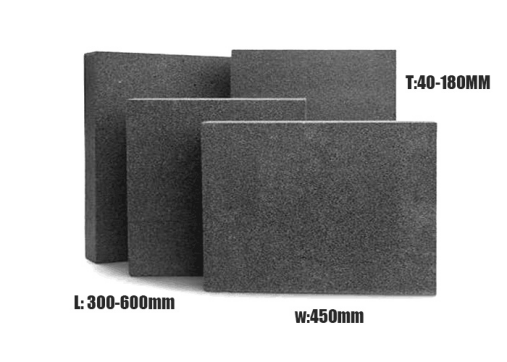

Specification Range
|
Item |
Unit |
Index |
|
length |
mm |
300 or 600(±2) |
|
width |
mm |
450(±2) |
|
thickness |
mm |
40-180(±2) |
Technical Parameters
|
Property |
Unit |
data |
|
|
Ave.Value |
Kg/m3 |
120-240 |
|
|
Thermal |
Ave.Value |
W/(mk) (10℃) |
0.039-0.065 |
|
Hight Single Value |
W/(mk) (10℃) |
0.042-0.07 |
|
|
Conductivity |
Ave.value |
Mpa |
0.5-2.4 |
|
Hight Single Value |
Mpa |
0.35-1.5 |
|
|
Chloride Content |
ppm |
≤25 |
|
|
Water Absorption |
vol% |
≤0.5 |
|
|
Service Temp |
℃ |
212 |
|
|
Lineal Expansion Coefficient |
1/℃ |
9*106 |
|
|
Compressive strength |
kPa |
CS≥600 |
|
|
Bending strength |
kPa |
BS≥450 |
|
|
Tensile strength perpendicular to faces |
kPa |
TR≥100 |
|
|
Point load |
mm |
PL≤1 |
|
|
Service temperature limits |
℃ |
-260-430 |
|
Application:
1. Tank Base Bearing and Insulation for Big Volume Tank
2. Low Temperature and Cryogenic Piping, Vessel, tank and Equipment
3. Underground or Aboveground Steam Piping and Chilled Water Piping
4. Chilled or Hot Water Suppling Piping
5. Offing Oil Platform
6. Circulation and Dual Temperature System
7. Heating Piping and Equipment
8. Hot Oil or Asphalt Tank
9. Liquid Heat Exchanger System
10. Insulation & Acid-resistant Lining System for Chimney in Power Plant
11. Insulation & Energy-saving for Building
WanMaiDe estabished in 2001, a leading manufacturer and exporter of Glass Wool, Rock Wool, Rubber Foam, Foam Glass,Extrude Polystyrene/XPS, Phenolic foam board insulation in China. After more than 20 years' development, we totally have 10 producing lines for glass wool insulation,5 producing lines for rock wool insulation and more than 30 producing lines for rubber foam insulation.
We had mad OEM production for WANMAIDE which are popular due to the high quality and competitive price all over the world.
