Quick Details

• Condition:

• New

• Type:

• Tile Forming Machine

• Tile Type:

• Colored Steel

• Use:

• Roof, ceiling

• Production Capacity:

• 0-35 m/min

• Place of Origin:

• Hebei, China (Mainland)

• Brand Name:

• QJ

• Model Number:

• 70*30 23*30

• Power(W):

• 5.5KW

• Voltage:

• 380V

• Dimension(L*W*H):

• 5.5M*1M*1.3M

• Weight:

• 3.5T

• Certification:

• CE ISO9001:2008

• Warranty:

• 18months

• After-sales Service Provided:

• Engineers available to service machinery overseas

• Item:

• c channel machine

• Machine Color:

• blue

• Control System:

• THINGET integrated circuit

• Quality System:

• CE;ISO9001:2008

• Motor Power:

• 5.5KW+4KW

• Processing Speed:

• 0-35m/min

• Thickness:

• 0.7-1.2mm

• bearing type:

• standard

• Cutting type:

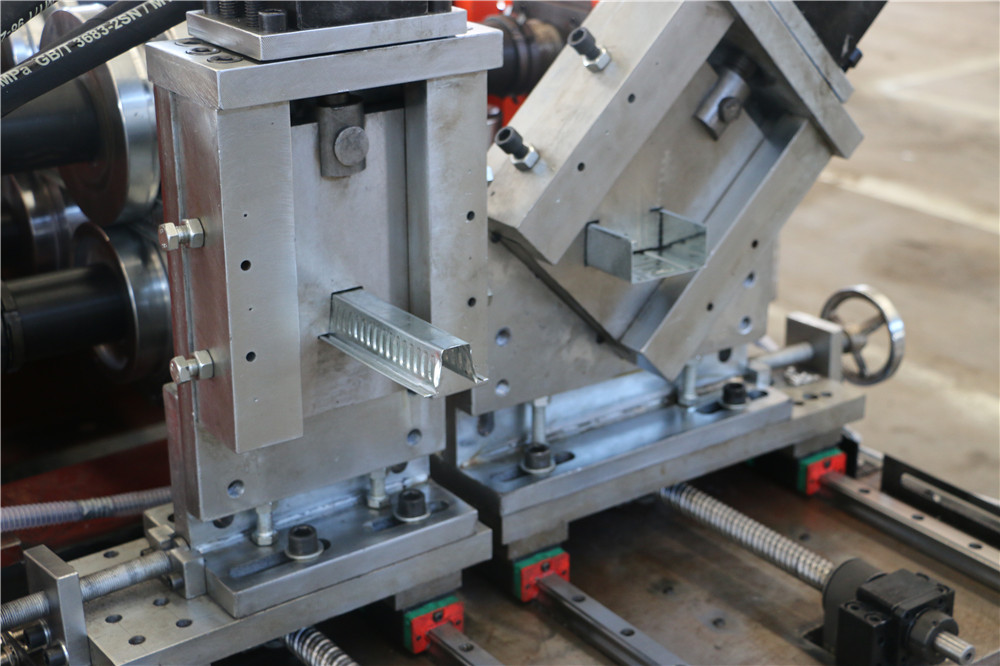

• tracking length to cut

Packaging & Delivery

• Packaging Details

• building material machinery drywall stud and track roll forming machine
  Main machine is nude,the computer control box is packed by wooden carton box.

• Delivery Time

• 30 working days after we get advance payment

building material machinery drywall stud and track roll forming machine



Product Description

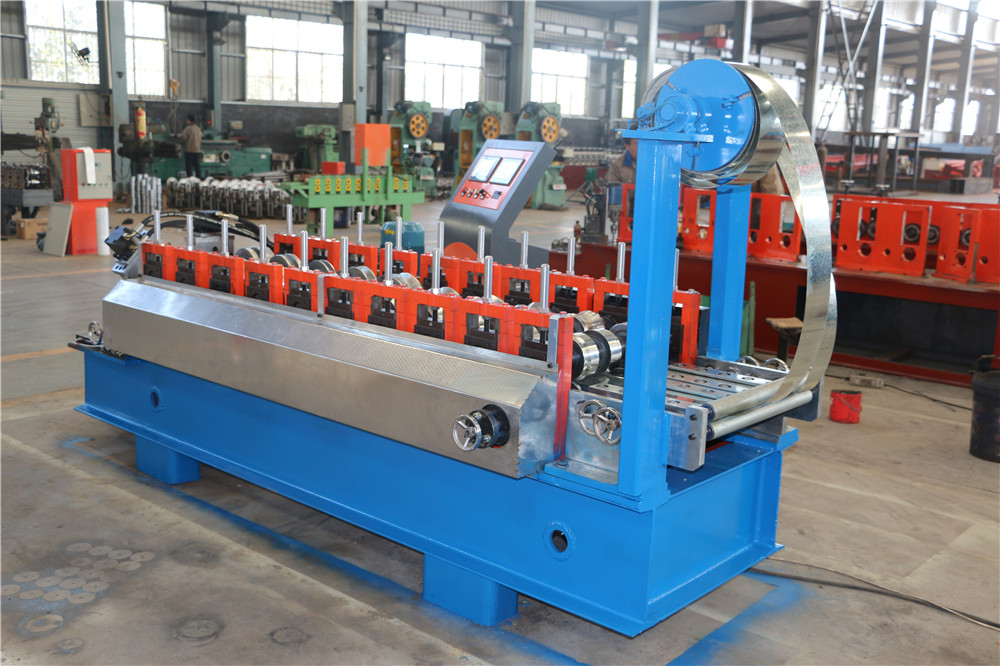

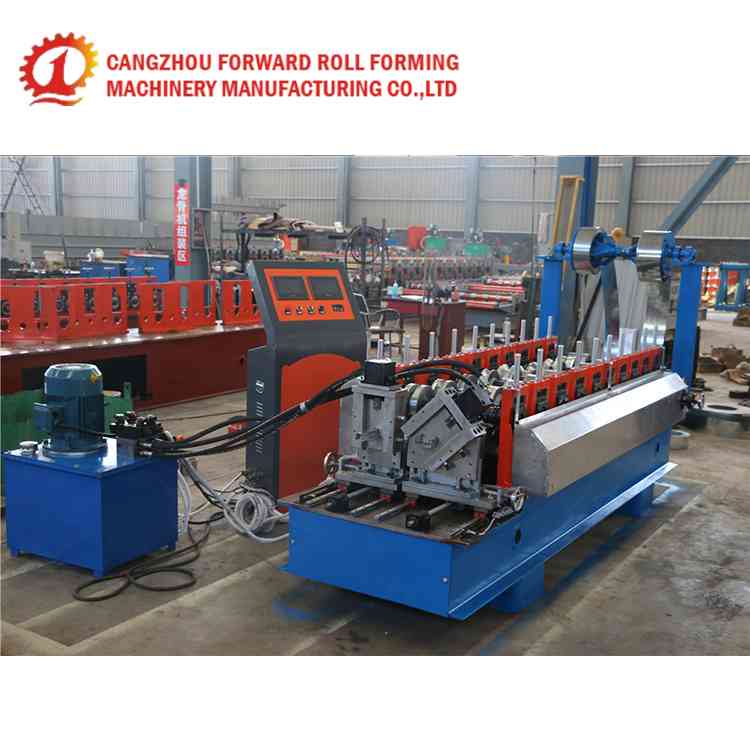

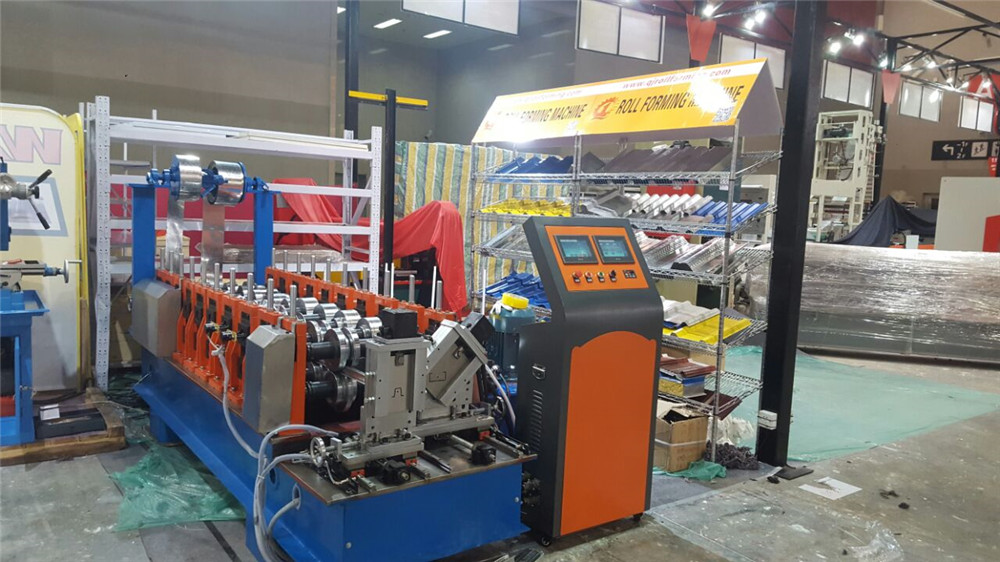

                              CD70*30 Omega23*30 light keel roll forming machine







Technology parameter of Light gauge steel frame roll forming machine ,building structure double profile ligh keel machine manufacturer



No.	Main Parameter of  keel roll forming machine
1	Suitable to process	Color steel plate
2	Rollers	10 rows
3	Dimensions	5500*1000*1300mm
4	Power	5.5+4kw
5	Thickness of the plate	7-1.2mm
6	Productivity	0-35m/min
7	Diameter of the shaft	∅50mm
8	Material of the roller	Cr12 Mov
9	Control system	integrated circuit
10	Material of the shaft	high grade 45# steel ,heated and quenched ,cylindrical grinding

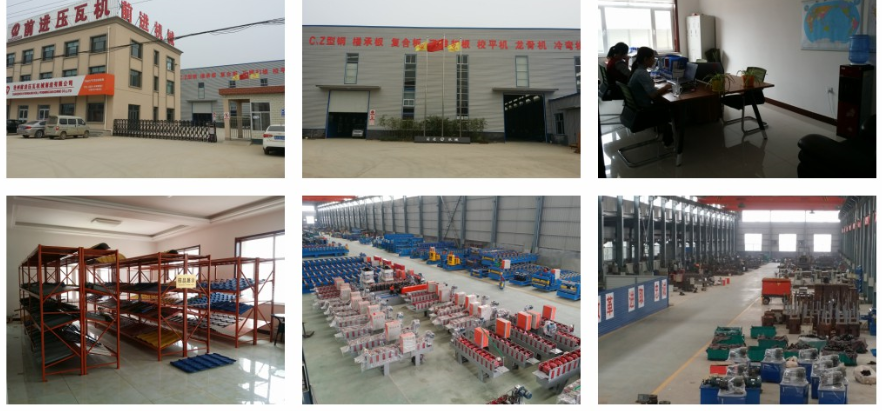

COMPANY PROFILE





Packaging & Shipping





1.We have professional technicians for loading

  Guaranteed the goods load into container without any damage.

2. Transportation : Machines need one 20 feet container to hold

3.Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you.
