CD1 MD1 Electric Wire Rope Hoist
Payment Terms: TT or LC
Ref Price : 1500-18000 USD/SET
Sino-Sources Service Pledge
-
Quality Product
-
Credit Purchasing
-
Credit Rating
-
Timely Delivery
-
Order On-line Tracking
-
Credit Services
Quick Details
-
Product Name：CD1 MD1 Electric Wire Rope Hoist
-
BrandName：WeiHua
-
Lifting Weight：0.25t-32t
-
Lifting Height：6m-45m
Description

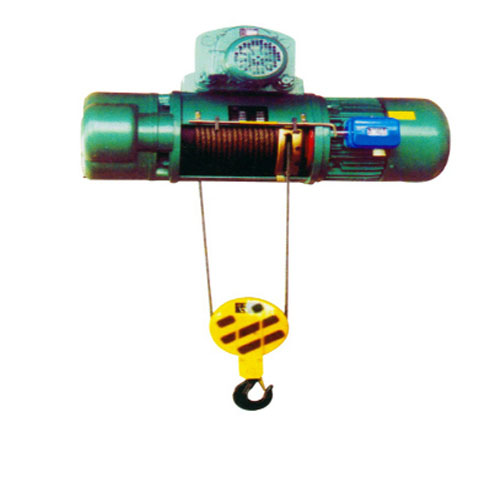

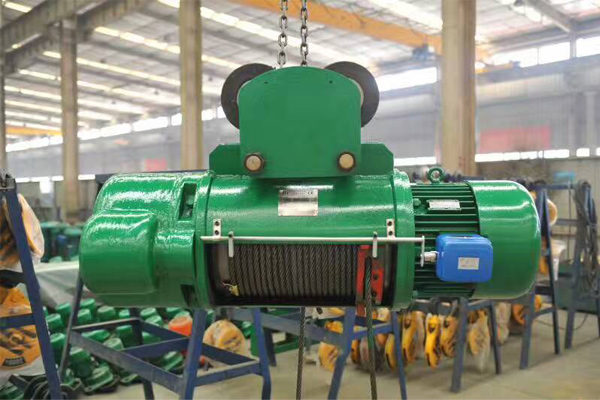

Model CD1/MD1 Electric Wire Rope Hoist is a small-sized lifting equipment, which can be mounted on single beam crane, overhead crane, gantry crane and jib crane. With slight modification, CD1/MD1 wire rope electric hoist can be also used as winch.
CD1/MD1 Electric Wire Rope Hoist is widely used in factories, mines, harbors, warehouses, cargo storage areas and shops. Model CD1 hoist has only one normal speed, which can satisfy normal application. Model MD1 hoist has 2 working speeds: normal and low speed. At low speed, it can do precise loading and unloading, mounding of sand box, maintenance of machine tools.
Specification
|
Model |
Lifting Weight |
Lifting Speed |
Running Speed |
Hoisting Motor |
Running Motor |
Weight |
||
|
t |
m/min |
m/min |
Model |
Power kW |
Model |
Power kW |
kgs |
|
|
CD 1T-12M |
1 |
8 |
20 |
ZD22-4 |
1.5 |
ZDY11-4 |
0.2 |
172 |
|
CD 3T-12M |
3 |
8 |
20 |
ZD41-4 |
7.5 |
ZDY12-4 |
0.8 |
597 |
|
CD 5T-12M |
5 |
8 |
20 |
ZD41-4 |
7.5 |
ZDY21-4 |
0.8 |
597 |
|
CD 10T-12M |
10 |
7 |
20 |
ZD51-4 |
13 |
ZDY21-4 |
0.8 |
1100 |
|
CD12T-12M |
12 |
3.5 |
18 |
ZD51-4 |
13 |
ZDY21-4 |
0.8 |
1200 |
|
CD 16T-12M |
16 |
3.5 |
18 |
ZD51-4 |
13 |
ZDY21-4 |
0.8 |
1200 |
|
CD 20T-12M |
20 |
4.2 |
14 |
ZD52-4 |
18.5 |
ZDY21-4 |
0.8 |
1930 |
|
CD 32T-12M |
32 |
3 |
16 |
ZDx62-6 |
18.5 |
ZDY22-4 |
1.5 |
2950 |
Note: Lifting height can be customized i.e. 6m, 9m, 20m
|
Model |
Lifting Height |
Lifting Speed |
Running Speed |
Hoisting Motor |
Running Motor |
Weight |
||
|
t |
m/min |
m/min |
Model |
Power kW |
Model |
Power kW |
kgs |
|
|
MD 1T-12M |
1 |
8/0.8 |
20 |
ZDS22-4 |
1.5/0.2 |
ZDY11-4 |
0.2 |
199 |
|
MD 3T-12M |
3 |
8/0.8 |
20 |
ZDS41-4 |
7.5/0.8 |
ZDY12-4 |
0.8 |
654 |
|
MD 5T-12M |
5 |
8/0.8 |
20 |
ZDS41-4 |
7.5/0.8 |
ZDY21-4 |
0.8 |
654 |
|
MD 10T-12M |
10 |
7/0.7 |
20 |
ZDS51-4 |
13/1.5 |
ZDY21-4 |
0.8 |
1150 |
|
MD 12T-12M |
12 |
3.5/0.35 |
18 |
ZDS51-4 |
13/1.5 |
ZDY21-4 |
0.8 |
1280 |
|
MD 16T-12M |
16 |
3.5/0.35 |
18 |
ZDS51-4 |
13/1.5 |
ZDY21-4 |
0.8 |
1280 |
|
MD 20T-12M |
20 |
4.2/0.42 |
14 |
ZDS52-4 |
18.5/2.2 |
ZDY21-4 |
0.8 |
1450 |
|
MD 32T-12M |
32 |
3/0.3 |
16 |
ZDx62-6 |
18.5/2.2 |
ZDY22-4 |
1.5 |
2950 |

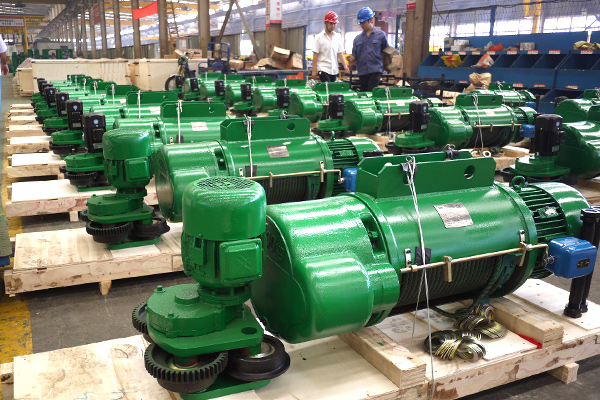

Weihua Group, a leading crane manufacturing company in China, was Founded in 1988. We has been committed to heavy machinery researching and marketing.
The main product covers shipbuilding gantry crane, lifting machinery, port container crane, heavy mining machinery and construction machinery, etc. The whole coverage of Weihua Group is 3,420,000 m2 with 6,800 employees.
Weihua adheres to scientific and technological innovation and owns a 600-people R&D team, 494 patents, CNAS laboratory, etc. For the cranes, Weihua have made many breakthroughs which include anti-sway crane system, CNC high precision positioning crane system, self-climbing crane for wind power maintenance and so on.
In recent years, Weihua cranes have been employed to serve China's Aerospace Engineering projects such as launching of Shenzhou spacecraft, Long March carrier rockets and Tiangong space laboratory. You can also find Weihua products in the fields of manufacturing, metallurgy, nuclear power, railway,port, petrochemical and wind power.
Weihua products also find its places in the global markets and won much praise from108 countries like America, Japan, Russia, Singapore, Korea, Thailand, Malaysia, Mexico, etc.
Our success comes from customers' success. Welcome to Weihua.
