China Top 50 1 ton 2 ton 3 ton 5 ton 10 ton Workshop Mobile Overhead Bridge Crane Manufacturer

Payment Terms: TT or LC

Ref Price : 1000-5000 USD/SET

Supply Capability : 2500 SET

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Quick Details

  • Feature：
    Bridge Crane
  • Applicable Industries：
    Manufacturing Plant
  • Condition：
    New
  • Rated Lifting Moment：
    Desingn
  • Max. Lifting Load：
    20t
  • Max. Lifting Height：
    30m
  • Span：
    7.5-31.5m
  • Place of Origin：
    Henan, China (Mainland)
  • Brand Name：
    WEIHUA CRANE
  • Certification：
    CE GOST ISO SGS
  • Warranty：
    1 Year
  • After-sales Service Provided：
    Field maintenance and repair service
  • Crane feature：
    WEIHUA Overhead Crane 10 tons
  • Type：
    1 ton 2 ton 3 ton 5 ton 10 ton Bridge Crane
  • Lifting speed：
    Variable Speed (standard)
  • Safety devices：
    Equipped
  • Work duty：
    A3-A5
  • Control method：
    Customized

Product Description

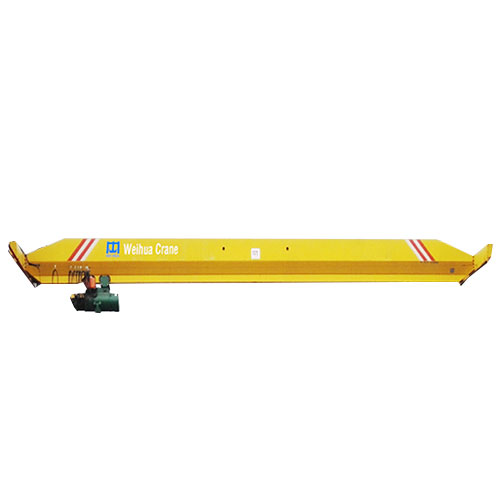

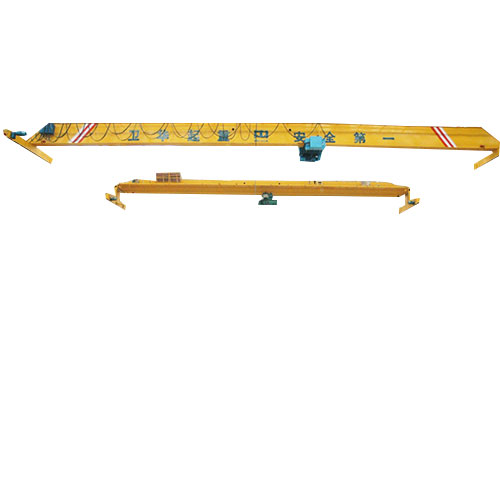

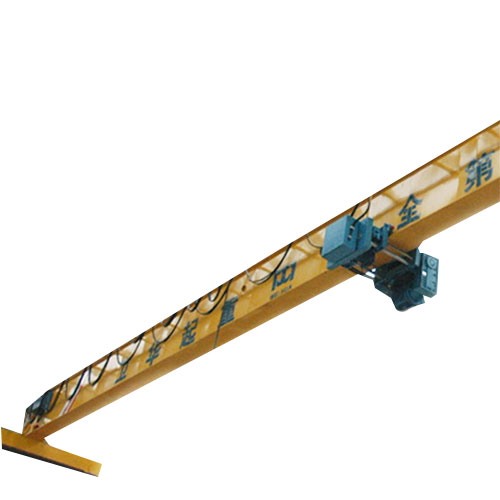

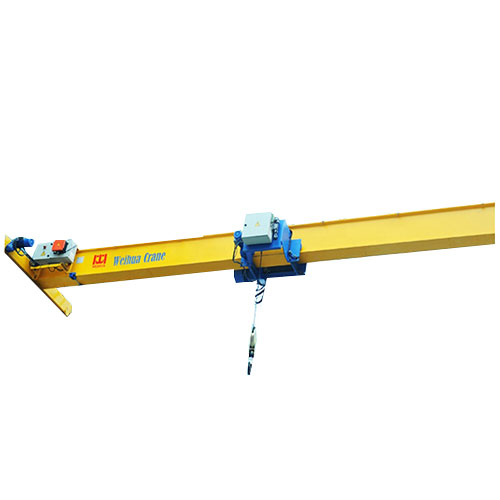

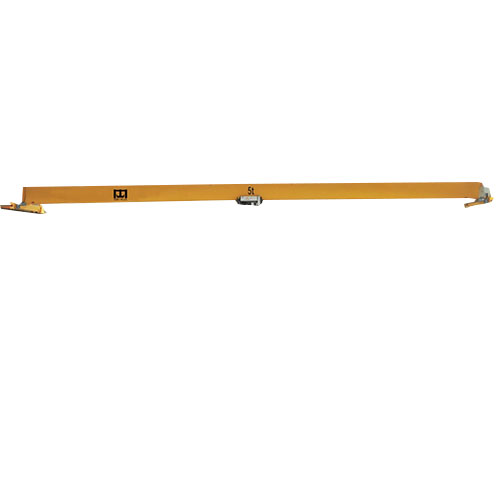

Product Name: WEIHUA workshop overhead bridge crane 10 ton

Lifting Weight: 1ton~20ton

Lifting Height: 6m~24m

span: 7.5m~32m

Advantages:
1.compact structure, resonable layout, safe reliability;
2.convenient maintenance, excellent swivelling function advantages.

Applications:

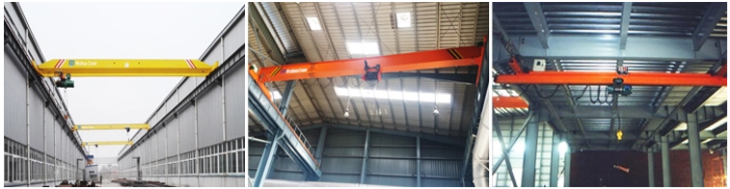

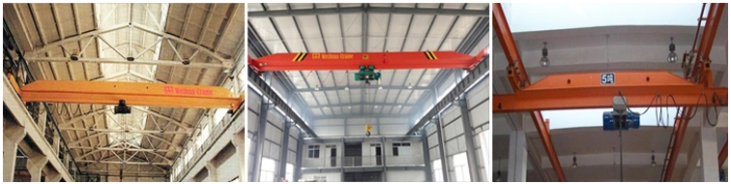

It is the ideal lifing equipment in factories, mines, agriculture, electric power, construction building site, dock and warehouse for installation of the machines, lifting the cargos, loading and unloading the trucks

Features:

1. high working effiency;

2. smooth movement &comfortable operation;

3. convenient maintenance & aesthetic painting;

4. light deadweight, light wheel load and reliable performance;

5. customized: design and manufacture according to your request.

Mechanism:
1. High quality carbon steel Q235B and Q345B;

2. connected by high strength screws;
3. Welding seams are tested by X-ray and ultrasound;
4. Compact structure, small volume;
5. Compact reducer motor drive, step less control, hardened gears and safety disc brake;
6. Good operation performance, step less speed regulating and running smoothly;
7. Painting high quality epoxy zinc-rich primer, and the thickness of oil film is 140μm;

Electric System:
1. Control panel protection degree is IP54;
2. Reasonable components installation, convenient for check and maintenance;
Safety Protection Devices:
Overload limiter, limit switch, interlocking protection devices, buffer, track sweep plate, bus bar protection board, anti-collision device, main disconnecting switch, emergency stop system and motor overload protection.

Specifications of WEIHUA workshop overhead bridge crane 10 ton :

Lifting Capacity t 1 2 3 5 10 16 20
Span m 7.5~31.5 or other special span
Lifting Height m 6, 9, 12 or other special height
Lifting Speed m/min 8 (8/0.8) 8(8/0.8) 8(8/0.8) 8(8/0.8) 7(7/0.7) 3.5 (0.35/3.5) 3.3(0.33/3.3)
Trolley Taveling Speed m/min 20 20 20 20 20 20 20
Crane Traveling Speed m/min 20/30 20/30 20/30 20/30 20/30 20/30 20/30
Work Duty A3, A4 A3, A4 A3, A4 A3, A4 A3, A4 A3, A4 A3, A4
Power 380V, 50Hz or Other

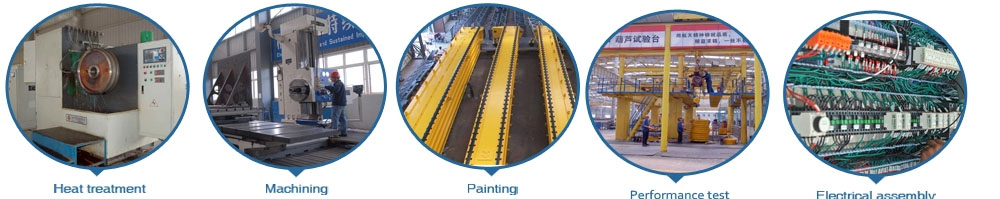

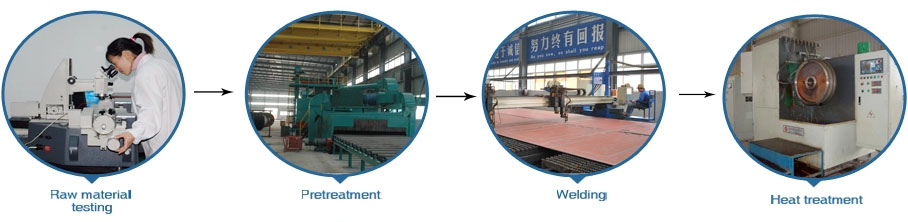

Product Process

Weihua Group, a leading crane manufacturing company in China, was Founded in 1988. We has been committed to heavy machinery researching and marketing.


The main product covers shipbuilding gantry crane, lifting machinery, port container crane, heavy mining machinery and construction machinery, etc. The whole coverage of Weihua Group is 3,420,000 m2 with 6,800 employees.


Weihua adheres to scientific and technological innovation and owns a 600-people R&D team, 494 patents, CNAS laboratory, etc. For the cranes, Weihua have made many breakthroughs which include anti-sway crane system, CNC high precision positioning crane system, self-climbing crane for wind power maintenance and so on.


In recent years, Weihua cranes have been employed to serve China's Aerospace Engineering projects such as launching of Shenzhou spacecraft, Long March carrier rockets and Tiangong space laboratory. You can also find Weihua products in the fields of manufacturing, metallurgy, nuclear power, railway,port, petrochemical and wind power.


Weihua products also find its places in the global markets and won much praise from108 countries like America, Japan, Russia, Singapore, Korea, Thailand, Malaysia, Mexico, etc.


Our success comes from customers' success. Welcome to Weihua.
