Distributor Electric Single Girder Overhead Crane 5 ton 10 ton Made In China

Payment Terms: TT or LC

Ref Price : 1000-10000 USD/SET

Supply Capability : 3000 SET

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Quick Details

  • Feature：
    Bridge Crane
  • Condition：
    New
  • Application：
    Warehouse,workshop, plant,material storage,indoor
  • Rated Loading Capacity：
    1~20t
  • Rated Lifting Moment：
    Design
  • Max. Lifting Load：
    20ton
  • Max. Lifting Height：
    9m-24m
  • Span：
    10.5~31.5m
  • Place of Origin：
    Henan, China (Mainland)
  • Brand Name：
    WEIHUA CRANE
  • Certification：
    CE GOST ISO SGS
  • Control method：
    Pendent,wireless remote control,cabin
  • Lifting speed：
    Adjustable Speed
  • Type：
    Single girder overhead crane for sale
  • Color：
    Yellow,orange,red or the others
  • Warranty：
    12 Months

Product Instruction

Brief Description

Detail Description

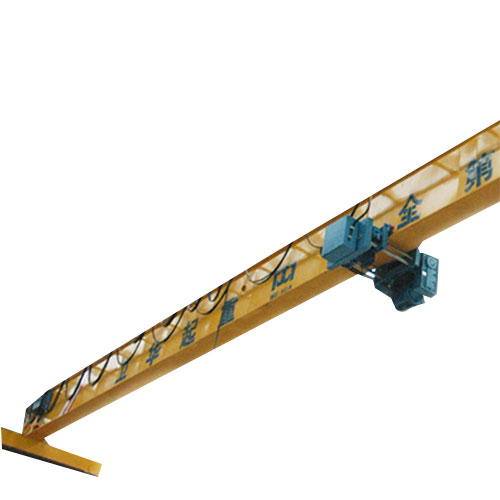

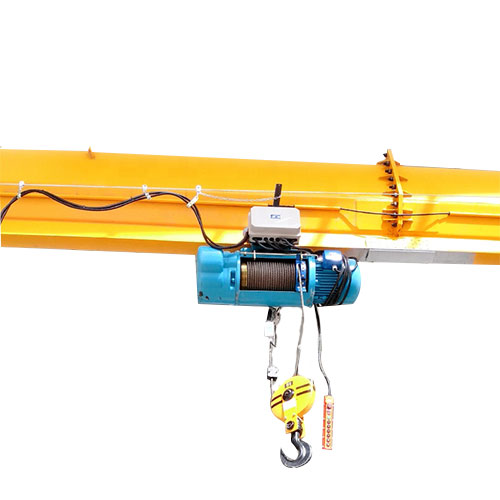

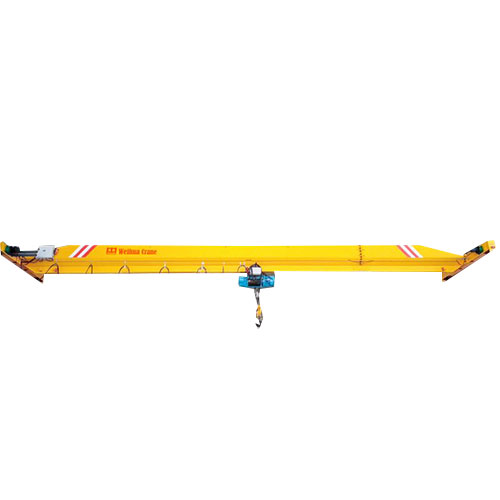

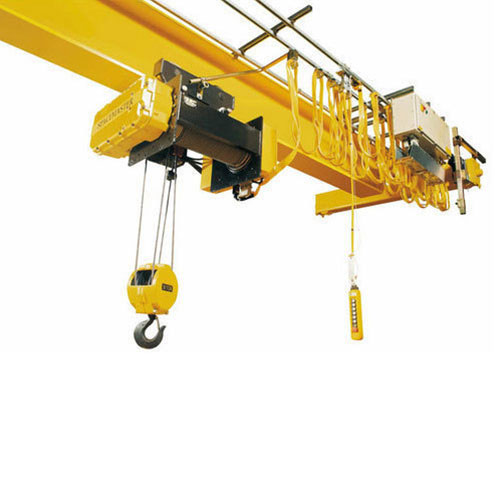

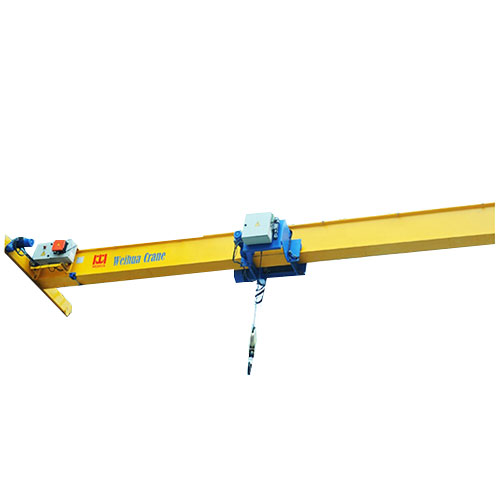

The Electric Single Girder Overhead Crane For Sale is composed of main beam, end carriage, electric hoist(or you can choose chain block), electric power transmission device and operation room(as your demand).Electric Single Girder Overhead Crane For Sale is usually used indoors, such as workshop, plant, stockyard, etc. to lift goods. It is prohibited to use the equipment in the combustible, explosive or corrosive environment.

RE the control,There are three control method,Pendent line(included); Wireless remote control,Operation room.
And the operational room which has open model and closed model and can be installed on left or right side according to the practical situation. And the direction of entering has two ways, sideway enterance and end surface enterance, in order to satisfy the users' choice in different conditions.
safety device

Electric Single Girder Overhead Crane For Sale

To guarantee the normal operation of crane and avoid the personal casualty and mechanical damage, the safety device we provide are not only the electric  protective devices or alarm bell but also other equipments as follows

1.Weight overload protection device.
2.Top quality long time bearing polyurethane materials buffer.
3.Crane travelling limit switch.
4. Voltage lower protection function.
5. Emergency stop system.
6.Current overload protection system


Specification

Lifting

Capacity (t)

Span

(m)

Lifting Height

(m)

Lifting Speed

(m/min)

Hoist Traveling

Speed(m/min)

Crane Traveling

Speed (m/min)

Recommanded

Track
1 7.5~22.5 6~12 0.8/5 2~20 3~30 P24
2 6~12 0.8/5 2~20 3~30 P24
3.2 6~12 0.8/5 2~20 3~30 P24
5 6~12 0.8/5 2~20 3~30 P24,P30
10 6~12 0.8/5 2~20 3~30 P30
12.5 6~12 0.66/4 2~20 3~30 P30
16 9~12 0.66/4 2~20 3~30 P43
20 9~12 0.66/4 2~20 3~30 P43
Work Duty A5
Power 380V, 50Hz or Other


Our Workshop

Weihua Group, a leading crane manufacturing company in China, was Founded in 1988. We has been committed to heavy machinery researching and marketing.


The main product covers shipbuilding gantry crane, lifting machinery, port container crane, heavy mining machinery and construction machinery, etc. The whole coverage of Weihua Group is 3,420,000 m2 with 6,800 employees.


Weihua adheres to scientific and technological innovation and owns a 600-people R&D team, 494 patents, CNAS laboratory, etc. For the cranes, Weihua have made many breakthroughs which include anti-sway crane system, CNC high precision positioning crane system, self-climbing crane for wind power maintenance and so on.


In recent years, Weihua cranes have been employed to serve China's Aerospace Engineering projects such as launching of Shenzhou spacecraft, Long March carrier rockets and Tiangong space laboratory. You can also find Weihua products in the fields of manufacturing, metallurgy, nuclear power, railway,port, petrochemical and wind power.


Weihua products also find its places in the global markets and won much praise from108 countries like America, Japan, Russia, Singapore, Korea, Thailand, Malaysia, Mexico, etc.


Our success comes from customers' success. Welcome to Weihua.
