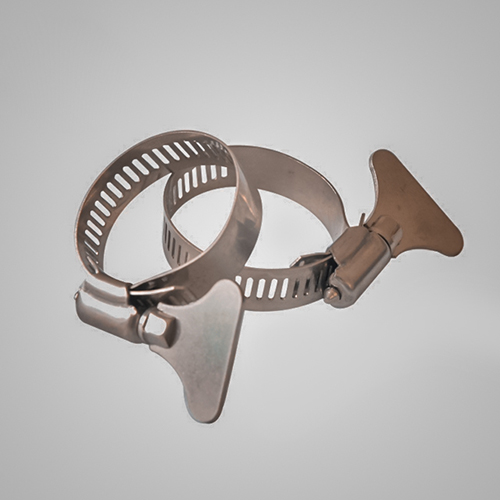

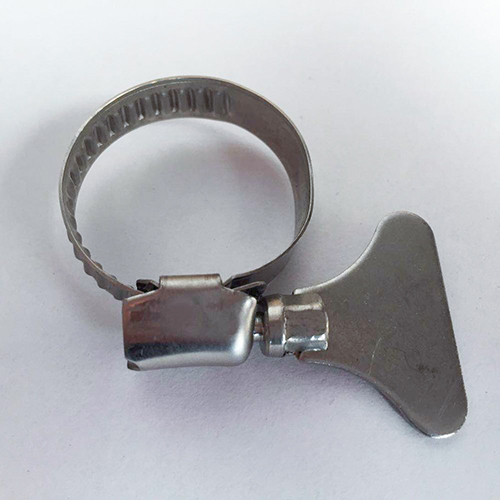

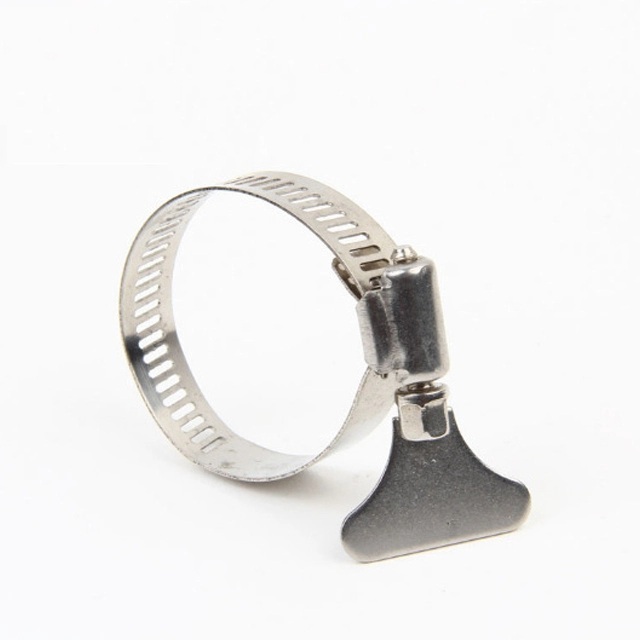

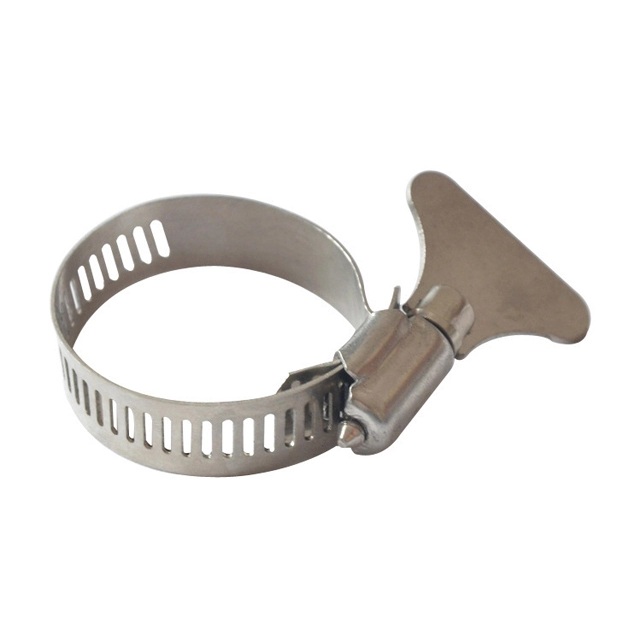

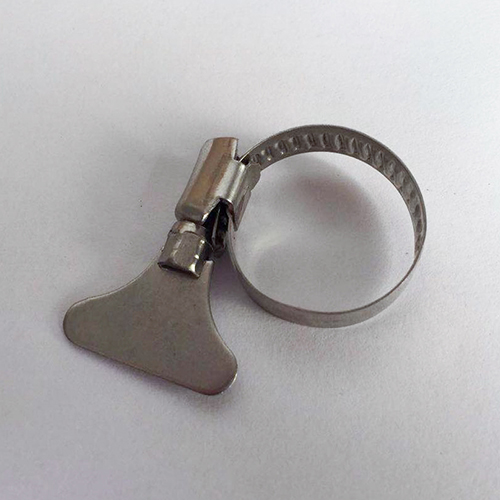

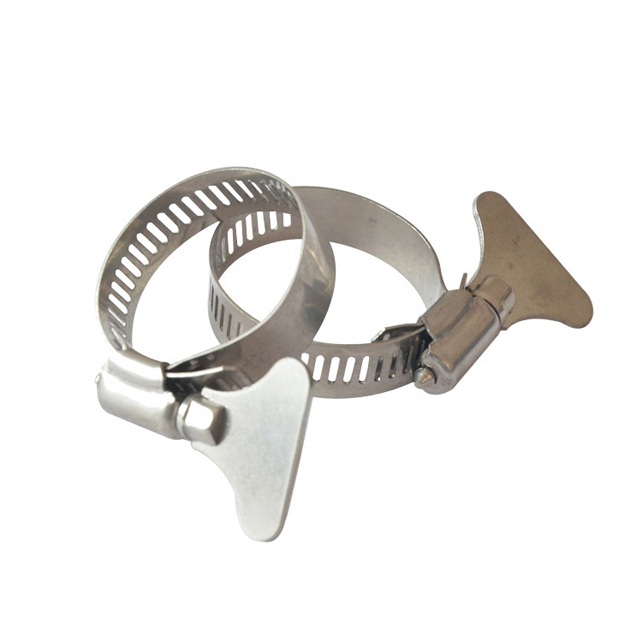

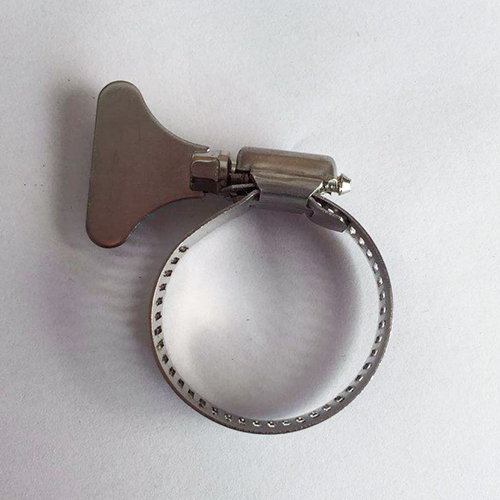

Factory Supply Professional Stainless Steel Butterfly Handle Hose Clamp With Turn Key Price

Payment Terms: TT or LC

Ref Price : 0.01-10 USD/PIECE

Supply Capability : 5000000 PIECE

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Quick Details

  • Place of Origin：
    Tianjin,China
  • Brand Name：
    Shunfa
  • Usage：
    Pipe Clamp
  • Material：
    Stainless Steel, Stainless steel 201/304/316; W4
  • Structure：
    Swivel Clamp, Perforated hose clamp
  • Standard or Nonstandard：
    Standard
  • Product name：
    Stainless Steel Butterfly Handle Hose Clamp With Turn Key
  • Product Type：
    American type hose clamp
  • Adjust range：
    8mm to 400mm or according to your requirement
  • Bandwidth：
    8mm or 12mm or 12.7mm
  • Surface treatment：
    Blacking, polishing, zinc plating
  • Application：
    Automobile, Aviation, Pipe Connection

Product Description

Product Data

Item Name

Stainless Steel Butterfly Handle Hose Clamp With Turn Key

Material

SS201/304/316 or Galvanized steel

Size

6mm to 400mm and customized

Bandwidth

8mm / 12mm / 12.7mm

Application

Pipe connection

Note:

W1: Band material is Galvanized steel; Housing materil is Galvanized steel; Screw material is Galvanized steel;

W2: Band material is SS201 or SS304; Housing materil is Galvanized steel; Screw material is Galvanized steel;

W4: Band material is SS201 or SS304; Housing materil is SS201 or SS304; Screw material is SS201 or SS304.


American Type Hose Clamps With Handle Plastic Clips And Fasteners Manufacturers in China.Butterfly quick release hose clamp mainly used for interface oil, gas, liquid glue secret aircraft, construction, automobiles, tractors, gasoline engines, diesel engines, irrigation machines and other mechanical devices, all kinds of hose system interfaces necessary tightening machine connected accessories
1.The outer edge of the band with smoothing and shaping treatment precludes the damage of the hose.
2.using high quality material and precise stamping molding, prevents thread stripping.
3.with precise design, uniform stress, good sealing ability, can be twisted smoothly, and used multiple times.

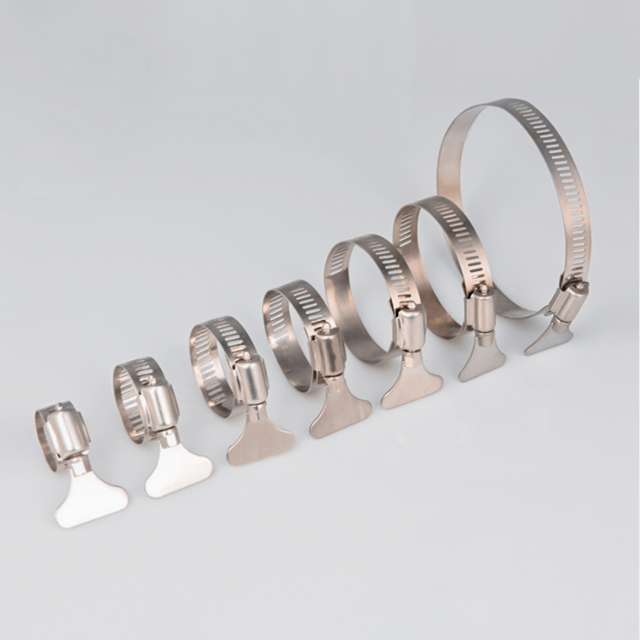

Product Show


ITEM

SPECIFICATION(mm)

BANDWIDTH

MATERIAL

1

6 - 12

8mm

SS201/304/316

2

10 - 16

8mm

SS201/304/316

3

13 - 19

8mm

SS201/304/316

4

16 - 25

8mm

SS201/304/316

5

19 - 29

8mm

SS201/304/316

6

14 - 27

12mm/12.7mm

SS201/304/316

7

18 - 32

12mm/12.7mm

SS201/304/316

8

21 - 38

12mm/12.7mm

SS201/304/316

9

21 - 44

12mm/12.7mm

SS201/304/316

10

27 - 55

12mm/12.7mm

SS201/304/316

11

33 - 57

12mm/12.7mm

SS201/304/316

12

40 - 63

12mm/12.7mm

SS201/304/316

13

46 - 70

12mm/12.7mm

SS201/304/316

14

52 - 76

12mm/12.7mm

SS201/304/316

15

59 - 82

12mm/12.7mm

SS201/304/316

16

65 - 89

12mm/12.7mm

SS201/304/316

17

72 - 95

12mm/12.7mm

SS201/304/316

18

78 - 101

12mm/12.7mm

SS201/304/316

19

84 - 108

12mm/12.7mm

SS201/304/316

20

91 - 114

12mm/12.7mm

SS201/304/316

21

105 - 127

12mm/12.7mm

SS201/304/316

22

118 - 140

12mm/12.7mm

SS201/304/316

23

130 - 152

12mm/12.7mm

SS201/304/316

24

141 - 165

12mm/12.7mm

SS201/304/316

25

155 - 178

12mm/12.7mm

SS201/304/316

26

175 - 197

12mm/12.7mm

SS201/304/316

27

194 - 216

12mm/12.7mm

SS201/304/316

28

213 - 235

12mm/12.7mm

SS201/304/316

29

232 - 254

12mm/12.7mm

SS201/304/316

30

251 - 273

12mm/12.7mm

SS201/304/316

31

270 - 292

12mm/12.7mm

SS201/304/316

32

289 - 311

12mm/12.7mm

SS201/304/316

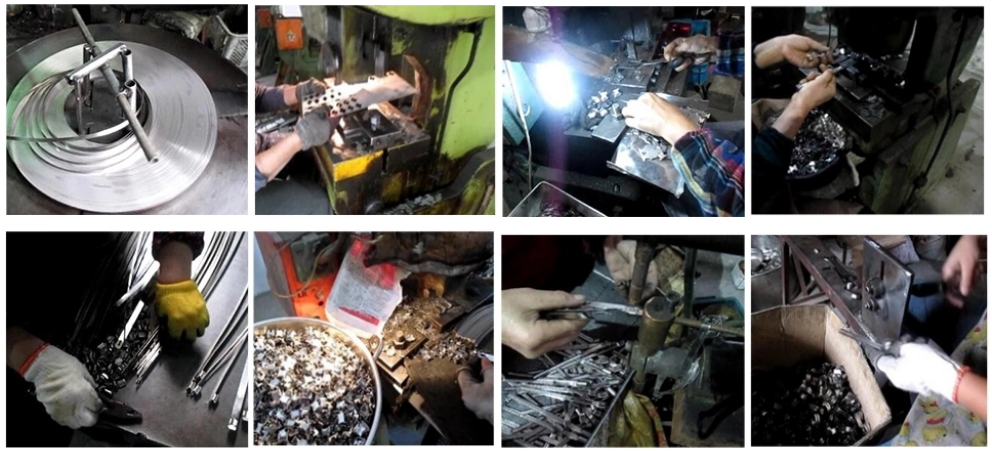

Product Process


Specifications

Material Code Explanations
W1 Band,housing&screw,all zinc plated.
W2 Band and housing with all stianless steel(201ss,304ss,430ss),zinc plated screw.
W3 Band and housing with all stianless steel 304,nickel plated screw.
W4 Band,housing&screw,all stainless steel 304.
W5 Band,housing&screw,all stainless steel 316.

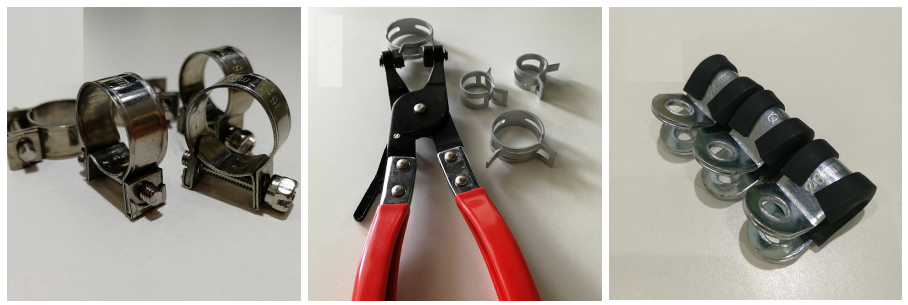

Related Products
