Foam glass tube/sound insulation/heat insulation pipe

Payment Terms: TT or LC

Ref Price : 5-20 USD/METERS

Supply Capability : 10000 METERS

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

Quality Product
Credit Purchasing
Credit Rating
Timely Delivery
Order On-line Tracking
Credit Services

Product Detail
Company Profile

Quick Details

Place of Origin：

Tianjin China (Mainland)
Brand Name：

wmdtrade
Model Number：

Foam Thermal Insulation
Type：

Other Heat Insulation Materials
Name：

Foam Cellular Glass Insulation Material
Color：

Black
Application：

Insulation
Density：

120-180kg/n3
Thickness：

30-180mm
Temperature：

-268~482 C
Thermal conductivity：

0.02-0.078

Foam glass description:

Foam glass is a new inorganic insulation material with glass as the main raw material, made through adding appropriate blowing agent, heating and roasting by high temperature tunnel kiln, and at last annealing and cooling process, which has uniform independent airtight air-gap structure.It complete retains the chemical stability of inorganic glass, with properties of low volume density, low heat conductivity, anti-moisture permeability, water repellence,non-combustibility, no virulence variation, rodent proof,high mechanical strenght, easy processing, capability of resistant all chemical erosion except hydrogen fluoride.

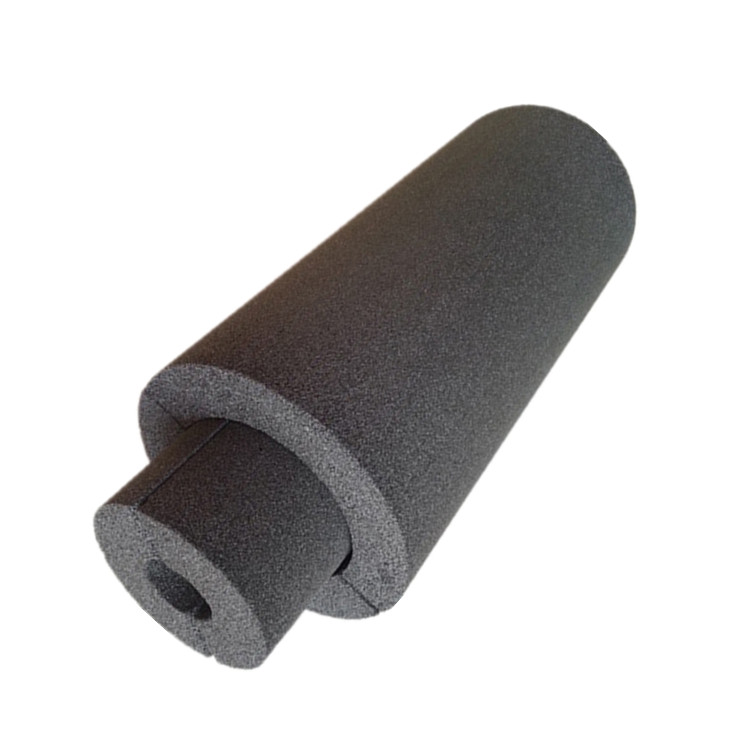

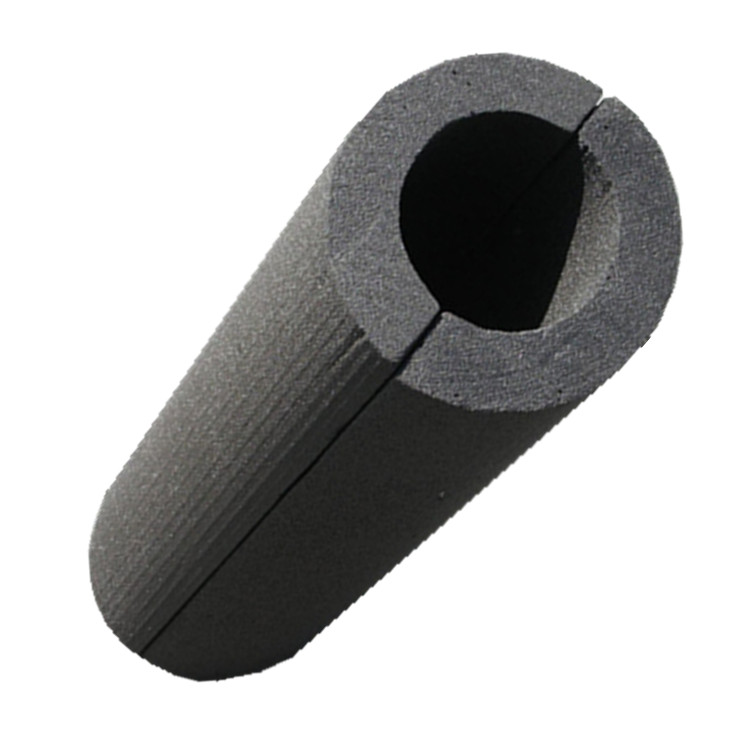

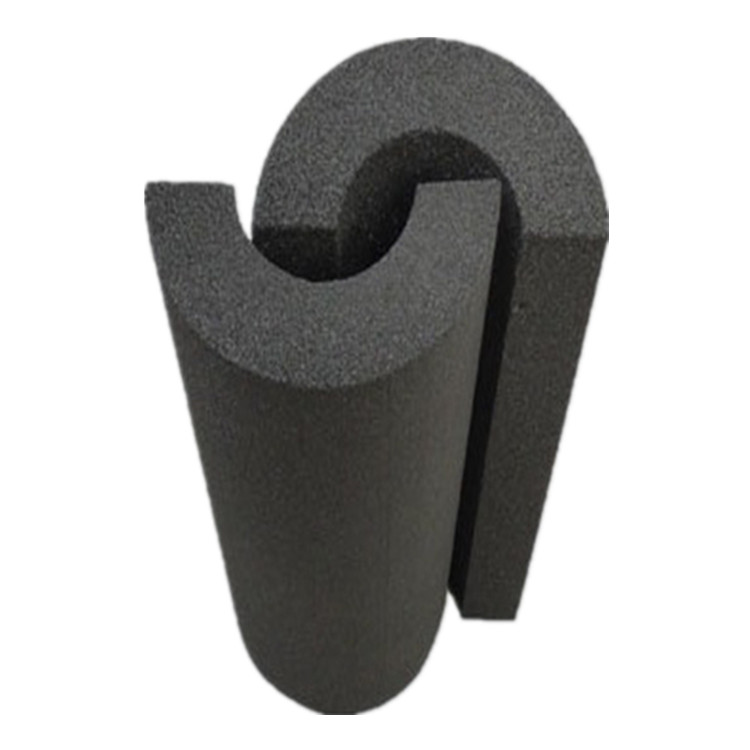

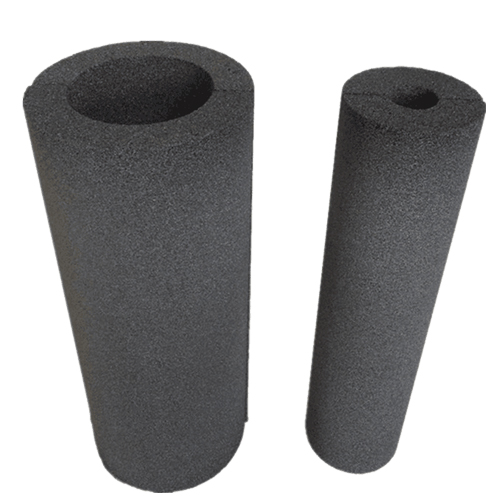

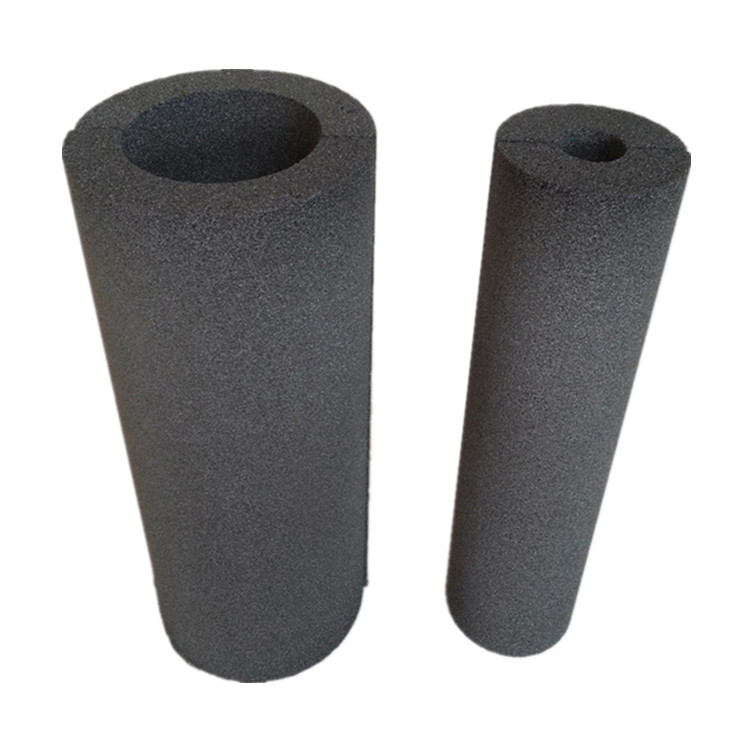

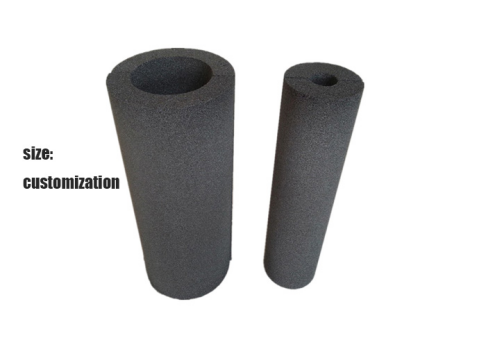

Foam glass pipe：

foan glass

Property		Unit	data
Ave.Value		Kg/m3	120-240
Thermal	Ave.Value	W/(mk) (10℃)	0.039-0.065
Thermal	Hight Single Value	W/(mk) (10℃)	0.042-0.07
Conductivity	Ave.value	Mpa	0.5-2.4
Conductivity	Hight Single Value	Mpa	0.35-1.5
Chloride Content		ppm	≤25
Water Absorption		vol%	≤0.5
Service Temp		℃	212
Lineal Expansion Coefficient		1/℃	9*106
Compressive strength		kPa	CS≥600
Bending strength		kPa	BS≥450
Tensile strength perpendicular to faces		kPa	TR≥100
Point load		mm	PL≤1
Service temperature limits		℃	-260-430

WanMaiDe estabished in 2001, a leading manufacturer and exporter of Glass Wool, Rock Wool, Rubber Foam, Foam Glass,Extrude Polystyrene/XPS, Phenolic foam board insulation in China. After more than 20 years' development, we totally have 10 producing lines for glass wool insulation,5 producing lines for rock wool insulation and more than 30 producing lines for rubber foam insulation.

We had mad OEM production for WANMAIDE which are popular due to the high quality and competitive price all over the world.
