High-quality hydraulic double scissor aerial work lift

Payment Terms: TT or LC

Ref Price : 5-5000 USD/SET

Supply Capability : 10000 SET

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Quick Details

  • Applicable Industries：
    : Hotels, Garment Shops, Building Material Shops, Machinery
  • Place of Origin：
    China (Mainland)
  • Lift Mechanism：
    Scissor Lift, Warehouse
  • Lift Drive / Actuation：
    Electric Motor
  • Power：
    1.1kw-4.5kw
  • Min. Lifting Height：
    1100mm-2430mm
  • Table Size：
    600*600mm-2816*1600mm, 600*600mm-2816*1600mm
  • Overall Dimensions：
    1300*800*1980mm-3067*1852*2230mm
  • Weight：
    280kg-3900kg
  • Certification：
    CE ISO9001, ISO&CE
  • Warranty：
    1 Year
  • After-sales Service ：
    Online support
  • Lifting Height：
    3-20M
  • Motor Power：
    1.1-4.5kw

Product Detail:


Mobile scissor lift main purpose:

Mobile scissor lifts are suitable for industrial and mining workshops, enterprises, stations, docks, buildings, exhibition halls, communication industries, municipal gardens and other high-altitude operations.

They can be used to repair street lamps, repair workshop ceiling lights, maintenance vehicles, maintenance electric hoists,

High-altitude pipeline erection and maintenance, high-altitude communication line maintenance, layout of pavilions, tree trimming.

 Mobile scissor lift features:

1. The structure is made of high-strength manganese steel rectangular tube.

2. There is an overloaded hydraulic safety protection system for the lifting platform.

3. Anti-fall safety protection device for preventing pipe bursting.

4. There is a manual control drop valve that is lowered in emergency when power is off.

5. Optional telescopic countertops to expand the working range of aerial work.

6. Optional pneumatic tires or solid tires.

7. Optional manual hydraulic pump as lifting power.

8. optional AC two-phase or three-phase electric power.

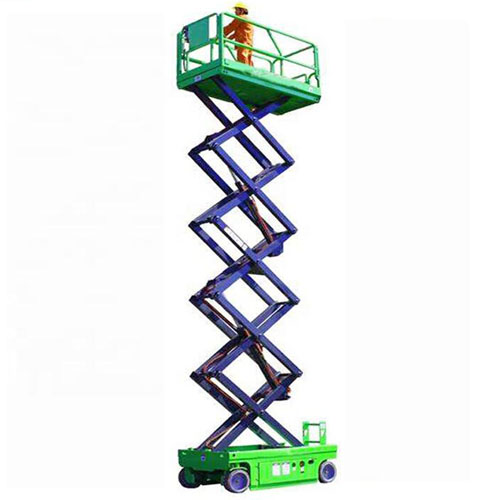

High-quality hydraulic double scissor aerial work lift

Full-automatic scissor lift parameters
Electric drive
Platform dimension(mm) Load(Kg) Lifting height(m) Overall dimensions(mm) Extension length(mm) Overall weight(Kg)
2260*1130 230 6 2470*1170*2290 900 1900
2260*1130 230 8 2470*1170*2310 900 2060
2260*1130 320 10 2470*1170*2430 900 2730
2260*1130 320 12 2470*1170*2550 900 2860
Hydraulic drive
Platform dimension(mm) Load(Kg) Lifting height(m) Overall dimensions(mm) Extension length(mm) Overall weight(Kg)
2260*810 380 6 2475*810*2158 900 1850
2260*1130 550 6 2475*1150*2158 900 2060
2260*810 230 8 2475*810*2286 900 1980
2260*1130 450 8 2475*1150*2286 900 2190
2260*1130 320 10 2475*1150*2414 900 2430
2260*1130 320 12 2475*1150*2542 900 2960
2640*1130 270 14 2840*1390*2590 900 3320

 Safety:

1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the people above platform.
3) The limit switch system helps the lift table to stop at accurate position.
4)All the trailing scissor lift are passed 1.2 times loading test before leaving factory.

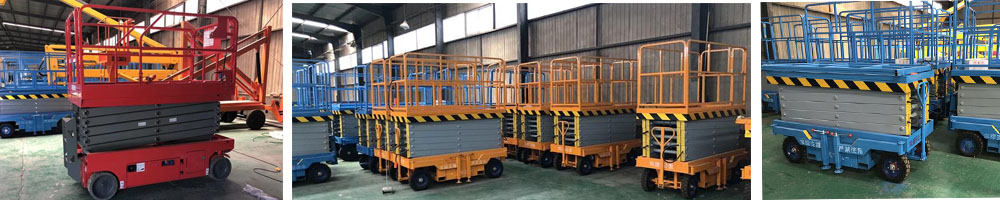

High-quality hydraulic double scissor aerial work lift




Optional configuration:
A. Imported pumping and hydraulic systems
B. Optional AC 380V power or 220V, DC, diesel-powered.
C. Assisted walking device can be added
D. Platform can extend outward

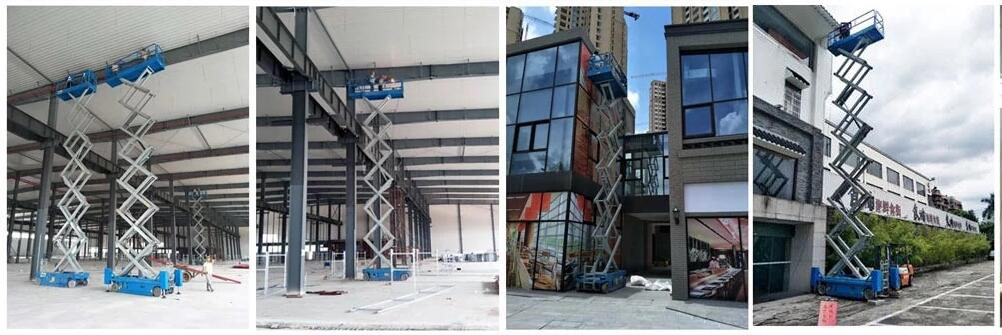

Application of our Products:

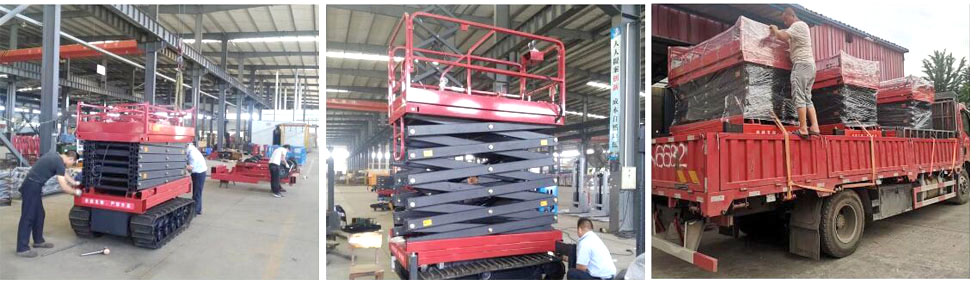

Packaging and Shipping:


Packaging Details

Packaging details of Electric Scissor Lift Platform 18m:
1.Electrical parts are packed by strong plywood box, to prevent the rain soaked.
2.Main portal frame, jib frame and others are packed in plastic woven cloth, to prevent corrosion in seawater.

3.Port:Qingdao/Shanghai


Lead Time :1 month after received the 30% deposit







Weihua Group, a leading crane manufacturing company in China, was Founded in 1988. We has been committed to heavy machinery researching and marketing.


The main product covers shipbuilding gantry crane, lifting machinery, port container crane, heavy mining machinery and construction machinery, etc. The whole coverage of Weihua Group is 3,420,000 m2 with 6,800 employees.


Weihua adheres to scientific and technological innovation and owns a 600-people R&D team, 494 patents, CNAS laboratory, etc. For the cranes, Weihua have made many breakthroughs which include anti-sway crane system, CNC high precision positioning crane system, self-climbing crane for wind power maintenance and so on.


In recent years, Weihua cranes have been employed to serve China's Aerospace Engineering projects such as launching of Shenzhou spacecraft, Long March carrier rockets and Tiangong space laboratory. You can also find Weihua products in the fields of manufacturing, metallurgy, nuclear power, railway,port, petrochemical and wind power.


Weihua products also find its places in the global markets and won much praise from108 countries like America, Japan, Russia, Singapore, Korea, Thailand, Malaysia, Mexico, etc.


Our success comes from customers' success. Welcome to Weihua.
