High quality weld head British style hose clamps for sale
Payment Terms: TT or LC
Ref Price : 0.01-1 USD/PIECE
Sino-Sources Service Pledge
-
Quality Product
-
Credit Purchasing
-
Credit Rating
-
Timely Delivery
-
Order On-line Tracking
-
Credit Services
Quick Details
-
Product Name：High quality weld head British style hose clamps for sale
-
Material：Stainless Steel
-
Usage：Pipe Clamp
-
Structure：Swivel Clamp
-
Standard：AISI, ASTM, BS, DIN, GB, JIS
-
Band width：8mm,10mm,12mm,12.7mm
-
Diameter：6-300mm, or as customer's requirment
-
Thickness：0.6-0.8mm ,or as your requirments
-
Technique：hot rolled,pickled,cold drawn,forge
-
Surface Treatment：Polished, Galvanized
-
Brand Name：Shunfa Universal Clamp
-
Place of Origin：Tianjin, China (Mainland)

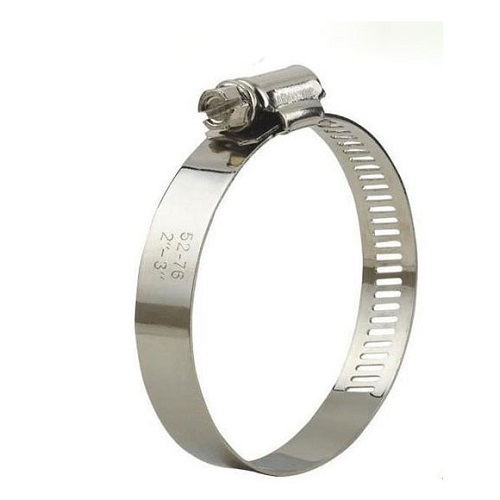

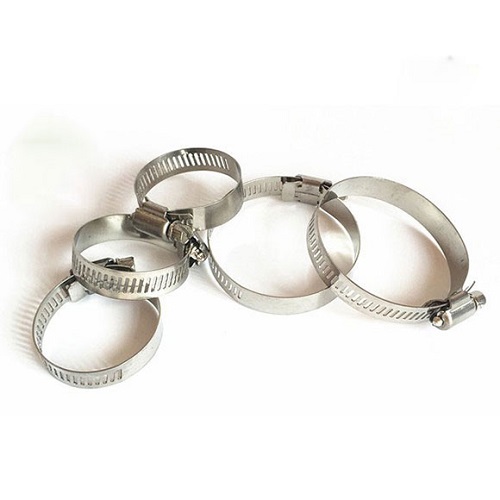

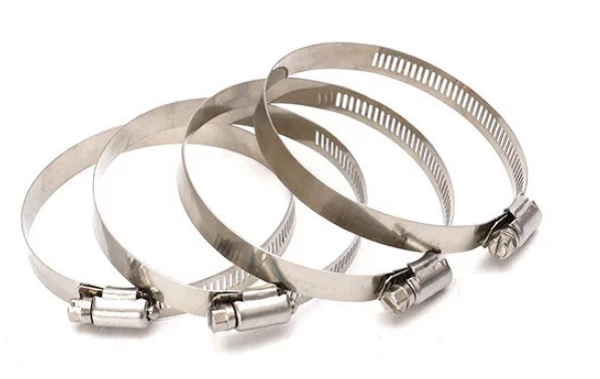

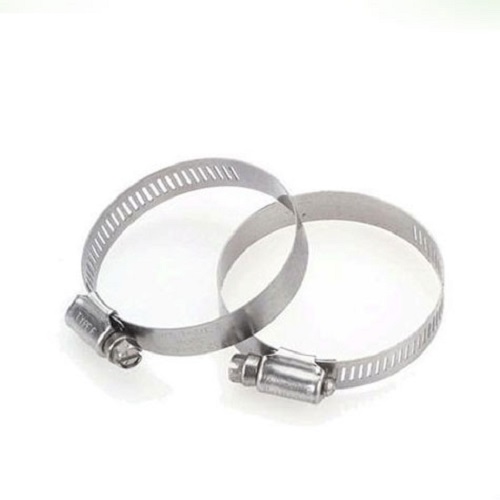

High quality weld head British style hose clamps:
British hose clamp material is iron surface galvanized, commonly known as iron galvanized, moderate torque, pressure resistance,low price,wide application range, non-through hole process, balanced torsional torque, firm and tight locking, large adjustment range, suitable for the fasteners connected by the soft and hard pipes,it is beautiful in appearance after assembly.The unique side pressing design, and non-perforated design can effectively prevent the soft surface of the silicone tube and hose from damage.

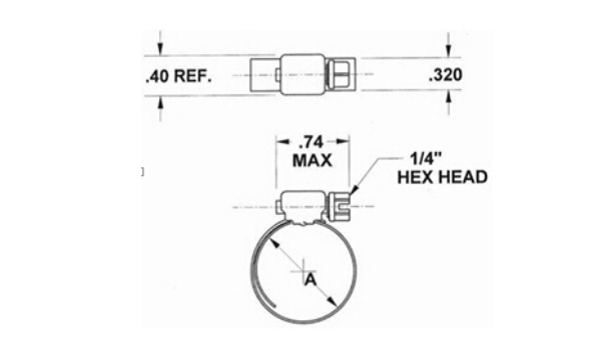

Specification And Dimension of weld head British style hose clamps:
| SIZE | INCH | MM | WIDTH(mm) |
| 4 | 7/32"-5/8" | 6-16 | 6 |
| 6 | 7/16"-3/4" | 11-20 | 6 |
| 8 | 1/2"-7/8" | 13-23 | 6 |
| 9 | 1/2"-1" | 13-25 | 6 |
| 10 | 1/2"-11/16" | 14-27 | 6 |
| 12 | 1/2"-11/4" | 18-32 | 6 |
| 16 | 13/16"-2" | 21-38 | 8 |
| 20 | 13/16"-13/4" | 21-44 | 8 |
| 24 | 11/16"-11/16" | 27-51 | 8 |
| 28 | 15/16"-21/4" | 35-57 | 8 |
| 32 | 19/16"-21/2" | 40-63 | 10 |
| 36 | 113/16"-23/4" | 46-70 | 10 |
| 40 | 21/16"-3" | 52-76 | 10 |
| 44 | 2516"-31/4" | 59-82 | 10 |
| 48 | 29/16"-31/2" | 65-89 | 10 |
| 52 | 213/16"-33/4" | 72-95 | 10 |
| 56 | 31/16"-4" | 78-101 | 10 |
| 60 | 35/16"-41/4" | 84-108 | 10 |
| 64 | 39/16"-41/2" | 91-114 | 10 |
| 72 | 41/8"-5" | 105-127 | 10 |
| 80 | 45/8"-51/2" | 118-140 | 12 |
| 88 | 51/8"-6" | 130-152 | 12 |
| 96 | 55/8"-61/2" | 143-165 | 12 |
| 104 | 61/8"-7" | 155-178 | 12 |
Weld head British style hose clamps Chemical Composition:
| MATERIAL | NAME | ELEMANTS | |||||||||
| C | Cr | Ni | Mn | P | S | Mo | Si | Cu | N | ||
| 201 | 1Cr17Mn6Ni5N | <0.15 | 16.0-18.0 | 3.5-5.5 | 5.5-7.5 | <0.06 | <0.03 | - | <1.0 | - | <0.25 |
| 202 | 1Cr18Mn8Ni5N | <0.15 | 17.0-19.0 | 4.0-6.0 | 7.5-10.0 | <0.06 | <0.03 | - | <1.0 | - | <0.25 |
| 301 | 1Cr17Ni7 | <0.15 | 16.0-18.0 | 6.0-8.0 | <2.0 | <0.065 | <0.03 | - | <1.0 | - | - |
| 303 | Y1Cr17Ni7 | <0.15 | 17.0-19.0 | 8.0-10.0 | <2.0 | <0.20 | <0.03 | - | <1.0 | - | - |
| 304 | 0Cr18Ni9 | <0.07 | 17.0-19.0 | 8.0-10.0 | <2.0 | <0.035 | <0.03 | - | <1.0 | - | - |
| 304L | 00Cr19Ni10 | <0.03 | 18.0-20.0 | 8.0-10.0 | <2.0 | <0.035 | <0.03 | - | <1.0 | - | - |
| 309S | 0Cr23Ni13 | <0.08 | 22.0-24.0 | 12.0-15.0 | <2.0 | <0.035 | <0.03 | - | <1.0 | - | - |
| 310S | 0Cr20Ni20 | <0.08 | 24.0-26.0 | 12.0-15.0 | <2.0 | <0.035 | <0.03 | - | <1.0 | - | - |
| 316 | 0Cr17Ni12Mo2 | <0.08 | 16.0-18.5 | 10.0-14.0 | <2.0 | <0.035 | <0.03 | 2.0-3.0 | <1.0 | - | - |
| 316Ti | 0Cr18Ni12Mo2Ti | <0.08 | 16.0-19.0 | 11.0-14.0 | <2.0 | <0.035 | <0.03 | 1.8-2.5 | <1.0 | - | - |
| 316L | 00Cr17Ni14Mo2 | <0.03 | 16.0-18.0 | 12.0-15.0 | <2.0 | <0.035 | <0.03 | 2.0-3.0 | <1.0 | - | - |
| 317L | 00Cr19Ni13Mo3 | <0.08 | 18.0-22.0 | 11.0-15.0 | <2.0 | <0.035 | <0.03 | 3.0-4.0 | <1.0 | - | - |
F&Q:
Q1: Do you have quality control?
A: Sure. We have the most advanced testing equipment for very strict quality control.
Q2: Do you provide British Hose Clamp samples? Is it free or extra?
A: Yes, we could offer the British Style Hose Clamp samples for free charge but do not pay the cost of freight.
Q3: What will you do for after sales?
A: You can send us a message, Any question related to our hose clamp parts, our experienced engineers are ready to help.
IF you want to buy our hose clamps products or want to know more about weld head British style hose clamps,you can send us a message to get answer and quality service.
Tianjin Shunfa Universal Clamp Co.,Ltd was founded in 2002. The manufacture covers an area of 340,000 square meters, with a construction area of 250,000 square meters and 1000 employees.The company has great experience in the clamp production industry. Years of technology and quality assurance have enabled us to have a broad customer base in the globle market.
The company's main products are: stainless steel clamp standard parts and non-standard, stainless steel hose clamps, rubber and other products, and exported to Asia, Africa, Europe, the Middle East, the Amerias, and many parts of the world.
We have a first-class technology research and development demand that we provide our customers with the best quality products and services.We sincerely hope to establish long-term trade links with customers from all over the world. If you know more about our company, please contact :shunfa@sino-sources.com
Shunfa Universal Clamp main produce various specifications hose clamp,commit to provide best quality hose clamps products for overseas users.
