Hot Selling Boat and Yacht Handling Crane From China Factory

Payment Terms: TT or LC

Ref Price : 1000-10000 USD/SET

Supply Capability : 4000 SET

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Quick Details

  • Max. Lifting Height：
    12.3m 16m
  • Span：
    22m 30m
  • Warranty：
    1 Year
  • After-sales Service Provided：
    Field installation, commissioning and training, Field maintenance and repair service
  • Feature：
    Gantry Crane
  • Applicable Industries：
    Manufacturing Plant, Construction works
  • Application：
    Outdoor; Port
  • Rated Loading Capacity：
    35t 40.5t
  • Rated Lifting Moment：
    Load Capacity
  • Place of Origin：
    Henan, China (Mainland)
  • Brand Name：
    WEIHUA
  • Certification：
    ISO CE SGS GOST
  • Features：
    Mobile boat hoist ,yacht handling machine,boat lifting gantry crane
  • Type：
    Box Girder
  • Main electrical parts：
    Schneider and Siemens
  • Lifting mechanism：
    Electric Trolley
  • Work class：
    A6~A8
  • Power Source：
    3 Phase 380V 50hz or required by customered
  • Color：
    Yellow or required by customered
  • Crane feature：
    Container Gantry

Description


Yacht handling cranes, also known as boat handlers. It is widely used in water sports games, yacht clubs, navigation, shipping and learning, etc. It can transport different tonnage (32 tons - 1000 tons) of boats or yachts from the shore dock for on-shore maintenance, repair or launching of new vessels.

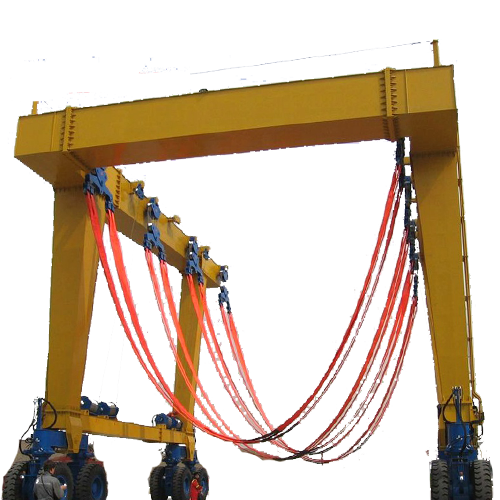

yacht-crane



The boat and yacht handling crane includes the following items: main structure, traveling wheel block, hoisting mechanism, steering mechanism, hydraulic transmission system and electric control system. The main structure is N type, which can transfer the boat/yacht with height surpass crane's height.

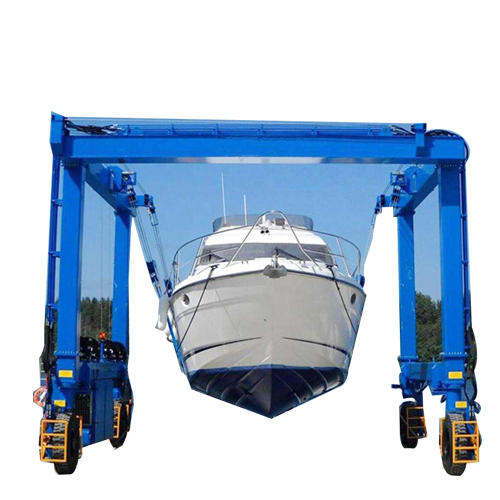

boat-handling-crane



According to different requirements of our customers, the boat handling crane can handle different tonnage boats or yachts (10T-800T) from the shore side, it can be used for the maintenance on the shore side or can put the new boat into the water. This yacht handling crane has soft and firm belt to lift the boat and yacht so that it will never hurt the surface. This crane also can put the boat in sequence quickly with small gap between each two boat.

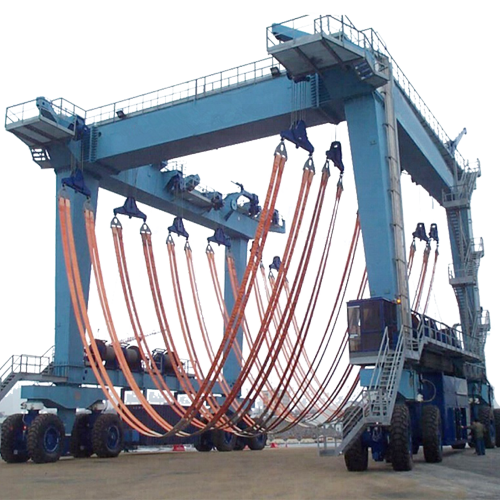

yacht-crane



Features of Yacht Handling Crane:

1. For the crane traveling, this crane can move in diagonal direction, this boat and yacht handling crane also can steer in 90 degree and put the boat in any designated position according to requirements.

2. This crane can be adjusted the width of the main girder according to the boat in case to handling different side boat.

3. This yacht handling crane is of low expense, high performance, easy to operate and maintenance and so on.

4. Low cost on the daily operation, it adopts the soft and firm belt to ensure there is no harm to the boat when hoisting.

5. This boat crane can make the boat in order quickly; it also can adjust the gap between each boat according to different condition.

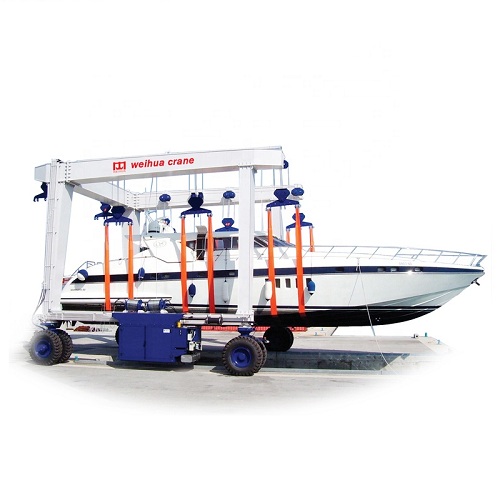

yacht-boat-crane


Datas


Technical Specifications
Lifting capacity   300t Max wheel load 32t
Lifting Height 13m Adapt to the pavement cement pavement,Compacted stone pavement
Span 18m Suspensory rigging traveling Speed Without load 0-5m/min
Leg space 18m Lfting Speed Full Load 0-1.5m/min
Total length 25.5m Without load 0-3m/min
Total height 19.5m Crane traveling speed Full Load 0-30m/min
Total Width 20m Without load 0-50m/min
Climbing ability 3% Full load Tire specification/Number 21.00-35-42/16
8% Without load Steering angle 0-90 Degrees
Engine power 250KW Crane steering Transverse/lengthwise/  diagonally/Fixed-point rotation


Packaging


Weihua Group, a leading crane manufacturing company in China, was Founded in 1988. We has been committed to heavy machinery researching and marketing.


The main product covers shipbuilding gantry crane, lifting machinery, port container crane, heavy mining machinery and construction machinery, etc. The whole coverage of Weihua Group is 3,420,000 m2 with 6,800 employees.


Weihua adheres to scientific and technological innovation and owns a 600-people R&D team, 494 patents, CNAS laboratory, etc. For the cranes, Weihua have made many breakthroughs which include anti-sway crane system, CNC high precision positioning crane system, self-climbing crane for wind power maintenance and so on.


In recent years, Weihua cranes have been employed to serve China's Aerospace Engineering projects such as launching of Shenzhou spacecraft, Long March carrier rockets and Tiangong space laboratory. You can also find Weihua products in the fields of manufacturing, metallurgy, nuclear power, railway,port, petrochemical and wind power.


Weihua products also find its places in the global markets and won much praise from108 countries like America, Japan, Russia, Singapore, Korea, Thailand, Malaysia, Mexico, etc.


Our success comes from customers' success. Welcome to Weihua.
