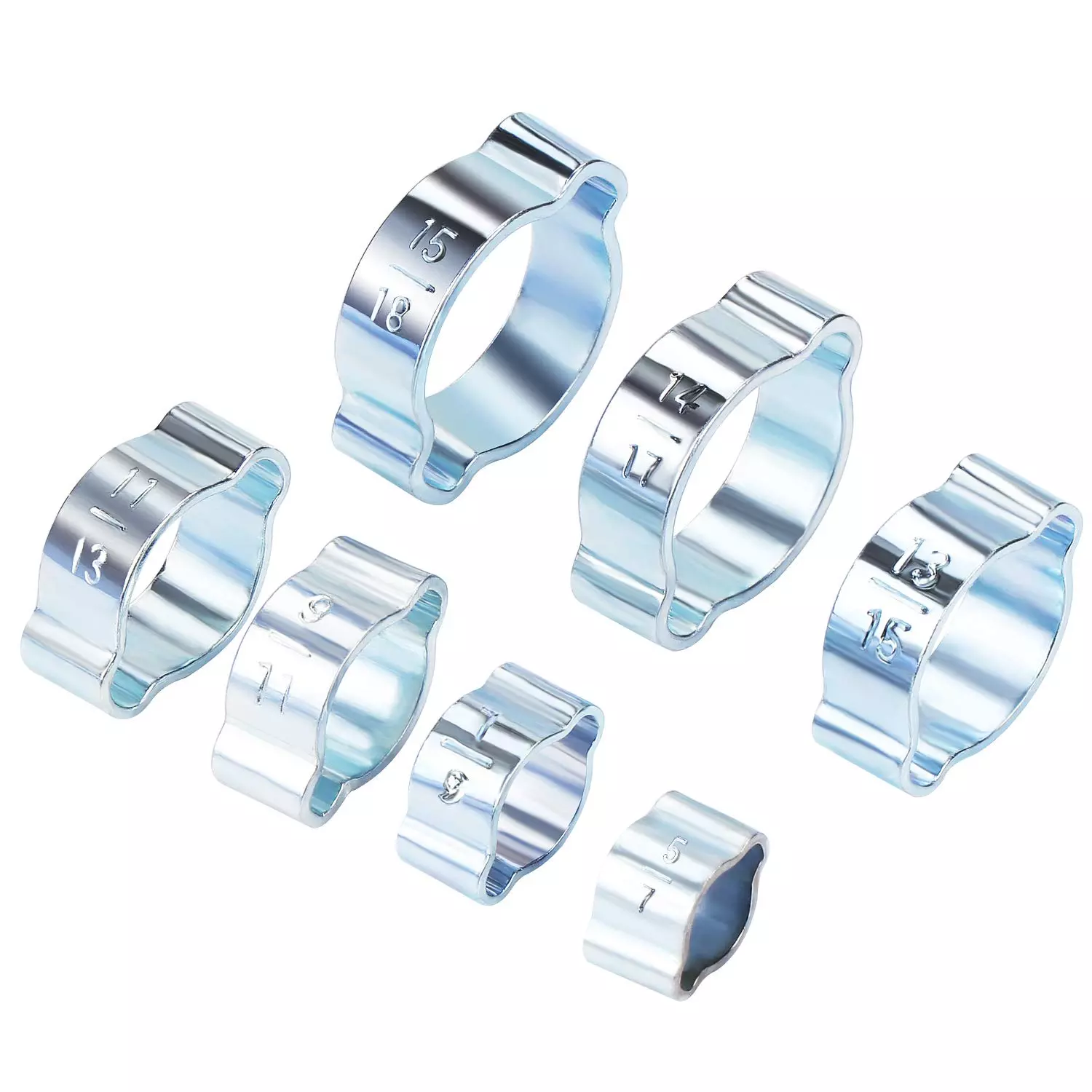

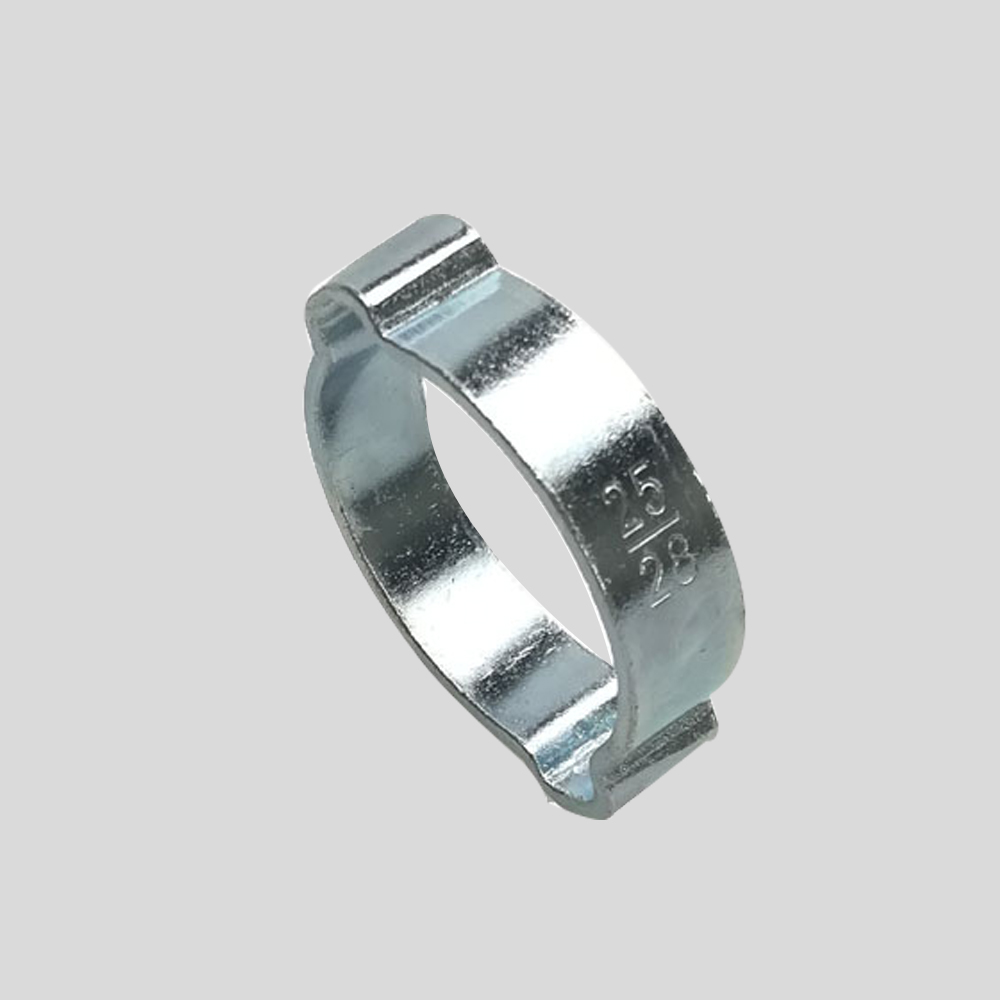

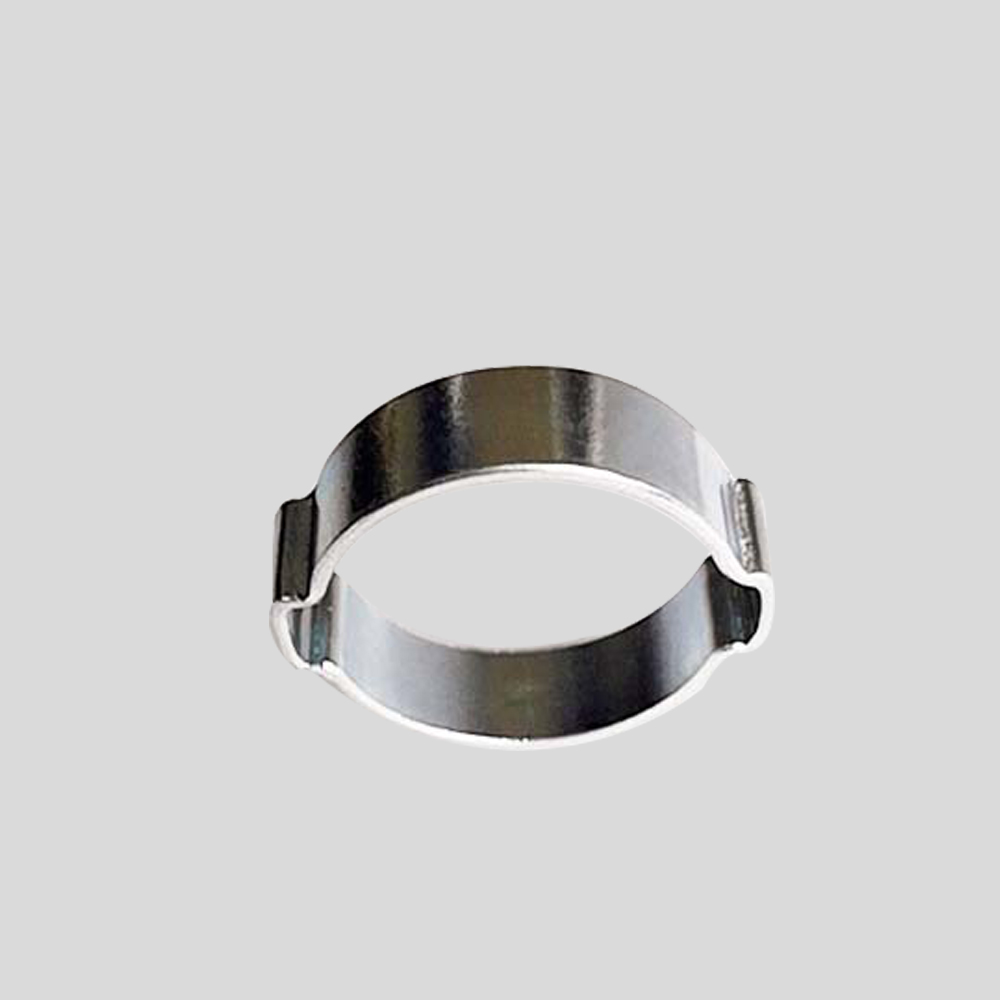

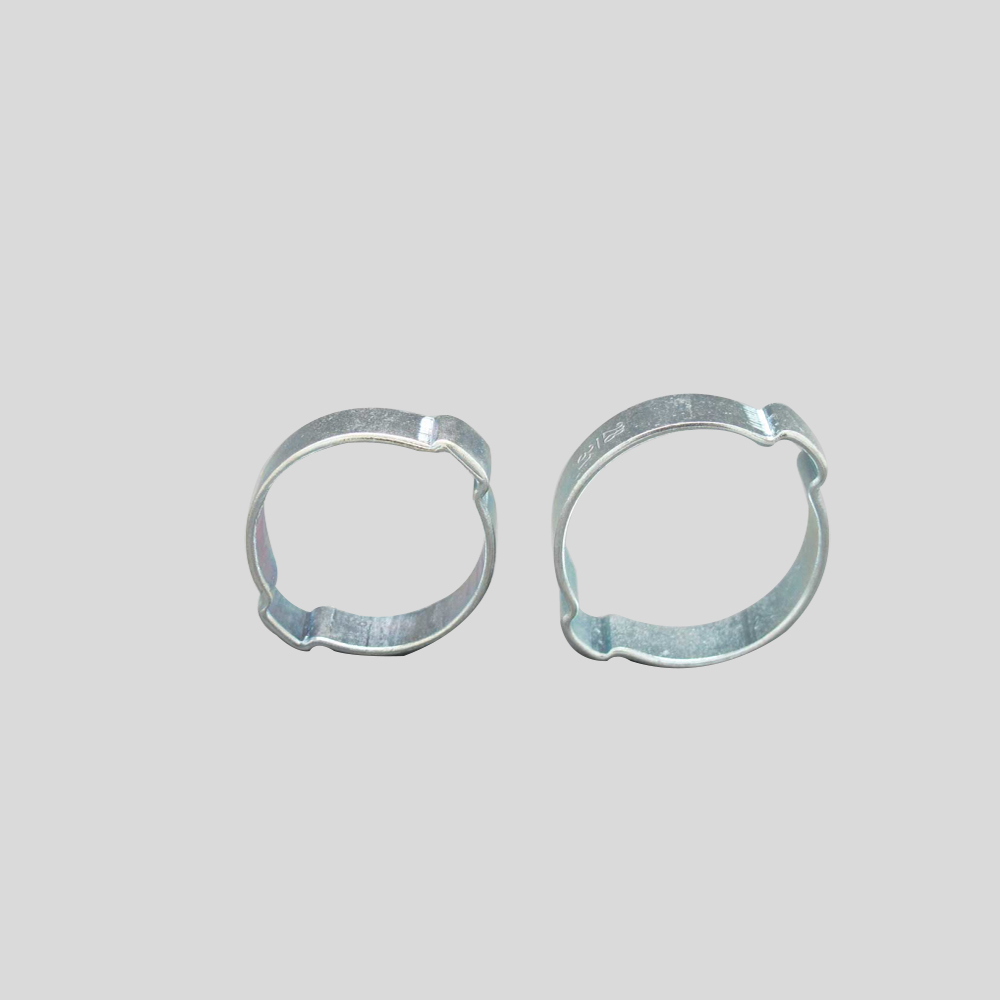

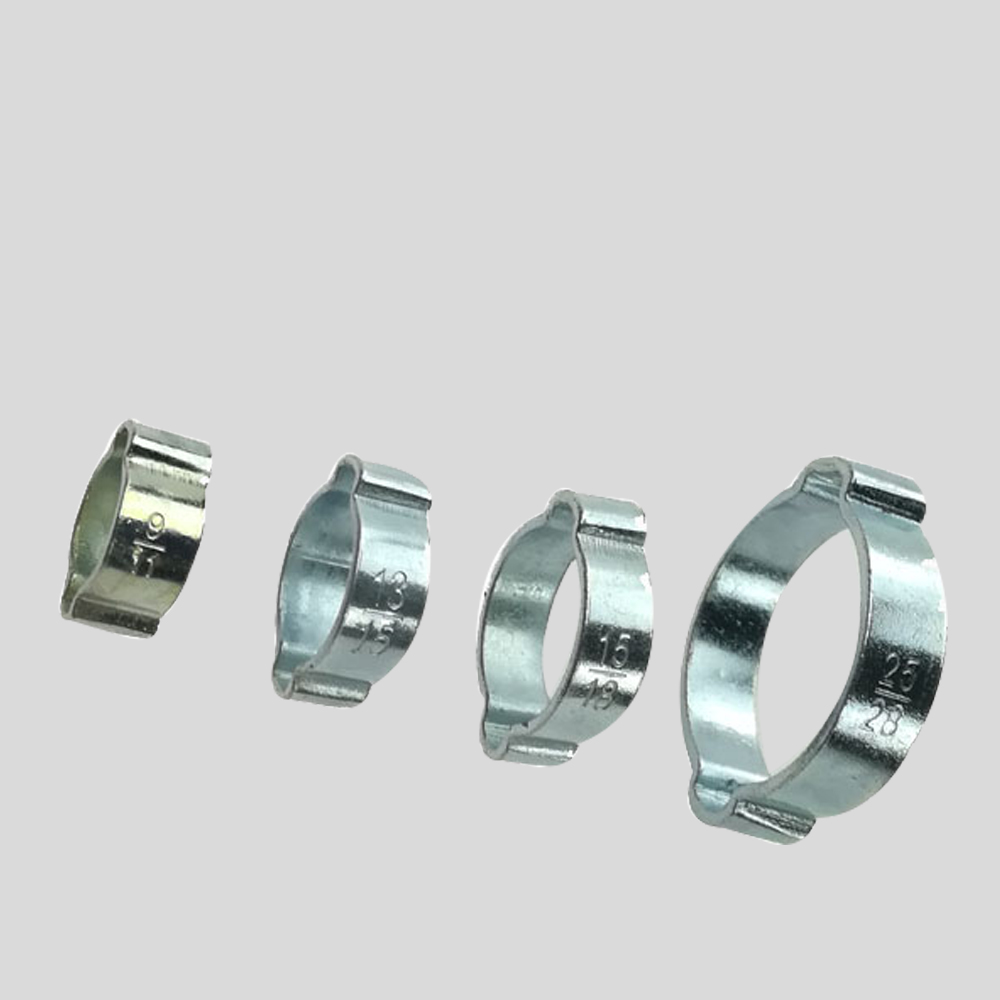

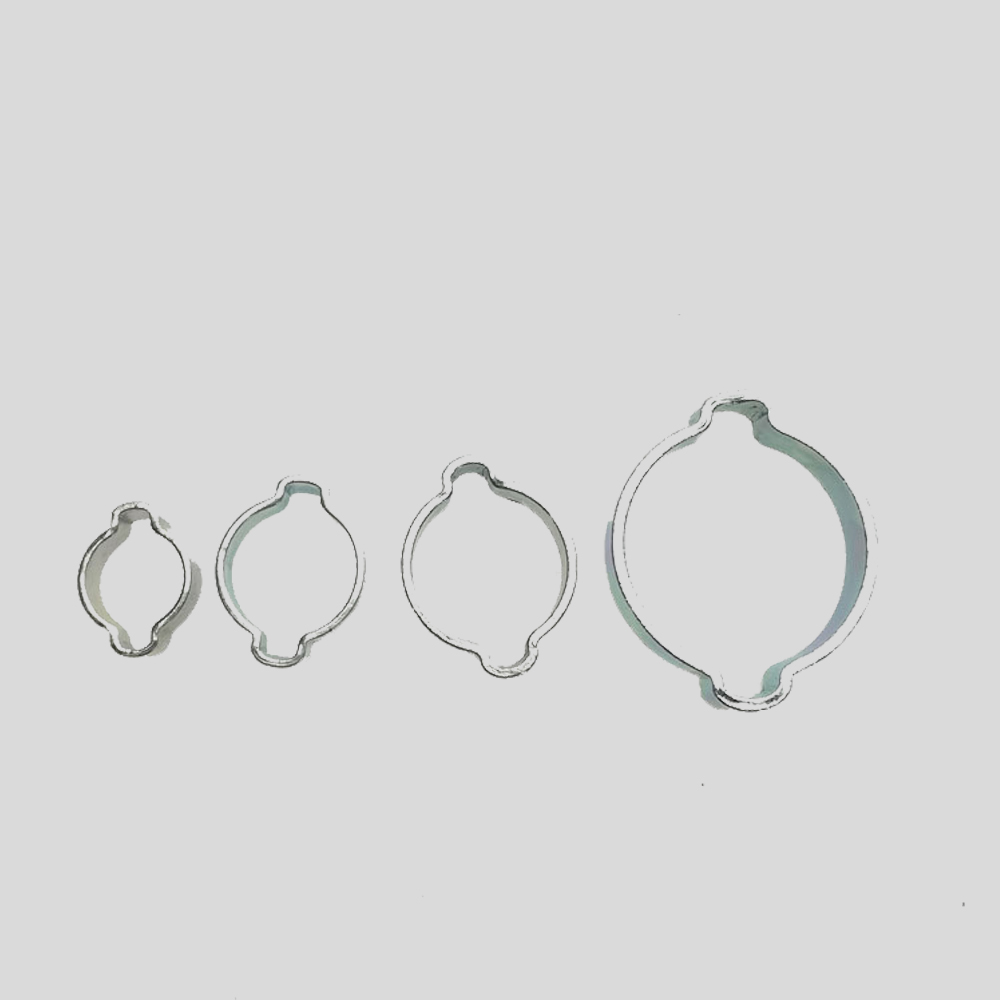

Hot Selling Stainless Steel And Galvanized Double Ear Hose Clamp From China Supplier
Payment Terms: TT or LC
Ref Price : 0.01-10 USD/PIECE
Sino-Sources Service Pledge
-
Quality Product
-
Credit Purchasing
-
Credit Rating
-
Timely Delivery
-
Order On-line Tracking
-
Credit Services
Quick Details
-
Place of Origin：Tianjin, China
-
Brand Name：Shunfa Trade
-
Model Number：6.5-150mm
-
Usage：Pipe Clamp
-
Material：Stainless Steel, Metal
-
W4：SS304
-
W5：SS316
-
W1：Electric galvanized
-
Surface treatment：Blacking, polishing, zinc plating
-
Application：Automotive; Heavy Duty; Industrial; Marine; Hardware; Truck&Rngime
Product Description
|
Narrow band: |
||||||
|
concentrates transmission of clamping force, less weight |
||||||
|
Stepless® over 360°: |
||||||
|
uniform compression or uniform surface pressure |
||||||
|
Clamp ear: |
||||||
|
compensates for component tolerances, adjustable surface pressure |
||||||
|
Dimple: |
||||||
|
increases clamping force, spring-effect compensates for changes in diameter due to thermal expansion |
||||||
|
Specially formed strip edges: |
||||||
|
reduced risk of damage to parts being clamped |
||||||
|
Material |
||||||
|
167 Stainless Steel, Material no. 1.4301/UNS S30400 |
||||||
|
117 Galvanized or zinc-plated steel band |
||||||
|
Optional alternative materials |
||||||
|

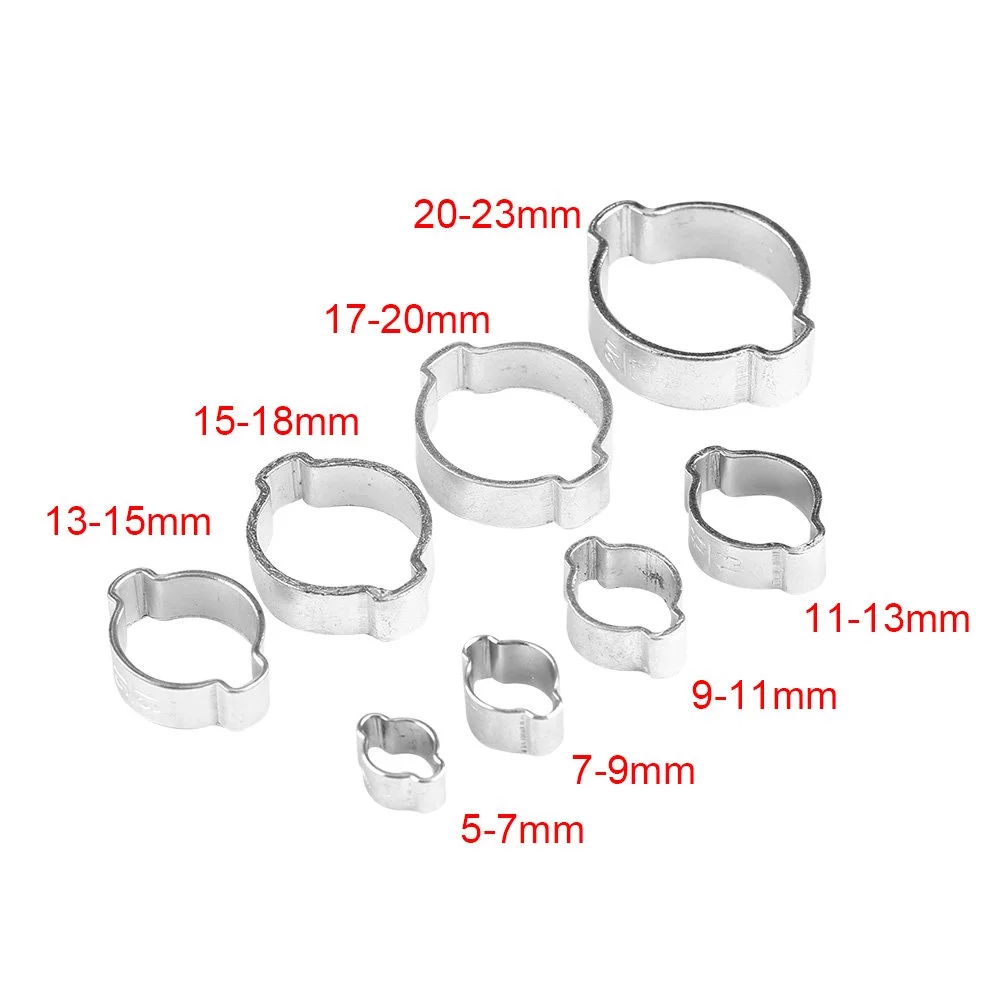

Standard Series |
||||||
|
Size range |
||||||
|
Size |
Bandwidth |
Clamping force |
Material |
pcs/bag |
pcs/carton |
|
|
W4 |
W1 |
Nm |
||||
|
3.1-4.1 |
6.5*0.6mm |
6.5*0.6mm |
3600 |
W1/W4 |
100 |
5000 |
|
3.5-4.5 |
6.5*0.6mm |
6.5*0.6mm |
3600 |
W1/W4 |
100 |
5000 |
|
3-5 |
6.5*0.6mm |
6.5*0.6mm |
3600 |
W1/W4 |
100 |
5000 |
|
5-7 |
7*0.6mm |
7*0.6mm |
3600 |
W1/W4 |
100 |
5000 |
|
7-9 |
7*0.7mm |
7*0.7mm |
3600 |
W1/W4 |
100 |
5000 |
|
9-11 |
7*0.7mm |
7*0.9mm |
3600 |
W1/W4 |
100 |
5000 |
|
11-13 |
7*0.7mm |
7.5*1.0mm |
3600 |
W1/W4 |
100 |
2000 |
|
13-15 |
7*0.8mm |
7.5*1.0mm |
3600 |
W1/W4 |
100 |
2000 |
|
14-17 |
7*0.9mm |
7.5*1.2mm |
3600 |
W1/W4 |
100 |
2000 |
|
15-18 |
7.5*0.9mm |
7.5*1.2mm |
3600 |
W1/W4 |
100 |
2000 |
|
17-20 |
7.5*0.9mm |
7.5*1.2mm |
3600 |
W1/W4 |
100 |
2000 |
|
18-21 |
7.5*0.9mm |
7.5*1.2mm |
3600 |
W1/W4 |
100 |
2000 |
|
20-23 |
8*0.9mm |
9*1.3mm |
3600 |
W1/W4 |
100 |
2000 |
|
22-25 |
8*0.9mm |
9*1.4mm |
3600 |
W1/W4 |
100 |
2000 |
|
23-27 |
8.5*1.0mm |
9*1.4mm |
3600 |
W1/W4 |
100 |
2000 |
|
25-28 |
9*1.2mm |
9*1.4mm |
3600 |
W1/W4 |
100 |
2000 |
|
28-31 |
10*1.2mm |
9.5*1.4mm |
3600 |
W1/W4 |
100 |
1000 |
|
31-34 |
10*1.2mm |
9.5*1.4mm |
3600 |
W1/W4 |
100 |
1000 |
|
34-37 |
10*1.2mm |
9.5*1.4mm |
3600 |
W1/W4 |
100 |
1000 |
|
37-40 |
10*1.2mm |
9.5*1.4mm |
3600 |
W1/W4 |
100 |
1000 |
|
43-46 |
10*1.2mm |
9.5*1.4mm |
3600 |
W1/W4 |
100 |
1000 |
|
NOTE: |
1,The standard packing material in bags and cartons. |
|||||
|
2,Other sizes are available for us too. |
||||||
|
3,All the information is just for your reference,can't be used as specification. |
||||||
Product Details
Main Product Outline
1. British hose clamps: band thickness is usually about 1 mm, double the thickness of other hose clamps. So the band tension is very strong. Widely used in larger pressure occasions. With out tooth traces at inner ring of the band can protect the soft surface of hoses.
2.German hose clamps: the unique side pressing design, and non-perforated design can effectively prevent the soft surface of the silicone tube and hose from damage.
3.American hose clamps: with band thread through-hole, and teeth of the screw fitted in, they have more powerful locking. and accurate Occlusal. Also,american hose clamps can be used in non-circular objects, they can bundle the square columnar objects, such as flue, electric vehicle batteries,etc.
4. T bolt hose clamps: similar to their brothers -- the single-head solid strong clamps, both of them belong to the powerful hose clamps , which also called European clamps. The common bandwidth 20MM, 24MM, 26MM,etc., have a larger Strong torque. Widely used in places with strong fastening force requirements.
5. V band hose clamps: traditional flange replacing products. beautiful appearance. cheap. fast and easy installation. high strength, good sealing performance. Pipes are connected with high concentricity. and easy removal. They can be used as an active connection of round or oval ducts and pipes which require constant maintenance and activities.
6. U shape pipe clamps:are used for pipe fixing on various surfaces and support structures. U tube clamps is suitable for fixed pipeline with oil, water, gas medium in metallurgy, petroleum, chemicals, vehicles, ships, power hydraulic systems. U pipe clamps under stamping, sheet metal, galvanized surface treatment , taking shape with "U" style,have a unique advantage of damping, silencers, sound absorption, abrasion etc..
7. Spring-loaded T-bolt hose clamps: spiral spring design prevents the occurrence of leakage when temperature changes, and have a self-compensation function (constant pressure). Widely used in truck air intake, cooling ventilation systems. T-spring hoops made of high quality stainless steel and thin band material, provide uniform sealing pressure with special bending process ,forming a completely reliable seal. they are dedicated to the environment of vibration and large diameters.
8. Rubber coated hose clamps: with good flexibility, tensile strength, flame retardant, waterproof, anti-aging, anti-static, high temperature resistance, corrosion resistance, wear-resistant, anti-UV performance.
9. Handle/thumb screw hose clamps: simple and easy to use, without any tools. Handle/thumb screw can be plastic coated or not.
10. Quick release hose clamps: mainly used in fast conversion, such as sealing of the air duct, dust channel interface. meets quickly tied needs to enable work very efficient.

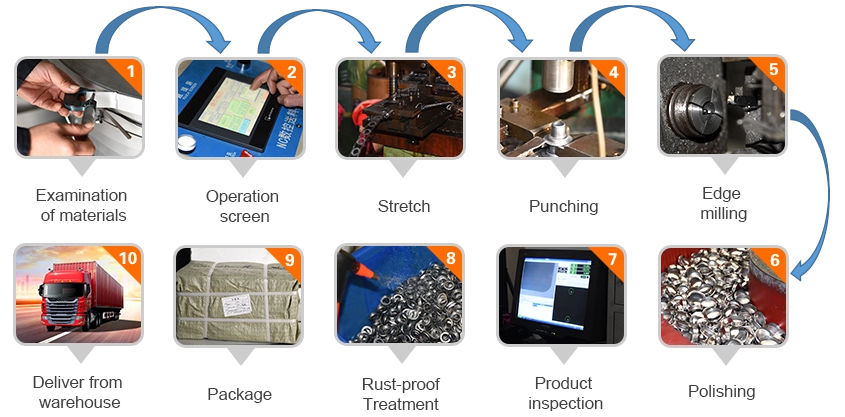

Product Process

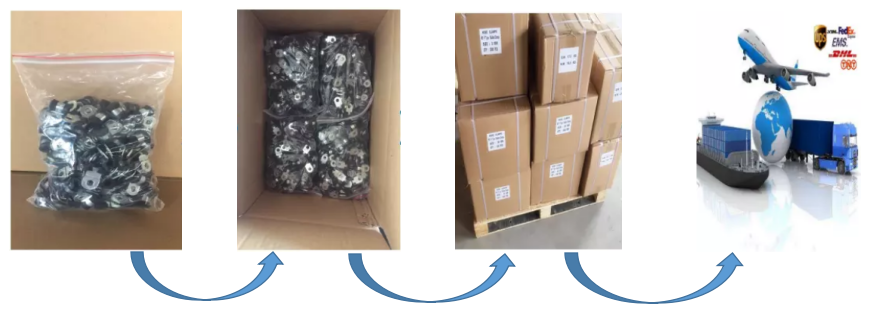

Packing & Delivery
Tianjin Shunfa Universal Clamp Co.,Ltd was founded in 2002. The manufacture covers an area of 340,000 square meters, with a construction area of 250,000 square meters and 1000 employees.The company has great experience in the clamp production industry. Years of technology and quality assurance have enabled us to have a broad customer base in the globle market.
The company's main products are: stainless steel clamp standard parts and non-standard, stainless steel hose clamps, rubber and other products, and exported to Asia, Africa, Europe, the Middle East, the Amerias, and many parts of the world.
We have a first-class technology research and development demand that we provide our customers with the best quality products and services.We sincerely hope to establish long-term trade links with customers from all over the world. If you know more about our company, please contact :shunfa@sino-sources.com
Shunfa Universal Clamp main produce various specifications hose clamp,commit to provide best quality hose clamps products for overseas users.
