Industrial Supply Hot Sale Single Girder Overhead Crane for Metallurgy Price

Payment Terms: TT or LC

Ref Price : 1000-10000 USD/SET

Supply Capability : 3000 SET

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Quick Details

  • Feature：
    Bridge Crane
  • Application：
    Warehouse,workshop, plant,material storage,indoor
  • Rated Loading Capacity：
    1~20t
  • Rated Lifting Moment：
    Design
  • Max. Lifting Load：
    20ton
  • Max. Lifting Height：
    9m-24m
  • Span：
    10.5~31.5m
  • Place of Origin：
    Henan, China (Mainland)
  • Brand Name：
    WEIHUA CRANE
  • Color：
    Yellow,orange,red or the others
  • Type：
    Single girder overhead crane
  • Lifting mechanism：
    Electric trolley
  • Warranty：
    12 Months
  • After-sales Service Provided：
    Engineers available to service machinery overseas
  • Protection systerm：
    Include

Product Description

Product Name: Single Girder Overhead Crane for Metallurgy

Capacity:  10t

Working Level: A5

Working Temperature: -10℃ to 60℃



The detail description of single girder overhead crane for metallurgy

Single girder overhead crane is mainly used in lifting molten metal and foundries. The lifting hoist is YH metallurgy wire-rope electric hoist with lifting capacity reaching 10t.

The single girder overhead crane for metallurgy is composed of main beam, end carriage, electric hoist(or you can choose chain block),electric power transmission device and operation room(as your demand).

The bottom of main girder adopts special heat-insulation treatment with working environment temperature- 10℃~60℃, and relative humidity ≤ 50%( 40℃). Design and manufacture meet the requirements of AQSIQ Doc #(2007)375.

The single girder overhead crane for metallurgy can be also employed to lift non-molten metal and high temperature solid metal.

RE the control,There are three control method,Pendent line(included); Wireless remote control,Operation room.
And the operational room which has open model and closed model and can be installed on left or right side according to the practical situation. And the direction of entering has two ways, sideway enterance and end surface enterance, in order to satisfy the users' choice in different conditions.

Safety device:

The single girder overhead crane          for metallurgy To guarantee the normal operation of crane and avoid the personal casualty and mechanical damage, the safety device we provide are not only the electric  protective devices or alarm bell but also other equipments as follows

1.Weight overload protection device.
2.Top quality long time bearing polyurethane materials buffer.
3.Crane travelling limit switch.
4. Voltage lower protection function.
5. Emergency stop system.
6.Current overload protection system

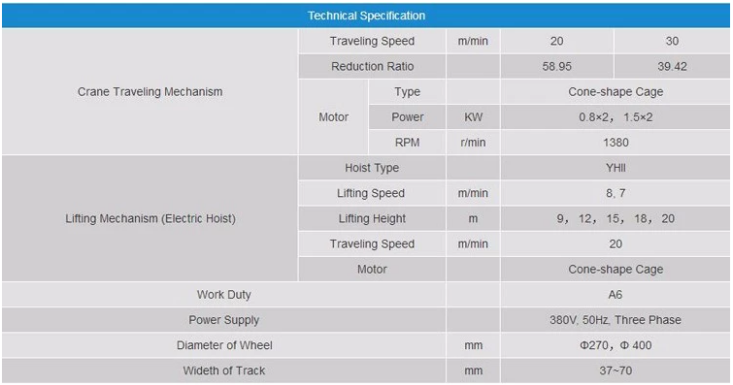

Technical Data

After-Sales Service
Our after-sales service provide:
1. 14 months warranty when products leave the factory, or 12 months warranty after installation
and commissioning expect the human damage factors.
2. 2 years spare-parts provided for better maintenance.
3. Professional technical staffs provide installation, commissioning and training services.
4. Delivery with English user manual, parts manual, product certification and other relevant certificates.
5. Technical advisory for any time and Engineers available to service machinery overseas.


Weihua Group, a leading crane manufacturing company in China, was Founded in 1988. We has been committed to heavy machinery researching and marketing.


The main product covers shipbuilding gantry crane, lifting machinery, port container crane, heavy mining machinery and construction machinery, etc. The whole coverage of Weihua Group is 3,420,000 m2 with 6,800 employees.


Weihua adheres to scientific and technological innovation and owns a 600-people R&D team, 494 patents, CNAS laboratory, etc. For the cranes, Weihua have made many breakthroughs which include anti-sway crane system, CNC high precision positioning crane system, self-climbing crane for wind power maintenance and so on.


In recent years, Weihua cranes have been employed to serve China's Aerospace Engineering projects such as launching of Shenzhou spacecraft, Long March carrier rockets and Tiangong space laboratory. You can also find Weihua products in the fields of manufacturing, metallurgy, nuclear power, railway,port, petrochemical and wind power.


Weihua products also find its places in the global markets and won much praise from108 countries like America, Japan, Russia, Singapore, Korea, Thailand, Malaysia, Mexico, etc.


Our success comes from customers' success. Welcome to Weihua.
