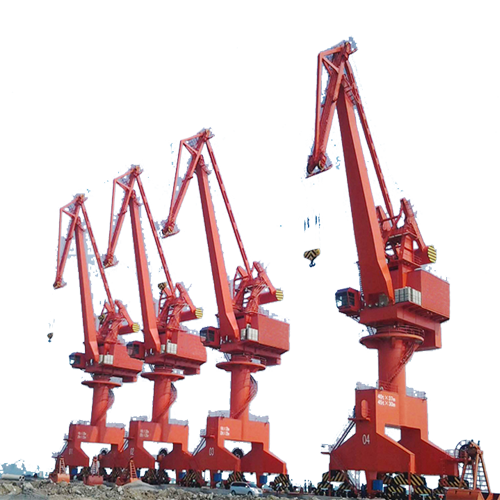

Industrial Supply WEIHUA Brand Mobile Harbour Portal Container Crane Price From China
Payment Terms: TT or LC
Ref Price : 1000-10000 USD/SET
Sino-Sources Service Pledge
-
Quality Product
-
Credit Purchasing
-
Credit Rating
-
Timely Delivery
-
Order On-line Tracking
-
Credit Services
Quick Details
-
Max. Lifting Height：Rail 40m+Under Rail 36m
-
Warranty：1 Year
-
After-sales Service Provided：Field maintenance and repair service, Video technical support
-
Feature：Portal Crane
-
Application：Port, harbour
-
Rated Loading Capacity：Required
-
Rated Lifting Moment：Based on the design drawing
-
Span：Boom Length
-
Place of Origin：Henan, China (Mainland)
-
Brand Name：WEIHUA CRANE
-
Certification：CE ISO
-
Feature：Harbour portal crane,mobile portal crane
-
Type：Material Handling Four Link Portal Crane
-
Color：Customer's requirements
-
Power Source：3-phase A.C. 50Hz, 380V or customized
-
Working duty：A5-A8
-
Structure：Exported standard steel
-
Main electrical part：WEIHUA Brand or can by your requirements
Introduction
Brief Description
lifting weight: 5t-40t
Lifting Height: 12m-28m (up)/ 9m-16m (down)
Features of this mobile portal crane:
1. high working effiency;
2. smooth movement &comfortable operation;
3. convenient maintenance & aesthetic painting;
4. especially suitable for shipping work;
5. customized: design and manufacture according to your request.

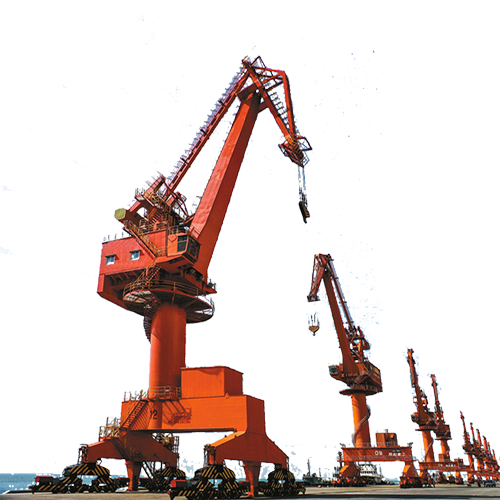

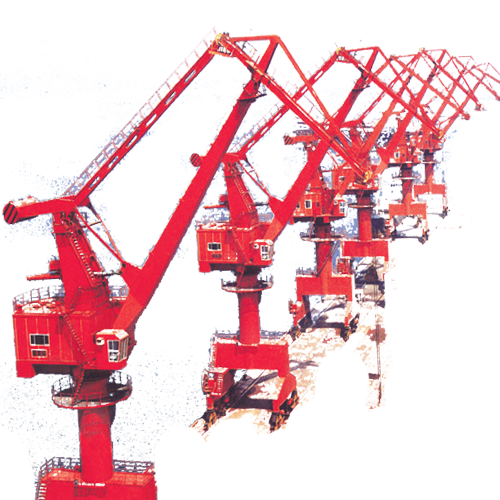

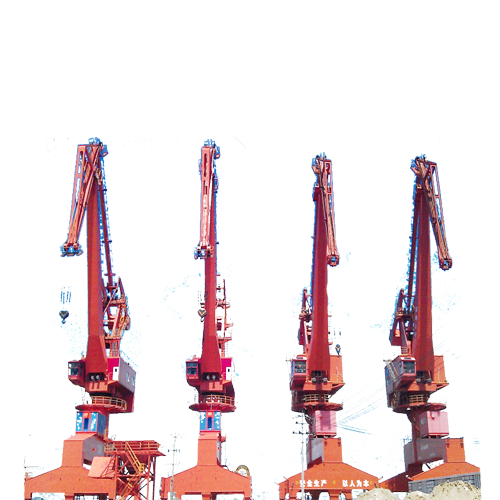

Releated portal crane
Mechanism of this portal crane :
1. High quality carbon steel Q235B and Q345B;
2. connected by high strength screws;
3. Welding seams are tested by X-ray and ultrasound;
4. Compact structure, small volume;
5. Compact reducer motor drive, step less control, hardened gears and safety disc brake;
6. Good operation performance, step less speed regulating and running smoothly;
7. Painting high quality epoxy zinc-rich primer, and the thickness of oil film is 140μm;
Advantages:
Long arms, suitable for bigger ship, beautiful exterior, safe and reliable, durable advanced performance, convenient for maintenance. It's the best choice for comprehensive multi-typed cargo ports.
Good performance, beautiful exterior, efficient work, compact structure, running balanced, comfortable operation, safe&reliable, convenient for maintenance. Port portal crane can be used at limited space in ports to load and unload cargo on ships, and leave considerable room for vehicles to pass through, especially applies to universal ports.
Electric System:
1. Control panel protection degree is IP54;
2. Reasonable components installation, convenient for check and maintenance;
Safety Protection Devices:
Overload limiter, limit switch, interlocking protection devices, buffer, track sweep plate, bus bar protection board, anti-collision device, main disconnecting switch, emergency stop system and motor overload protection.
Specifications of portal crane:
| Type | lifting Cap./t | height (m) | Lift height | Speed/ | Max Wheel load /kW | Ship/DWT | ||||
| above rail (m) | below rail (m) | Hoist (m/min) | Luffing(m/min) | Slewing (r/min) | Travel (m/min) | |||||
| MQ525 | 5 | 8~25 | 12 | 9 | 40 | 24 | 1.5 | 25 | 180 | 19000 |
| MQ535 | 5 | 10~33 | 15 | 9 | 50 | 40 | 1.5 | 25 | 210 | 30000 |
| MQ1025 | 10 | 8~25 | 15 | 9 | 50 | 50 | 1.5 | 25 | 220 | 19000 |
| MQ1033 | 10 | 10~33 | 20 | 12 | 50 | 40 | 1.4 | 25 | 185 | 30000 |
| MQ1625 | 16 | 9~25 | 20 | 12 | 50 | 40 | 1.5 | 25 | 240 | 19000 |
| MQ1633 | 16 | 10~33 | 28 | 15 | 60 | 40 | 1.5 | 25 | 250 | 30000 |
| MQ2533 | 25 | 10~33 | 28 | 15 | 60 | 50 | 1.5 | 25 | 260 | 30000 |
| MQ4033 | 40 | 10~33 | 28 | 16 | 50 | 50 | 1.41 | 25 | 260 | 30000 |
After-Sales Service:
Our after-sales service provide:
1. 14 months warranty when products leave the factory, or 12 months warranty after installation
and commissioning in addition to the human damage factors.
2. 2 years spare-parts provided for better maintenance.
3.Professional technical staffs provide installation, commissioning and training services.
4.Delivery with English user manual, parts manual, product certification and other relevant certificates.
5.Technical advisory for any time and Engineers available to service machinery overseas.
Customer Visiting
Weihua Group, a leading crane manufacturing company in China, was Founded in 1988. We has been committed to heavy machinery researching and marketing.
The main product covers shipbuilding gantry crane, lifting machinery, port container crane, heavy mining machinery and construction machinery, etc. The whole coverage of Weihua Group is 3,420,000 m2 with 6,800 employees.
Weihua adheres to scientific and technological innovation and owns a 600-people R&D team, 494 patents, CNAS laboratory, etc. For the cranes, Weihua have made many breakthroughs which include anti-sway crane system, CNC high precision positioning crane system, self-climbing crane for wind power maintenance and so on.
In recent years, Weihua cranes have been employed to serve China's Aerospace Engineering projects such as launching of Shenzhou spacecraft, Long March carrier rockets and Tiangong space laboratory. You can also find Weihua products in the fields of manufacturing, metallurgy, nuclear power, railway,port, petrochemical and wind power.
Weihua products also find its places in the global markets and won much praise from108 countries like America, Japan, Russia, Singapore, Korea, Thailand, Malaysia, Mexico, etc.
Our success comes from customers' success. Welcome to Weihua.
