Industrial Supply PCX Vertical Cycle Stereo Car Parking System For Sale From China WEIHUA Group

PCX Cycle Stereo Parking System Product description：

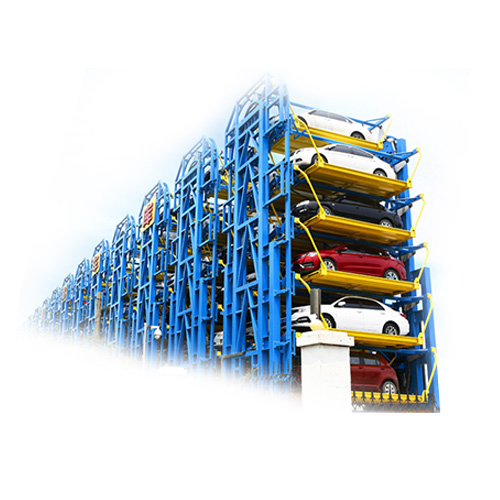

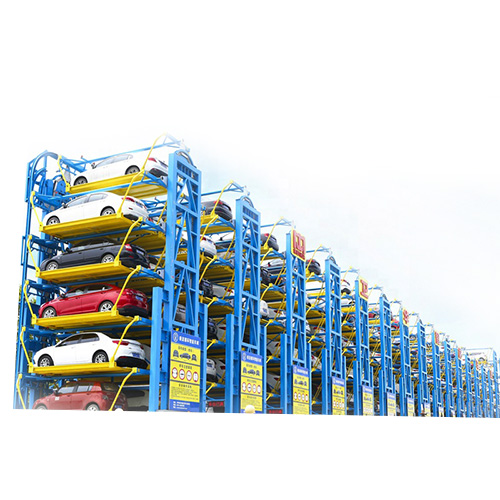

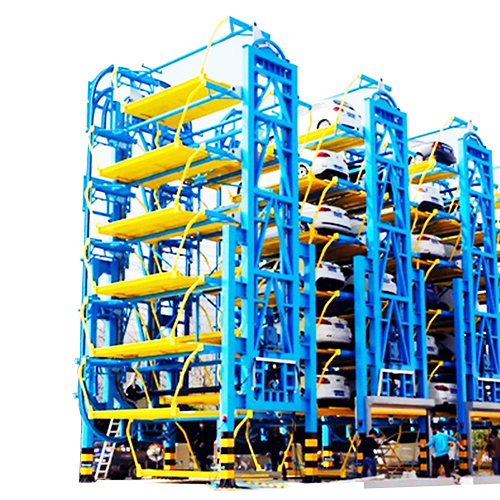

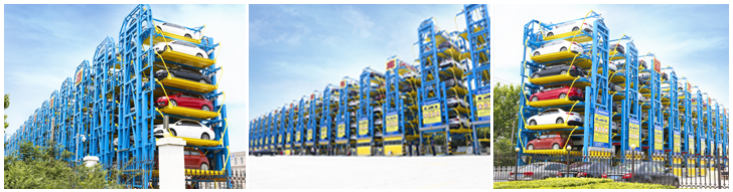

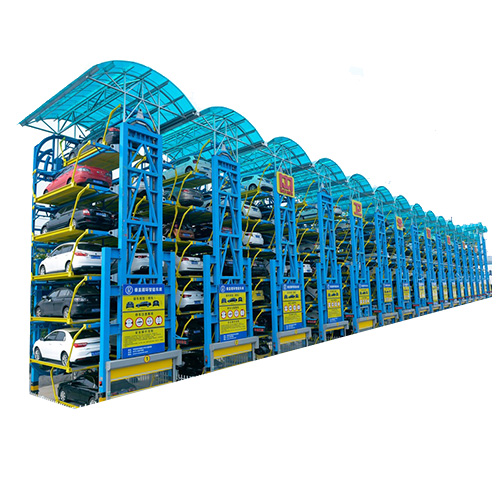

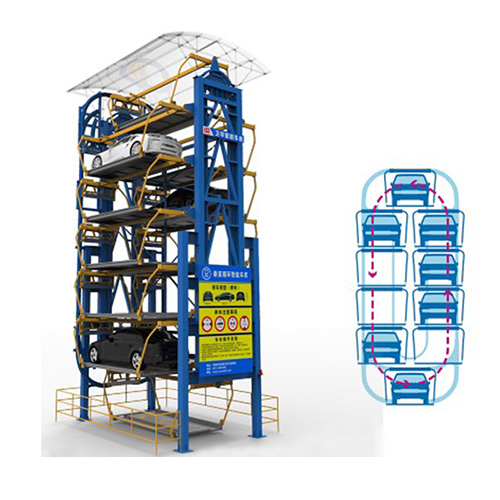

This Vertical Car Parking System mainly consists of main steel structure, plate structure, transmission system, control system, and safety protection device. The main structure is internally provided with a fixed guide rail, the lifting chain roller runs in the guide rail, and the carriage plate is suspended on the extended plate of the lifting chain. During operation, the car is parked inside the carriage board, and the chain drive system drives the carriage board for circulation running in the vertical direction. When the carriage board runs to the lowest end, the vehicle can be accessed.

Features and Advantages of Vertical Car Parking System:

1. 2 parking spaces for 12 cars, maximized utilization rate of available space;

2. Takes average 70 seconds and up to 120 seconds to park or take your car, the vacancy plate is always at the lowest floor, efficient and convenient;

3. Automatic control, PLC, Frequency Control, less impact to equipment;

4. Use alone or in combination;

5. Simple operation, 4 ways to use it, card, buttons, remote control, mobile phone, App, etc.

6. Safe and reliable, If people approach, the equipment will automatically stop running;

7. Economical, short construction period, less consumption, green, nice appearance;

8. Quick installation and removal;

9. Stable and durable, main PLC and electrical components are from Siemens, Schneider, Omron;

10. Weihua Smart Garage adopts advanced parametric design methods such as 3D CAD and CAE.

Specification

PCX8D-16D(Sedan)Cars Vertical Rotary Parking Equipment Technical Parameters
Item Name		Technical Parameter and Instruction
Model		PCX-8D		PCX-10D		PCX-12D		PCX-14D		PCS-16D
Car Dimension		L*W*H=5300mm*1850mm*1600mm
Car Weight		1.8t		1.8t		1.8t		1.8t		1.8t
Occupy Space		6.5m*5.5m		6.5m*5.5m		6.5m*5.5m		6.5m*5.5m		6.5m*5.5m
Equipment Total Height		9.7m		11.58m		13.51m		15.44m		17.3m
Equipment Total Weight		15.3t		19.4t		23.64t		29t		33.56t
Car Quantity		8		10		12		14		16
Motor Power		7.5KW		7.5KW		9.2KW		11KW		15KW
Cycle Speed		4.4m/min		4.4m/min		4.4m/min		5.5m/min		5.5m/min
Max Time for Take Out Car		87s		120s		135s		145s		148s

Company Information

Founded in 1988, Weihua Group is a leading crane manufacturer in China. Weihua has been committed to heavy machinery researching and marketing. The main product covers lifting machinery, port machinery, mining machinery and construction machinery, etc. The whole coverage of Weihua Group is 3,420,000 m2 with 6,800 employees.

Weihua adheres to scientific and technological innovation and owns a 600-people R&D team, 494 patents, CNAS laboratory, etc. For the cranes, Weihua have made many breakthroughs which include anti-sway crane system, CNC high precision positioning crane system, self-climbing crane for wind power maintenance and so on.

In recent years, Weihua cranes have been employed to serve China's Aerospace Engineering projects such as launching of Shenzhou spacecraft, Long March carrier rockets and Tiangong space laboratory. You can also find Weihua products in the fields of manufacturing, metallurgy, nuclear power, railway,port, petrochemical and wind power.

Weihua products also find its places in the global markets and won much praise from108 countries like America, Japan, Russia, Singapore, Korea, Thailand, Malaysia, Mexico, etc.

Our success comes from customers' success. Welcome to Weihua.

Customer Visiting
