Industry Equipment Gantry Crane Double Girder RMG 20t to100t Rail Mounted

Payment Terms: TT or LC

Ref Price : 1000-50000 USD/SET

Supply Capability : 2500 SET

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Quick Details

  • Max. Lifting Height：
    6m
  • Span：
    10-20m
  • Type：
    Box Girder
  • Lifting mechanism：
    Electric Hoist or trolley
  • Place of Origin：
    Henan, China (Mainland)
  • Brand Name：
    WEIHUA CRANE
  • Model Number：
    RMG CRANE
  • Certification：
    ISO CE SGS GOST
  • Features：
    RMG Gantry Crane,100 ton gantry crane,50 ton gantry crane
  • Power Source：
    3 Phase 380V 50hz or required by customered
  • Control Method：
    Remote or pendent control on ground
  • Work Class：
    A4
  • Color：
    Yellow or required by customered
  • Warranty：
    12 Months


This gantry crane can be mounted with many kinds of electric rope hoists, meeting the demands of various functional operations for different tasks.


These double-girder cranes are mainly consisted of lifting mechanisms, micro-transmission mechanisms, steel structures, spreader anti-sway systems, crane travel mechanisms, container spreaders, electrical equipment and other necessary auxiliary equipment.


The Detail Description of the gantry crane,double girder or single girder gantry crane, mobile gantry crane, small portable gantry crane, shipbuilding gantry crane and etc.

This rail mounted quay gantry crane is used in factory, shipyard, bridge and road construction,etc to do common lifting and unloading works. This kind of crane is composed of bridge, support legs, crane travelling organ, trolley, electric equipment,strong lifting winch. The frame adopts box-type welding mechanism. Crane travellilng mechanism adopts separate driver. All mechanisms are operated in the driver cabin. Power is supplied by cable or slide wire. there are different capacity double beams gantry crane for your choice according to your different use.


RMG Rail Mounted gantry crane Specification:

Product name

RMG Rail Mounted gantry crane

Model

WH-RMG100

WH-RMG300

Lifting capacity(under spreader)(t)

50,100

300,800

Work Duty

A7,A8

A6,A7

Span(m)

23,47

23,47

Lifting Height(m)

12.2-17.8

16.5

Stack Layer/Passing Layer

3/4-5/6

5-6

Container Model

20',40',45'

20',40',45'

Spreader Rotating Angle

±5°

±5°

Hoisting Speed(m/min)

13/26,23/52

12/18,18/28

Cross Travel Speed(m/min)

50,70

24

Long Travel Speed(m/min)

Full Load-90,Without Load-130

Full Load-20,Without Load-40

Max.Wheel Load(KN)

310

310

Total Rating(KW)

150,230

110,150

Power Supply

Electric,Diesel Engine,Electic-disel Engine


Features of Chinese Double Girder Rail Mounted Gantry Crane Crane:

1. Prefabricated standard modularization design makes it easier for transport and installation;

2. This gantry crane can be easily installed and used on any flat hardening floor;

3. It can be used in many material handling situations;

4. It is very economical for a single unit work;

5. Light weight reduces the time and cost of installation;

6. It offers a safe operation environment;

7. This crane can work with manual hoist or electric hoist


Visiting

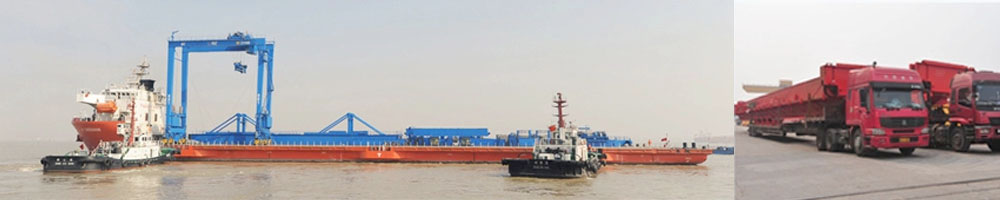

Transportation


Weihua Group, a leading crane manufacturing company in China, was Founded in 1988. We has been committed to heavy machinery researching and marketing.


The main product covers shipbuilding gantry crane, lifting machinery, port container crane, heavy mining machinery and construction machinery, etc. The whole coverage of Weihua Group is 3,420,000 m2 with 6,800 employees.


Weihua adheres to scientific and technological innovation and owns a 600-people R&D team, 494 patents, CNAS laboratory, etc. For the cranes, Weihua have made many breakthroughs which include anti-sway crane system, CNC high precision positioning crane system, self-climbing crane for wind power maintenance and so on.


In recent years, Weihua cranes have been employed to serve China's Aerospace Engineering projects such as launching of Shenzhou spacecraft, Long March carrier rockets and Tiangong space laboratory. You can also find Weihua products in the fields of manufacturing, metallurgy, nuclear power, railway,port, petrochemical and wind power.


Weihua products also find its places in the global markets and won much praise from108 countries like America, Japan, Russia, Singapore, Korea, Thailand, Malaysia, Mexico, etc.


Our success comes from customers' success. Welcome to Weihua.
