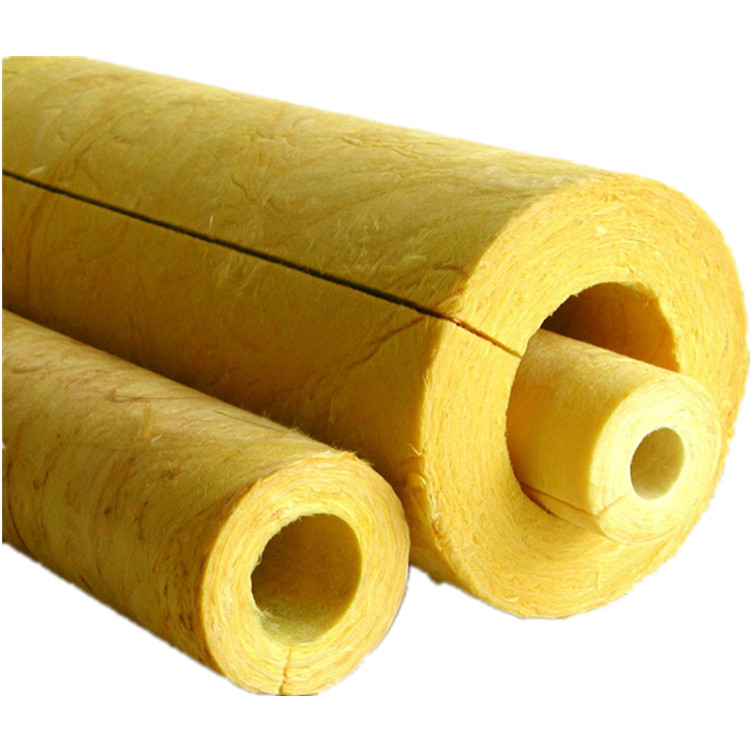

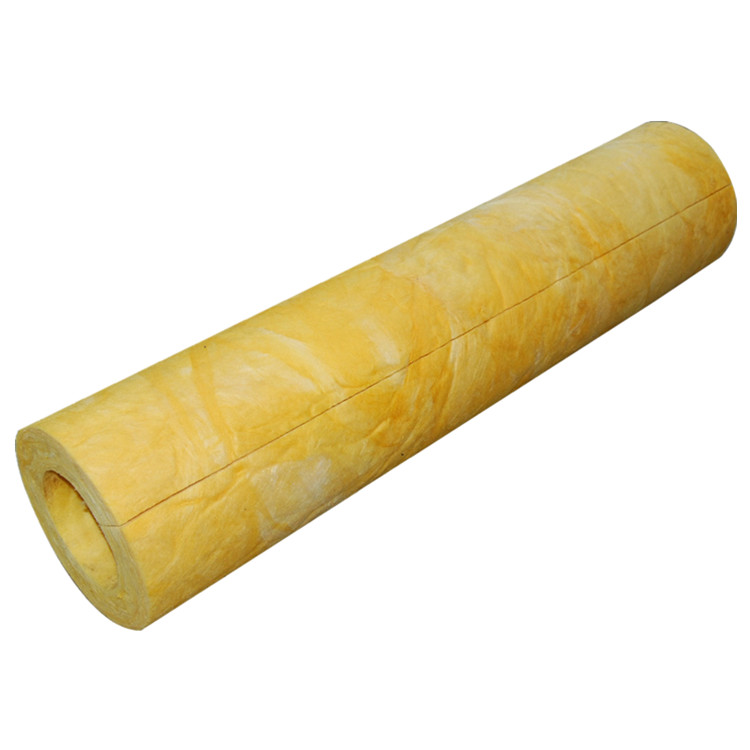

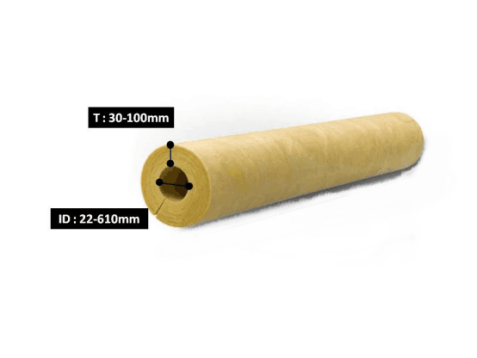

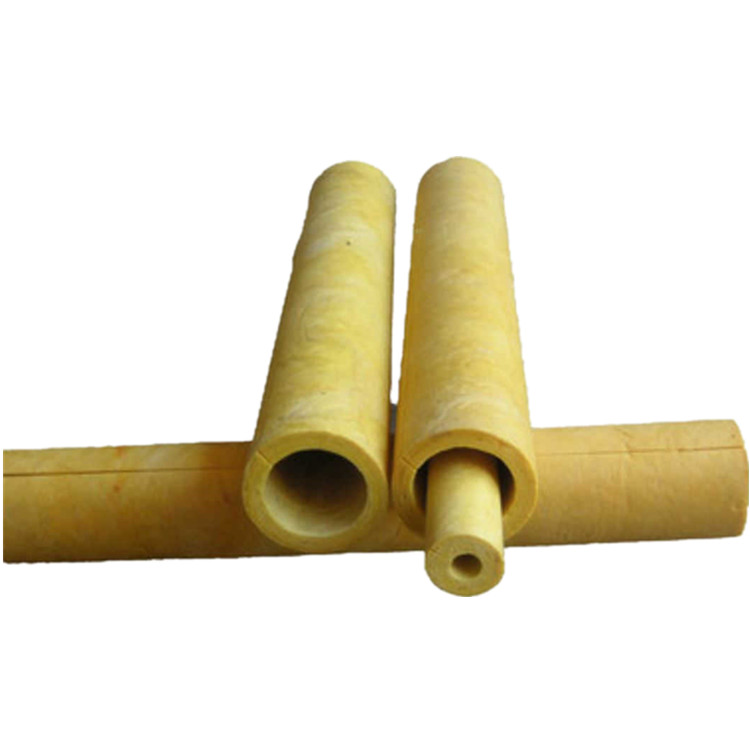

High density fireproof glass wool tube/pipe acoustic ceiling
Payment Terms: TT or LC
Ref Price : 1-5 USD/METERS
Sino-Sources Service Pledge
-
Quality Product
-
Credit Purchasing
-
Credit Rating
-
Timely Delivery
-
Order On-line Tracking
-
Credit Services
Quick Details
-
Place of Origin：Tianjin China (Mainland)
-
Brand Name：wmdtrade
-
Type：Other Heat Insulation Materials
-
Color：Yellow
-
Heat conductivity (w/m. k)：≤0.043
-
Density(kg/m3)：10-92
-
Fire resistance：Class A
-
Hydrophobicity：≥98%
-
Highest Working Temperature：380℃
-
Use of temperature：-120℃-400℃
-
Port：Tianjin xingang
Glass wool description：
Glass wool mainly includes glass wool board, blanket and pipe.They are widely used for insulation,ventilation and the adjustment of air-conditioners in commercial industries and residential construction .Glass Wool products have the characteristics of good heat insulation and sound absorption, low construction cost,energy-saving insulation, sound controlling and improving the indoor air quality.
Glass wool construction specifications:
|
density(kg/m3) |
width(mm) |
thickness(mm) |
length(m) |
packing/roll |
|
10-72 |
600 |
25-200 |
3-20 |
1 roll |
|
10-72 |
1100 |
25-200 |
3-20 |
1roll |
|
10-72 |
1150 |
25-200 |
3-20 |
1roll |
|
10-72 |
1200 |
25-200 |
3-20 |
1roll |
|
10-72 |
1200 |
25-200 |
3-20 |
1roll |
Technical Parameters of glass wool construction materials:
|
item |
unit |
index |
measured value |
remarks |
|
bulk density |
kg/m3 |
10-96 |
10-96 |
GB/T 13350-2000 |
|
average diameter of fibers |
m |
< 8.0 |
4.0-6.0 |
GB/T 13350-2000 |
|
moisture resistivity |
% |
> 98 |
> 98.5 |
JISA9512-2000 |
|
thermal conductivity |
W/m.k |
0.049-0.042 |
0.045-0.032 |
GB/T 13350-2000 |
|
incombustibility |
incombustible |
up to standard (Grade A) |
GB/T 13350-2000 |
|
|
sound absorption coefficient |
1.03product reverberation positioning 24kg/m32000HZ |
GB/J47-83 |
||
|
Max. working temperature |
400 |
410 |
GB/T 13350-2000 |
WanMaiDe estabished in 2001, a leading manufacturer and exporter of Glass Wool, Rock Wool, Rubber Foam, Foam Glass,Extrude Polystyrene/XPS, Phenolic foam board insulation in China. After more than 20 years' development, we totally have 10 producing lines for glass wool insulation,5 producing lines for rock wool insulation and more than 30 producing lines for rubber foam insulation.
We had mad OEM production for WANMAIDE which are popular due to the high quality and competitive price all over the world.
