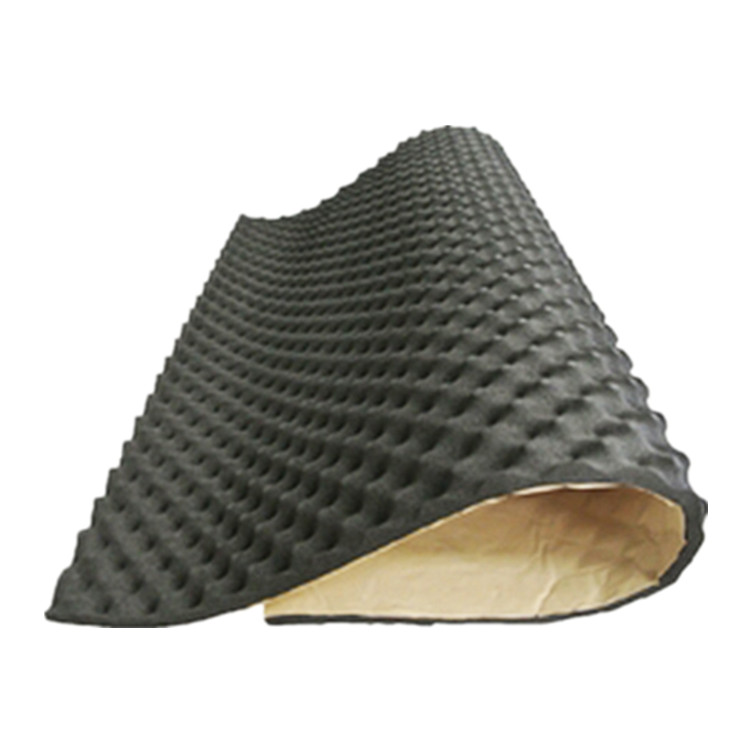

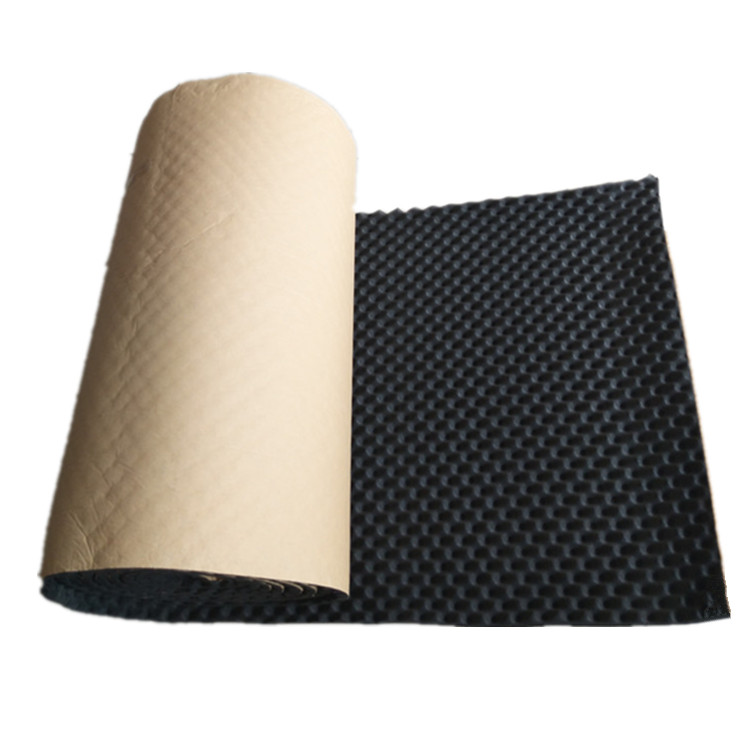

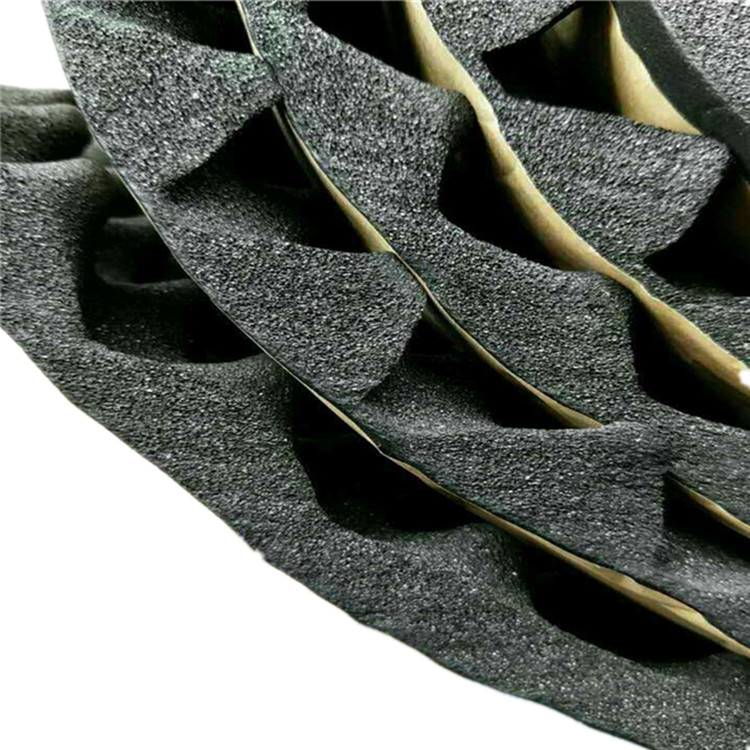

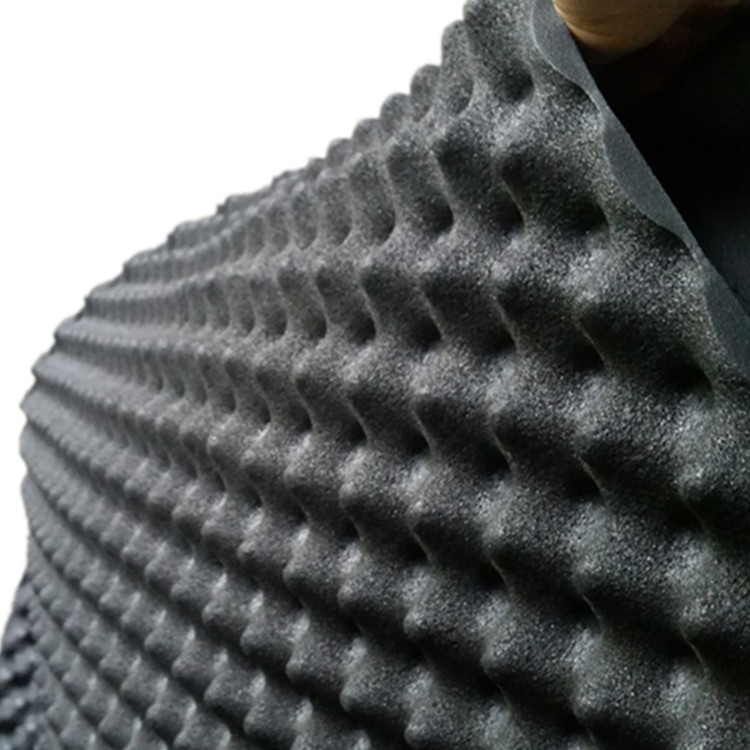

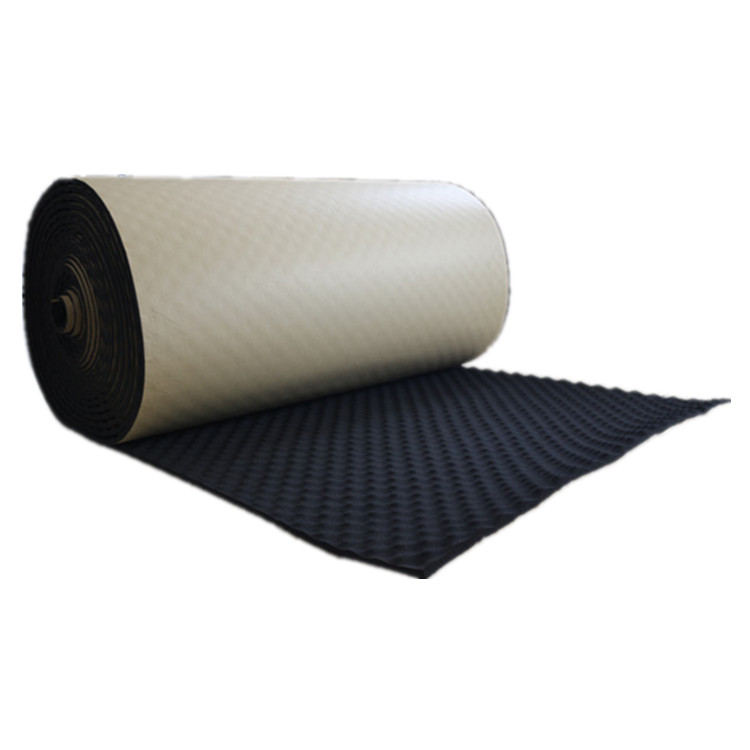

insulation insulation flexible rubber foam sheet with adhesive paper

Product Description



Item	Specification
Material	main raw material: NBR/PVC
Average temperature Conductivity factor	the heat-insulating and heat preservation of shell of big tanks and piping in the construction, business and industry, heat insulation of air conditioners, joint pipes of household air conditioners and automobile air conditioners; protection of sport equipment, in cushions and diving suits.
Water absorption ratio in vacuum	≤10
Flammability Oxygen index Vertically burning SDR	Flame retardant Class B1 ≥32 ≤30s ≤250mm ≤75
Density	40~80Kg/m3
Aging resistance	Slightly crumpling, no cracks, no pin holes, not deforming.
Products type	Pipe& sheet
Color	Black
Regular size	Pipe: with ID 6-108mm Sheet:with thickness 10-30mm
Packing	1.PE/carton packing 2. As per customers' request
Delivery time	Within 3-7 days
Port of loading	China main port



  Foamax rubber foam are used for the heat-insulating and heat-preservation of shell of big tanks and piping in the construction, business and industry, heat insulation of air conditioners ,heat insulation of joint pipes of house air conditioners and automobile air conditioners.Foamax rubber foam are widely used in the protection of sport equipmen,in cushions and diving suits. Foamax rubber foam are used in sound isolation of wall planking,sound absorption in air ducts ,and sound absorbing decorations in resistance and pressure relief in instruments and equipment.



Feature:

1,It is divided into red, blue, easy to install equipment to distinguish and maintenance.

2,It reached the Chinese B-class fire rating: to the national GB8624-2012 standard B-class inspection.

3,Moisture resistance factor ≥ 6000, water vapor into the material, to extend the material life.

4,Low thermal conductivity: cell uniform and fine, can lock more air, lower thermal conductivity and more stable (thermal conductivity is an important indicator of the insulation effect of insulation materials, the lower the thermal conductivity, the better the thermal insulation performance. 0 ℃, the material thermal conductivity of 0.032w / mk).

5,Closed-cell foam, moisture-proof performance: with a perfect closed-cell foam structure, all the cells independent of each other, the non-Unicom of the air bubbles to form a closed air layer, effectively improve the product insulation performance.

6,Flexible performance: the construction of easy to bend and irregular pipes, and can save labor and materials, due to a high degree of flexibility, which can minimize the chilled water and hot water pipes in the course of the use of vibration.

7, Easy to install, can be reused, when the equipment overhaul, peeled off the material can be reused, the same performance.







Range of Specifications of Tubing Products

Outer Diameter(in.)	Inner Diameter(mm)	9mm TK(1.8m/piece)	13mm TK(2m/piece)	19mm TK(2m/piece)	25mmTK(2m/piece)
1/4	6	6*9	6*13
3/8	10	10*9	10*13	10*19
1/2	13	13*9	13*13	13*19
5/8	16	16*9	16*13	16*19
3/4	19	19*9	19*13	19*19
7/8	22	22*9	22*13	22*19	22*25
1	25	25*9	25*13	25*19	25*25
1 1/8	28	28*9	28*13	28*19	28*25
1 1/4	32/34	32/34*9	34*13	34*19	34*25
1 3/8	35	35*9
1 5/8	42/43	42/43*9	43*13	43*19	43*25
1 7/8	48	48*9	48*13	48*19	48*25
2 1/8	54	54*9
2 3/8	60	60*9	60*13	60*19	60*25



Range of Specifications of Sheet Products

Thickness	10mm	15mm	20mm	25mm	30mm
M/piece	20m	20m	10m	10m	10m

30 years history
26 production lines
5 subsidiary factories
333600 square meters
290 million registered capital
100 thousand tons glass wool annual out put
1600 thousand cubic meters rubber foam annual out put

We firmly ensure that each of our Australia standrad fiber glass wool batts factory! Glass wool manuacturer / roof insulation manuacturer with ISO , CE products is strictty commited according to intermatinal standrad of CE/SGS/BRANZ ect.



Packaging Details
1.Plastic bag,carton and vacuum packaging for mineral glass wool insulation.
2.According to the customer's request for mineral glass wool insulation.

Delivery Time
Within 5-7 days after receiving deposit of glass wool products.
