Manufacturers supply fireproof phenolic foam insulation board for wall insulation phenolic air duct

Payment Terms: TT or LC

Ref Price : 1-10 USD/TON

Supply Capability : 10000 TON

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Quick Details

  • Place of Origin:
    China (Mainland)
  • Certificate:
    ISO9001, ISO14001, OHSAS18001
  • Color:
    Red,pink,yellow,green
  • Sample:
    Free

Product introduction:

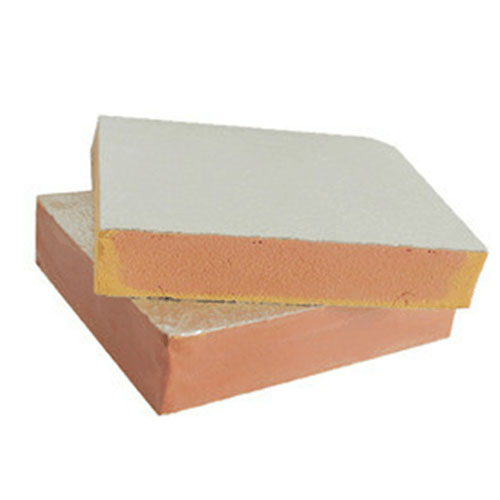

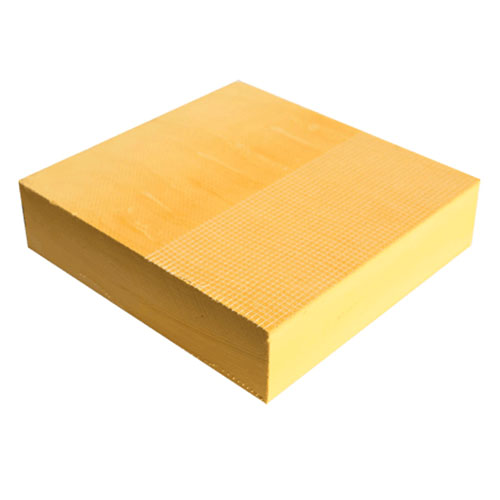

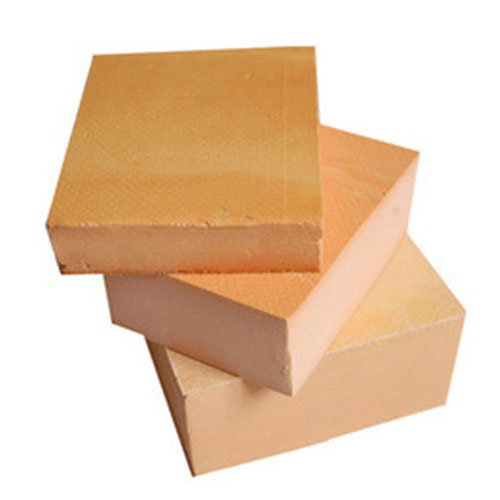

Phenolic foam for Framing Board is a ragid insulation board used for timber and steel framing
System,consisting of a rigid thermoset modified resin insulation core,covered with low emissivity
Composite foil on both sides,improving thermal resistance in adjacent unventilated cavities.The
Product is manufacturered with a 0 ODP and low GWP blowing agent,which makes it very eco-

friendly.It could be used to control patential condensation problems,especially if combinedwith a vapor-resistant layer placed on the warm side of the insulation.It is easily cut by using a sharp knife or a toothed saw,always taking care of accurate trimming.It is best kept in indoor conditions and when stored outdoors,it must be properly covered and protected by using polythene sheet,for example,in order to keep it drying,the product is complete safe to use and will be effect your health.

Product features:
Safe and easy to handle and install.
● Water vapor resistant.
● The core is Class 0 fire rated.
● Non-deleterious.
● Very durable,depending on the structure and conditions of use.
● Mold and microbial growth resistant.
● Unaffected by air filtration.
● High performance thermoset rigid insulation.
● Applicable in both new build and refurbishment projects.
● Environmentally friendly,with 0 ODP and low GWP.

Length:

1000mm(other length are available)

Width:

1200mm/600mm

Thickness range:

60/70/80/90/100/110/120/130mm

Panel surface:

Both side embossed aluminum foil or bare

Aluminum foil thickness:

80/80 micron, 60/60 micron

Density:

40-80 kg/m3(other density are available)

Thermal conductivity:

0.021~0.030 W/(M·K)

Water absorption rate:

1.9%

Dimension change rate:

0.3%

Working temperature:

-100°C to 150°C

Combustion performance:

Class 0 (BS476 Part 6 and 7), Class A (ASTM E84)

Product Advantage

1. Small coefficient of heat conductivity and good capability of heating preservation

2. Outstanding effect of energy-saving.

3. Excellent fireproof capability. Excellent sound absorption and sound insulation capability.

4. Green building materials and no harm for body.






WanMaiDe estabished in 2001, a leading manufacturer and exporter of Glass Wool, Rock Wool, Rubber Foam, Foam Glass,Extrude  Polystyrene/XPS, Phenolic foam board insulation in China. After more than 20 years' development, we totally have 10 producing lines for glass wool insulation,5 producing lines for rock wool insulation and more than 30 producing lines for rubber foam insulation.


We had mad OEM production for WANMAIDE which are popular due to the high quality and competitive price all over the world.
