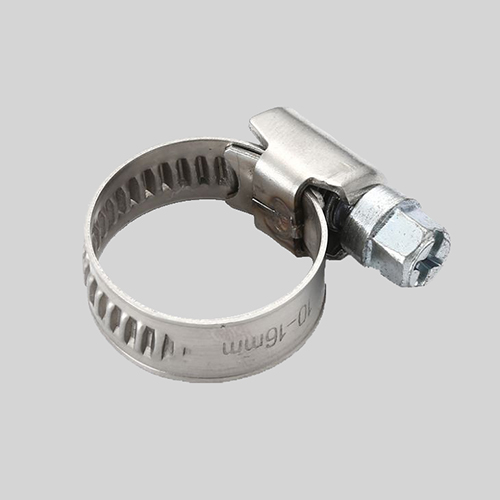

New China Manufacturer Germany Type Hydraulic Stainless Steel Hose Clamp Prices
Payment Terms: TT or LC
Ref Price : 0.01-10 USD/PIECE
Sino-Sources Service Pledge
-
Quality Product
-
Credit Purchasing
-
Credit Rating
-
Timely Delivery
-
Order On-line Tracking
-
Credit Services
Quick Details
-
Place of Origin：Tianjin,China
-
Brand Name：Shunfa
-
Usage：Pipe Clamp
-
Material：Stainless Steel
-
Structure：Swivel Clamp
-
Standard：AISI, ASTM, BS, DIN, GB, JIS
-
Diameter：6-300mm, or as customer's requirment
-
Band width：8mm,10mm,12mm,12.7mm
-
Thickness：0.6-0.8mm ,or as your requirments
-
Delivery time：About15 working days after T/T at sight
-
Technique：hot rolled,pickled,cold drawn,forge
-
Packaging：Standard export package or as your requirements
-
Surface Treatment：Dacromet, Black Coating, Galvanized
Product Description
|
Product Name |
Factory Price SS316 Germany Type Hose Clamp 18mm-32mm |
|
Material |
201/304/316 |
|
Bandwidth |
9mm or customized |
|
Standard |
AISI, ASTM, BS, DIN, GB, JIS |
|
Brade |
Jiangsu Baojun |
|
Used |
Pipe connection |
|
Payment term |
L/C, T/T, Paypal, Western Union,etc. |

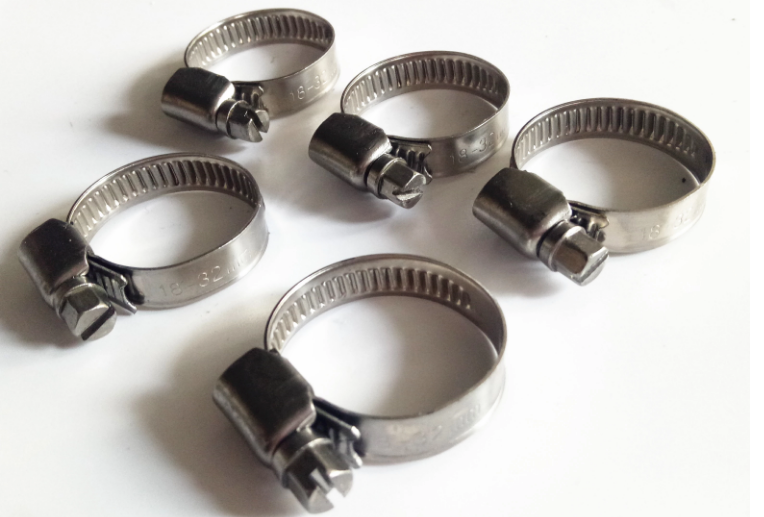

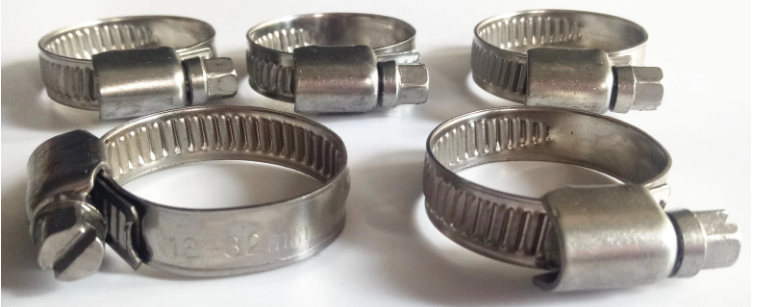

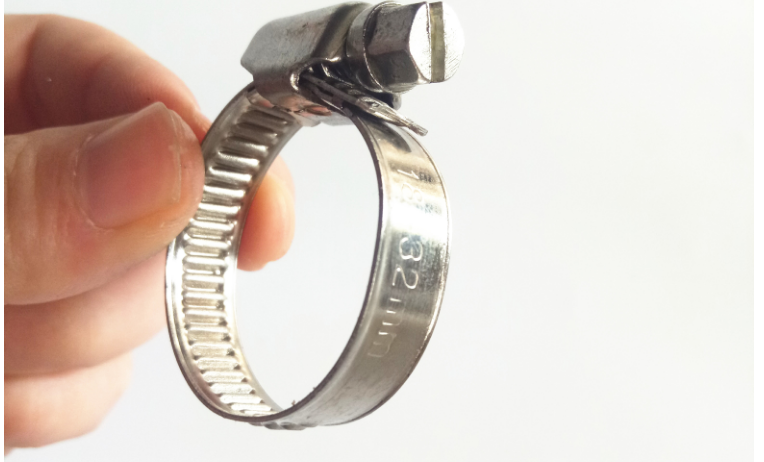

Product Show
Normal Size
Please choose the size you need.
Specification as follows:
|
Item |
Diameter |
Material |
Bandwidth |
|
1 |
8 - 16 |
201/304/316 |
9mm or Customized |
|
2 |
11 - 20 |
201/304/316 |
|
|
3 |
13 - 23 |
201/304/316 |
|
|
4 |
14 - 27 |
201/304/316 |
|
|
5 |
18 - 32 |
201/304/316 |
|
|
6 |
21 - 38 |
201/304/316 |
|
|
7 |
21 - 44 |
201/304/316 |
|
|
8 |
27 - 55 |
201/304/316 |
|
|
9 |
33 - 57 |
201/304/316 |
|
|
10 |
40 - 63 |
201/304/316 |
|
|
11 |
46 - 70 |
201/304/316 |
|
|
12 |
52 - 76 |
201/304/316 |
|
|
13 |
59 - 82 |
201/304/316 |
|
|
14 |
65 - 82 |
201/304/316 |
|
|
15 |
72 - 95 |
201/304/316 |
|
|
16 |
78 - 101 |
201/304/316 |
|
|
17 |
84 - 108 |
201/304/316 |
|
|
18 |
91 - 114 |
201/304/316 |
|
|
19 |
105 - 127 |
201/304/316 |
|
|
20 |
118 - 140 |
201/304/316 |
|
|
21 |
130 - 152 |
201/304/316 |
|
|
22 |
141 - 165 |
201/304/316 |
|
|
23 |
155 - 178 |
201/304/316 |
|
|
24 |
175 - 197 |
201/304/316 |
|
|
25 |
194 - 216 |
201/304/316 |
|
|
26 |
213 - 235 |
201/304/316 |
|
|
27 |
232 - 254 |
201/304/316 |
|
|
28 |
251 - 273 |
201/304/316 |
|
|
29 |
270 - 292 |
201/304/316 |
|
|
30 |
289 - 311 |
201/304/316 |
Chemical Composition
|
MATERIAL |
ELEMANTS |
||||||||
|
C |
Cr |
Ni |
Mn |
P |
S |
Mo |
Si |
N |
|
|
201 |
<0.15 |
16.0-18.0 |
3.5-5.5 |
5.5-7.5 |
<0.06 |
<0.03 |
- |
<1.0 |
<0.25 |
|
202 |
<0.15 |
17.0-19.0 |
4.0-6.0 |
7.5-10.0 |
<0.06 |
<0.03 |
- |
<1.0 |
<0.25 |
|
301 |
<0.15 |
16.0-18.0 |
6.0-8.0 |
<2.0 |
<0.065 |
<0.03 |
- |
<1.0 |
- |
|
303 |
<0.15 |
17.0-19.0 |
8.0-10.0 |
<2.0 |
<0.20 |
<0.03 |
- |
<1.0 |
- |
|
304 |
<0.07 |
17.0-19.0 |
8.0-10.0 |
<2.0 |
<0.035 |
<0.03 |
- |
<1.0 |
- |
|
304L |
<0.03 |
18.0-20.0 |
8.0-10.0 |
<2.0 |
<0.035 |
<0.03 |
- |
<1.0 |
- |
|
309S |
<0.08 |
22.0-24.0 |
12.0-15.0 |
<2.0 |
<0.035 |
<0.03 |
- |
<1.0 |
- |
|
310S |
<0.08 |
24.0-26.0 |
12.0-15.0 |
<2.0 |
<0.035 |
<0.03 |
- |
<1.0 |
- |
|
316 |
<0.08 |
16.0-18.5 |
10.0-14.0 |
<2.0 |
<0.035 |
<0.03 |
2.0-3.0 |
<1.0 |
- |
|
316Ti |
<0.08 |
16.0-19.0 |
11.0-14.0 |
<2.0 |
<0.035 |
<0.03 |
1.8-2.5 |
<1.0 |
- |
|
316L |
<0.03 |
16.0-18.0 |
12.0-15.0 |
<2.0 |
<0.035 |
<0.03 |
2.0-3.0 |
<1.0 |
- |
|
317L |
<0.08 |
18.0-22.0 |
11.0-15.0 |
<2.0 |
<0.035 |
<0.03 |
3.0-4.0 |
<1.0 |
- |
Packing & Delivery
Tianjin Shunfa Universal Clamp Co.,Ltd was founded in 2002. The manufacture covers an area of 340,000 square meters, with a construction area of 250,000 square meters and 1000 employees.The company has great experience in the clamp production industry. Years of technology and quality assurance have enabled us to have a broad customer base in the globle market.
The company's main products are: stainless steel clamp standard parts and non-standard, stainless steel hose clamps, rubber and other products, and exported to Asia, Africa, Europe, the Middle East, the Amerias, and many parts of the world.
We have a first-class technology research and development demand that we provide our customers with the best quality products and services.We sincerely hope to establish long-term trade links with customers from all over the world. If you know more about our company, please contact :shunfa@sino-sources.com
Shunfa Universal Clamp main produce various specifications hose clamp,commit to provide best quality hose clamps products for overseas users.
