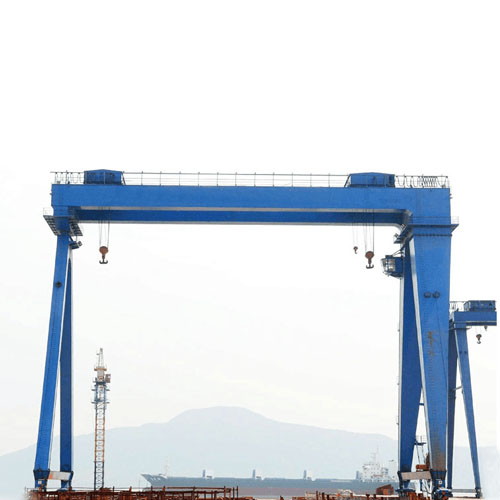

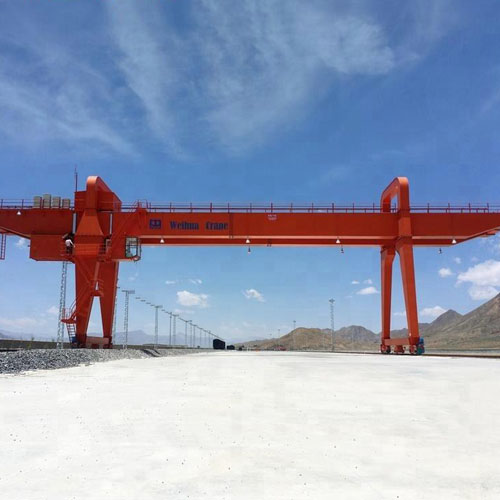

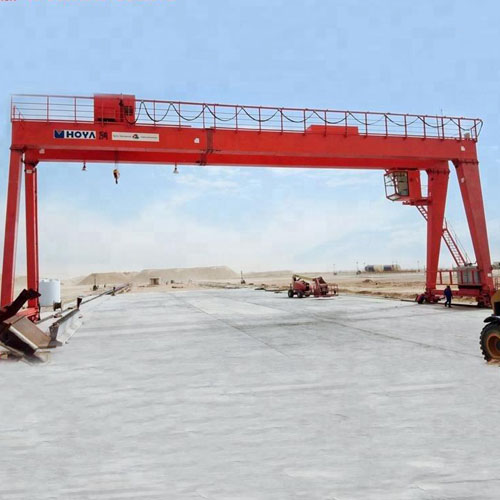

50 Ton New Rail Mounted Double Girder Gantry Crane Price

Payment Terms: TT or LC

Ref Price : 3000-50000 USD/SET

Supply Capability : 10000 SET

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Quick Details

  • Max. Lifting Height：
    6m
  • Span：
    10-20m
  • Feature：
    Gantry Crane
  • Condition：
    New
  • Application：
    Outdoor;Workshop;Plant
  • Rated Loading Capacity：
    10ton
  • Rated Lifting Moment：
    can customized
  • Max. Lifting Load：
    50ton
  • Place of Origin：
    Henan, China (Mainland)
  • Brand Name：
    WEIHUA CRANE
  • Model Number：
    Double girder gantry crane
  • Certification：
    ISO CE SGS GOST
  • Features：
    Double Girder Gantry Crane Price 50 Ton
  • Type：
    Box Girder
  • Main electrical parts：
    Schneider and Siemens
  • Lifting mechanism：
    Electric Hoist or trolley
  • Power Source：
    3 Phase 380V 50hz or required by customered
  • Control Method：
    Remote or pendent control on ground
  • Work Class：
    A4
  • Color：
    Yellow or required by customered
  • Safety Devices：
    Included
  • Quality Assurance：
    Can accept return goods if any quality problem
  • After-sales Service：
    Engineers available to service machinery overseas
  • Warranty：
    12 Months

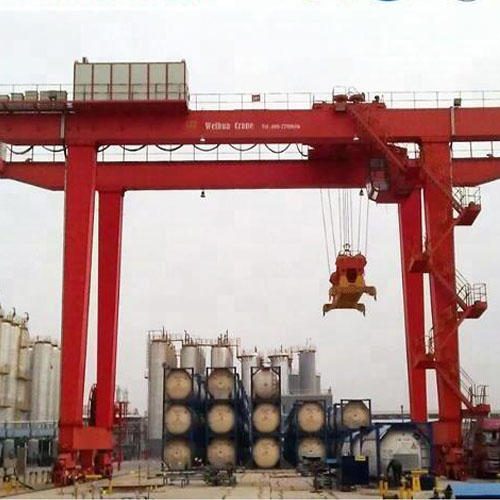

Product Name: New Rail Mounted Double Girder Gantry Crane Price 50 Ton

Lifting capacity: 50t or Design

Span: 18~36m

Container dimensions: 20', 40', 45'



Rail Mounted Double Girder Gantry Crane Price 50 Ton is mainly consists of the steel structure, lifting mechanism, micro-transfer mechanism, spreader anti-sway system, crane travelling mechanism, container spreaders, electrical equipment, and other necessary auxiliary equipments.

The Rail Mounted Double Girder Gantry Crane Price 50 Ton adopts frequency conversion, PLC control system and CMMS fault detection system. Main standard reference: GB/T19683-2005, JT/T566-2004, and ISO standard of International Standardization Organization, European FEM, Japan JIS standard.

Features of Rail Mounted Double Girder Gantry Crane Price 50 Ton

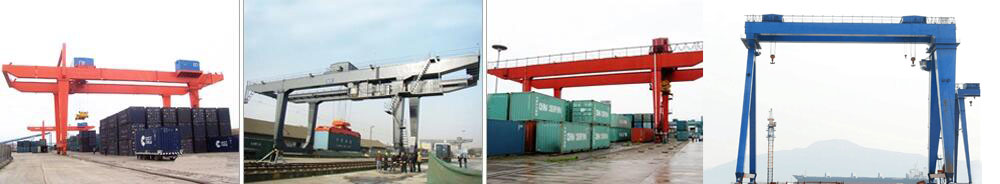

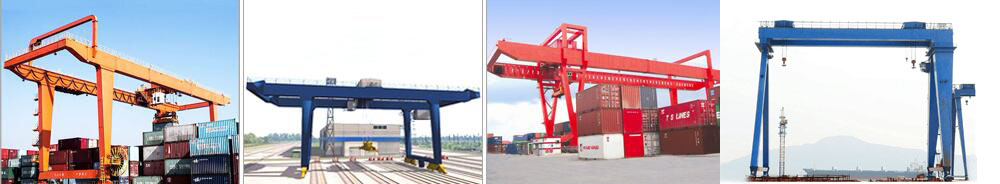

1. This crane can be used in inland terminals, container yard, rail freight station, coastal freight yard and frontier wharf.
2. Adopt dedicated container spreaders which can handle 20 feet, 40 feet and 45 feet containers.
3. Electrical drive system is full digital AC frequency conversion, PLC control speeding, CMS intelligent monitoring and management system, the running state real-time monitoring equipment.
4. The upper trolley can rotate 270 degree for easy load and unload.
5. Three-in-one reducer is adopted for long travel and cross travel, easy maintenance.
6. Safety protection: Anti-breaking shaft, wind warning, anti-tipping, etc.

Depending on the constitution of main girder, outriggers and anti-sway device, Rail Mounted Double Girder Gantry Crane Price 50 Ton can be divided into different types.

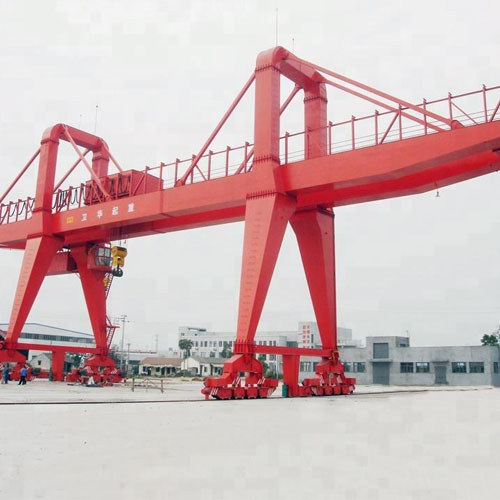

1. Double cantilever gantry crane has big room between its outriggers for containers to pass through. Usually opening widely at upper parts to form a shape of U and combining with the girder forming a shape of N.
2. Non-cantilever crane has a simple structure because of containers do not need to pass through the room between its outriggers.


The Data of Products:

Model



LJ35/40-23



Light Type LJ40-23



Lifting capacity



(without spreader) (t)



35,40



40



Work level



A7,A8



A6,A7



Span (m)



23.47



23.47



Lifting Height (m)



12.2~17.8



16.5



Stack layer



3/4~5/6



5/6



Container size



20',40',45'



20',40',45'



Spreader rotation angle



±5°



±5°



Lifting  (m/min)



13/26,23/52



12/18,18/28



Trolley travelling  (m/min)



50,70



24



Crane travelling (m/min)



Full load-90,



no load-130



Full load-20,



no load-40



Max. wheel load (kN)



310



310

Notes:The specification could be designed to meet customer's demand

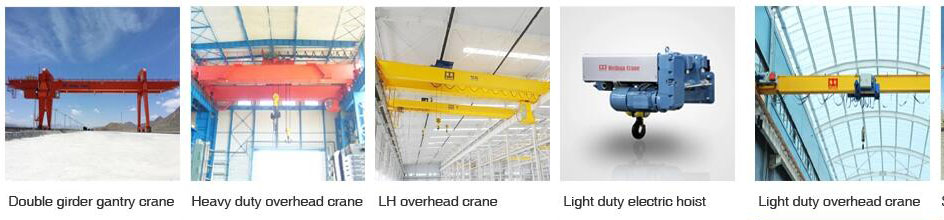

More Products:

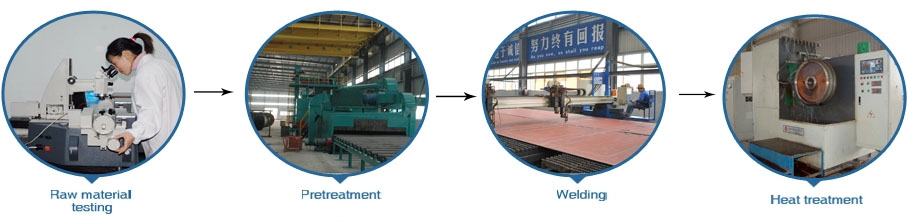

Product Processing:



Customer visiting:



Weihua Group, a leading crane manufacturing company in China, was Founded in 1988. We has been committed to heavy machinery researching and marketing.


The main product covers shipbuilding gantry crane, lifting machinery, port container crane, heavy mining machinery and construction machinery, etc. The whole coverage of Weihua Group is 3,420,000 m2 with 6,800 employees.


Weihua adheres to scientific and technological innovation and owns a 600-people R&D team, 494 patents, CNAS laboratory, etc. For the cranes, Weihua have made many breakthroughs which include anti-sway crane system, CNC high precision positioning crane system, self-climbing crane for wind power maintenance and so on.


In recent years, Weihua cranes have been employed to serve China's Aerospace Engineering projects such as launching of Shenzhou spacecraft, Long March carrier rockets and Tiangong space laboratory. You can also find Weihua products in the fields of manufacturing, metallurgy, nuclear power, railway,port, petrochemical and wind power.


Weihua products also find its places in the global markets and won much praise from108 countries like America, Japan, Russia, Singapore, Korea, Thailand, Malaysia, Mexico, etc.


Our success comes from customers' success. Welcome to Weihua.
