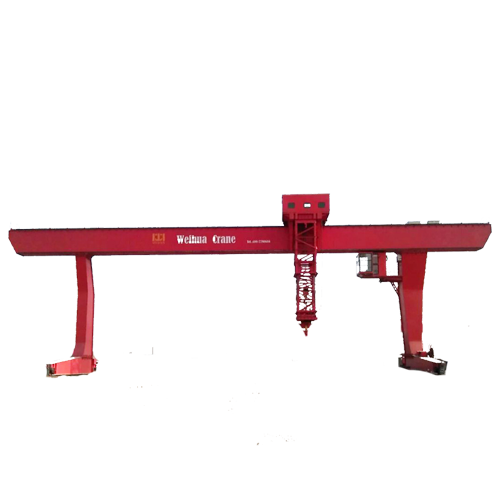

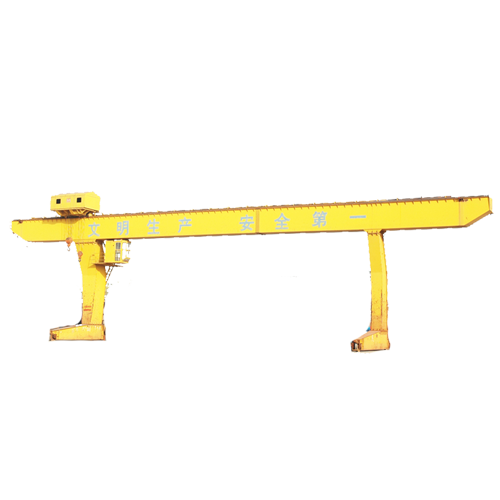

Perfect Mobile L Type 20t Singe Beam Gantry Crane
Payment Terms: TT or LC
Ref Price : 1000-10000 USD/SET
Sino-Sources Service Pledge
-
Quality Product
-
Credit Purchasing
-
Credit Rating
-
Timely Delivery
-
Order On-line Tracking
-
Credit Services
Quick Details
-
Place of Origin：Henan, China (Mainland)
-
Brand Name：WEIHUA CRANE
-
Certification：ISO CE SGS GOST
-
Lifting mechanism：Wire Rope Electric Hoist
-
Max. Lifting Height：12m
-
Span：18-22m, 30-35m
-
Max. Lifting Load：50t
-
Product name：20t Singe Beam Gantry Crane
-
Color：Red, Orange or design
-
Power Source：3 Phase 380V 50hz or design
-
Control Method：Remote, Handle, Wireless or design
-
Main electrical parts：Siemens and Schneider
-
Crane feature：Easy Operated Single Girder Bridge Crane
-
Work duty：A5
-
Main lifting Speed：5.9-9.2m/min
-
Crane travelling：38.6-46.3m/min
-
Warranty：12 Months
Introduction

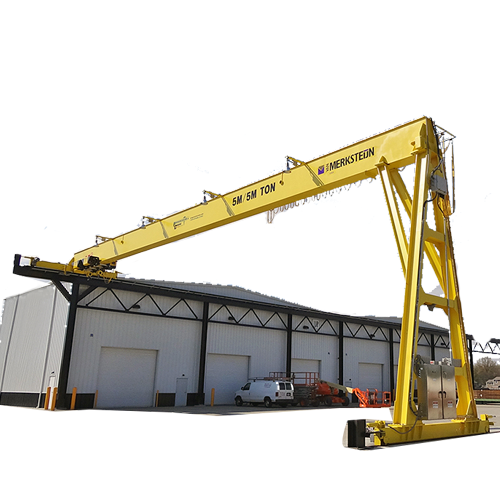

Product Name: 20t Singe Beam Gantry Crane
Lifting Capacity: 5t-50/10t
Span: 18-22m, 30-35m
Lifting Height: 10, 11, 12m

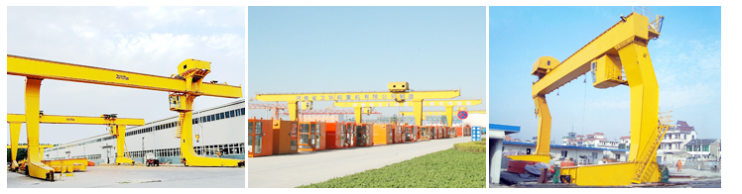

20t single beam gantry crane is applied for handling and convey operation outdoors, or at warehouse, stock ground, railway station, sea port cargo area, etc. This 20t single beam gantry crane can be also used to do some special operations with a variety of special spreaders.
Power supply can be two forms: cable car and cable reel, customers can choose one of them. And the specifications, installation location of the cable reel can be based on the specific situation.
This 20t single beam gantry crane is equipped with closed cab, and there is cabs with heat preservation for selection. The 20t single beam gantry crane has the features of easy installation, big clearance, good operation vison, integrated console control and reasonable whole institutional arrangement.
Features of 20t single beam gantry crane:
1. Box type girder, L type legs with weld structure, Increasing he work space, and convenient for installation and maintenance;
2. Trolley power supply adopts profiled rails, safety slide line and the cable conductive device system;
3. Components standardization, seriation and generalization;
4. Crane power supply can be from cable reel (left and right) and sliding line( left and right);
5. Good operation vision of cab, equipped the internal linkage control console, flexible and comfortable operation, install of fan, heater, cooler, air-conditions and intercom according to the customers' requirements;
6. Customized according to the users' needs of working environment, types of power source and the other technical requirements. Also design and manufacture span according to users' requirements.
production specification
|
Lifting capacity (t)
|
Span (m)
|
Lifting height (m)
|
Work duty
|
Main lifting (m/min)
|
Deputylifting (m/min)
|
Trolley travelling (m/min)
|
Crane travelling (m/min)
|
Power (KW)
|
Rail type
|
|
5
|
18~22
|
10
|
A5
|
9.2
|
--
|
36.6
|
46.3
|
27.8
|
43Kg/m
|
|
26~35
|
11
|
40.1
|
36.8
|
||||||
|
10
|
18~22
|
10
|
8.5
|
--
|
39.7
|
39.6
|
38
|
||
|
26~35
|
11
|
40.1
|
47
|
||||||
|
16/3.2
|
18~26
|
10
|
7.9
|
11.2
|
39.5
|
40.1
|
64.6
|
||
|
30~35
|
11
|
47.1
|
75.6
|
||||||
|
20/5
|
18~26
|
10
|
7.1
|
9.2
|
39.3
|
40.1
|
67.3
|
||
|
30~35
|
11
|
47.1
|
78.3
|
||||||
|
32/5
|
18~22
|
10
|
6.3
|
9.2
|
38.6
|
48.2
|
85.5
|
QU80
|
|
|
26~35
|
11
|
38.6
|
93.5
|
||||||
|
50/10
|
18~26
|
10
|
5.9
|
8.5
|
38.5
|
39.7
|
141
|
||
|
30~35
|
12 |
Company Information

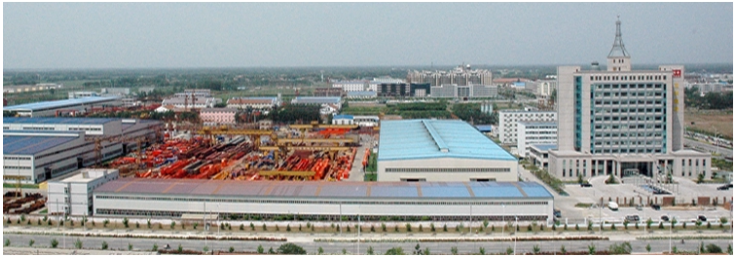

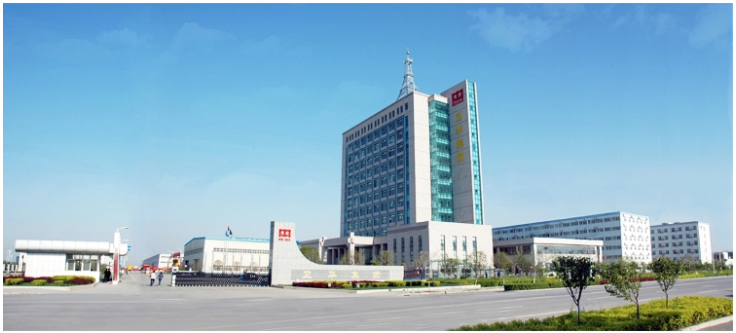

Founded in 1988, Weihua Group is a leading crane manufacturer in China. Weihua has been committed to heavy machinery researching and marketing. The main product covers lifting machinery, port machinery, mining machinery and construction machinery, etc. The whole coverage of Weihua Group is 3,420,000 m2 with 6,800 employees.
Weihua adheres to scientific and technological innovation and owns a 600-people R&D team, 494 patents, CNAS laboratory, etc. For the cranes, Weihua have made many breakthroughs which include anti-sway crane system, CNC high precision positioning crane system, self-climbing crane for wind power maintenance and so on.
In recent years, Weihua cranes have been employed to serve China's Aerospace Engineering projects such as launching of Shenzhou spacecraft, Long March carrier rockets and Tiangong space laboratory. You can also find Weihua products in the fields of manufacturing, metallurgy, nuclear power, railway,port, petrochemical and wind power.
Weihua products also find its places in the global markets and won much praise from108 countries like America, Japan, Russia, Singapore, Korea, Thailand, Malaysia, Mexico, etc.
Our success comes from customers' success. Welcome to Weihua.
Customer Visited
Weihua Group, a leading crane manufacturing company in China, was Founded in 1988. We has been committed to heavy machinery researching and marketing.
The main product covers shipbuilding gantry crane, lifting machinery, port container crane, heavy mining machinery and construction machinery, etc. The whole coverage of Weihua Group is 3,420,000 m2 with 6,800 employees.
Weihua adheres to scientific and technological innovation and owns a 600-people R&D team, 494 patents, CNAS laboratory, etc. For the cranes, Weihua have made many breakthroughs which include anti-sway crane system, CNC high precision positioning crane system, self-climbing crane for wind power maintenance and so on.
In recent years, Weihua cranes have been employed to serve China's Aerospace Engineering projects such as launching of Shenzhou spacecraft, Long March carrier rockets and Tiangong space laboratory. You can also find Weihua products in the fields of manufacturing, metallurgy, nuclear power, railway,port, petrochemical and wind power.
Weihua products also find its places in the global markets and won much praise from108 countries like America, Japan, Russia, Singapore, Korea, Thailand, Malaysia, Mexico, etc.
Our success comes from customers' success. Welcome to Weihua.
