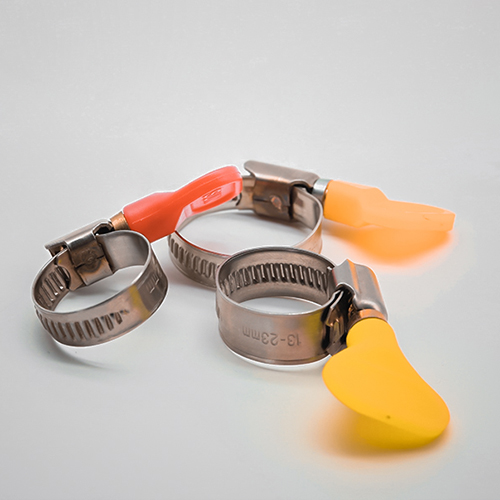

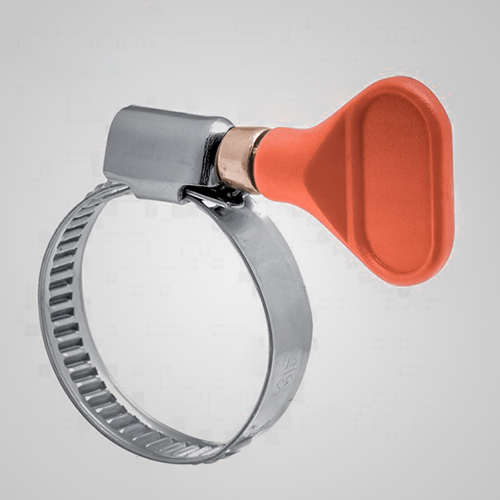

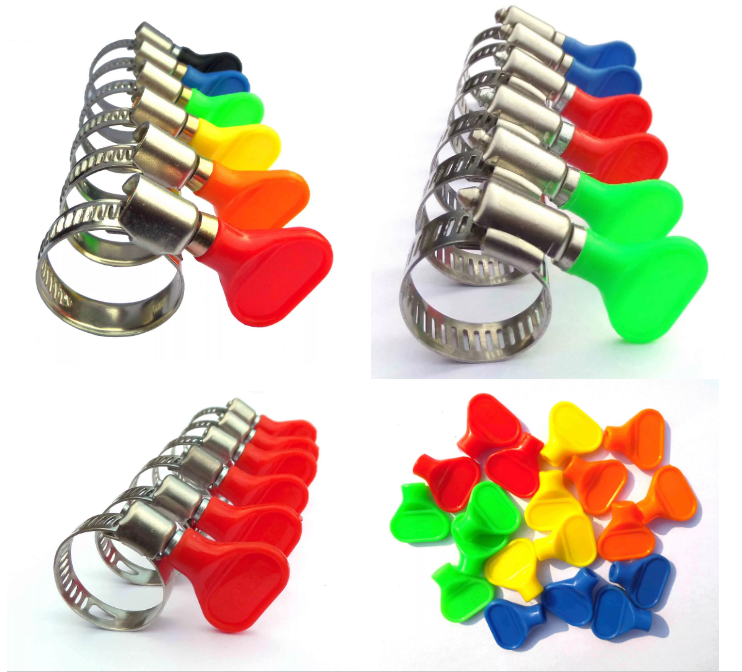

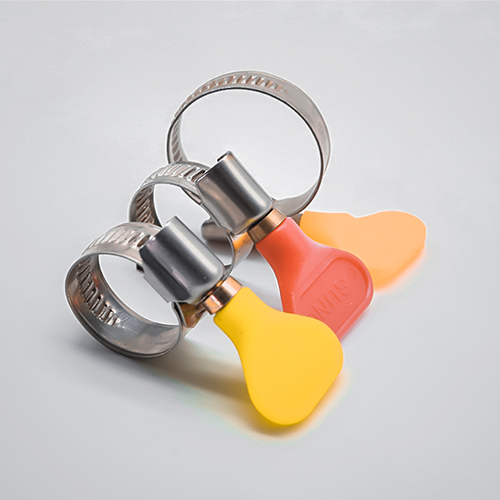

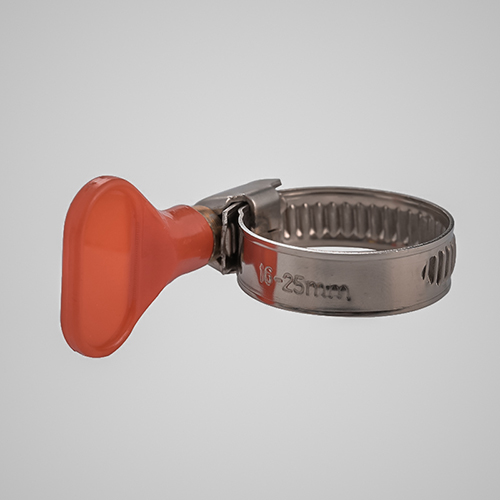

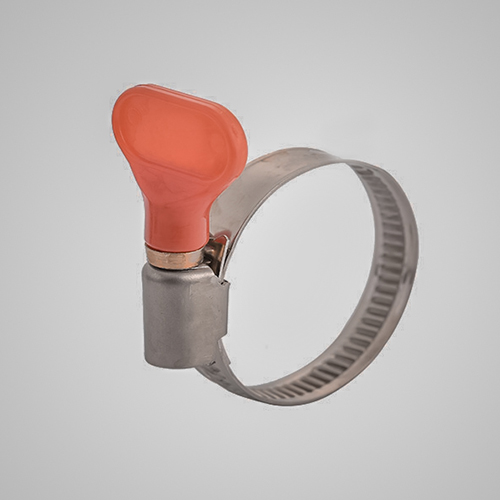

Plastic and stainless steel butterfly handle German hose clamps in various colors for sale

Payment Terms: TT or LC

Ref Price : 0.01-10 USD/PIECE

Supply Capability : 5000000 PIECE

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Quick Details

  • Measurement system：
    INCH, Metric
  • Place of Origin：
    Tianjin, China
  • Brand Name：
    Shunfa
  • Usage：
    Pipe Clamp
  • Material：
    Stainless Steel, Metal, Plastic, Aluminium
  • Structure：
    Other
  • Standard or Nonstandard：
    Other
  • W1：
    all of the band, housing and screw is galvanized steel
  • W2：
    band and housing stainless steel, screw galvanized steel
  • W4：
    all of the band, housing and screw is stainless steel
  • W5：
    all of the band, housing and screw is 316ss stainless steel

Product Description


Specifications:
Handle hose clamps classification German type handle hose clamp
American type handle hose clamp
Double wire handle hose clamp
Mini Americam type handle hose clamp
Band material Galvanized iron ,stainless steel 201,stainless steel 301,stainlesssteel 304,stainless steel 316
Handle material The color and shape of plastic handle can be made according to the customer requirements
The shape and material of stainless steel handle can be made according to the customer requirements
Band Thickness Galvanized iron Stainless steel
 0.7-0.8mm 0.6-0.65mm
Screw style W1 W2 W5/W4
Head crossed(or as you request) Hesd crossed Solt type screw
Model number As your requirement
Structure Swivel clamp
Product feature Volt-endurance;torque balance;large adjustment range
Certificate ISO9001:2008
MOQ 1000
Supply ability 3000000 pieces per month
Payment terms 30%T/T Before production and 100% before shipment
Delivery time 10-35days afer T/T at sight
package Plastic bag,carton


Product Detail

W1--all of the band, housing and screw is galvanized steel;
W2-- band and housing 200ss or 300ss stainless steel, screw galvanized steel;
W4--all of the band, housing and screw is 200ss or 300ss stainless steel;
W5--all of the band, housing and screw is 316ss stainless steel.
NO.1  German style hose clamp 9mm
Size(mm)  Item NO Bandwidth pcs/bag pcs/carton
W1 W2 W4 W5
8-12 AJDS9A812 AJDS9B812 AJDS9D812 AJDS9E812 9mm 100 2000
10-16 AJDS9A1016 AJDS9B1016 AJDS9D1016 AJDS9E1016 9mm 100 2000
12-20 AJDS9A1220 AJDS9B1220 AJDS9D1220 AJDS9E1220 9mm 100 2000
16-27 AJDS9A1627 AJDS9B1627 AJDS9D1627 AJDS9E1627 9mm 100 1000
20-32 AJDS9A2032 AJDS9B2032 AJDS9D2032 AJDS9E2032 9mm 100 1000
25-40 AJDS9A2540 AJDS9B2540 AJDS9D2540 AJDS9E2540 9mm 50 1000
30-45 AJDS9A3045 AJDS9B3045 AJDS9D3045 AJDS9E3045 9mm 50 1000
32-50 AJDS9A3250 AJDS9B3250 AJDS9D3250 AJDS9E3250 9mm 50 1000
40-60 AJDS9A4060 AJDS9B4060 AJDS9D4060 AJDS9E4060 9mm 20 1000
50-70 AJDS9A5070 AJDS9B5070 AJDS9D5070 AJDS9E5070 9mm 20 500
60-80 AJDS9A6080 AJDS9B6080 AJDS9D6080 AJDS9E6080 9mm 20 500
70-90 AJDS9A7090 AJDS9B7090 AJDS9D7090 AJDS9E7090 9mm 20 500
80-100 AJDS9A80100 AJDS9B80100 AJDS9D80100 AJDS9E80100 9mm 20 500
90-110 AJDS9A90110 AJDS9B90110 AJDS9D90110 AJDS9E90110 9mm 20 500
100-120 AJDS9A100120 AJDS9B100120 AJDS9D100120 AJDS9E100120 9mm 20 500
110-130 AJDS9A110130 AJDS9B110130 AJDS9D110130 AJDS9E110130 9mm 20 250
120-140 AJDS9A120140 AJDS9B120140 AJDS9D120140 AJDS9E120140 9mm 20 250
130-150 AJDS9A130150 AJDS9B130150 AJDS9D130150 AJDS9E130150 9mm 20 250
140-160 AJDS9A140160 AJDS9B140160 AJDS9D140160 AJDS9E140160 9mm 20 250
150-170 AJDS9A150170 AJDS9B150170 AJDS9D150170 AJDS9E150170 9mm 20 250
160-180 AJDS9A160180 AJDS9B160180 AJDS9D160180 AJDS9E160180 9mm 20 250
170-190 AJDS9A170190 AJDS9B170190 AJDS9D170190 AJDS9E170190 9mm 20 250
180-200 AJDS9A180200 AJDS9B180200 AJDS9D180200 AJDS9E180200 9mm 20 250
NO.2  German style hose clamp 12mm
Size(mm)  Item NO Bandwidth pcs/bag pcs/carton
W1 W2 W4 W5
12-20 AJDS12A1220 AJDS12B1220 AJDS12D1220 AJDS12E1220 12mm 100 1000
16-27 AJDS12A1627 AJDS12B1627 AJDS12D1627 AJDS12E1627 12mm 100 1000
20-32 AJDS12A2032 AJDS12B2032 AJDS12D2032 AJDS12E2032 12mm 100 1000
25-40 AJDS12A2540 AJDS12B2540 AJDS12D2540 AJDS12E2540 12mm 50 1000
30-45 AJDS12A3045 AJDS12B3045 AJDS12D3045 AJDS12E3045 12mm 50 1000
32-50 AJDS12A3250 AJDS12B3250 AJDS12D3250 AJDS12E3250 12mm 50 1000
40-60 AJDS12A4060 AJDS12B4060 AJDS12D4060 AJDS12E4060 12mm 20 1000
50-70 AJDS12A5070 AJDS12B5070 AJDS12D5070 AJDS12E5070 12mm 20 500
60-80 AJDS12A6080 AJDS12B6080 AJDS12D6080 AJDS12E6080 12mm 20 500
70-90 AJDS12A7090 AJDS12B7090 AJDS12D7090 AJDS12E7090 12mm 20 500
80-100 AJDS12A80100 AJDS12B80100 AJDS12D80100 AJDS12E80100 12mm 20 500
90-110 AJDS12A90110 AJDS12B90110 AJDS12D90110 AJDS12E90110 12mm 20 500
100-120 AJDS12A100120 AJDS12B100120 AJDS12D100120 AJDS12E100120 12mm 20 500
110-130 AJDS12A110130 AJDS12B110130 AJDS12D110130 AJDS12E110130 12mm 20 250
120-140 AJDS12A120140 AJDS12B120140 AJDS12D120140 AJDS12E120140 12mm 20 250
130-150 AJDS12A130150 AJDS12B130150 AJDS12D130150 AJDS12E130150 12mm 20 250
140-160 AJDS12A140160 AJDS12B140160 AJDS12D140160 AJDS12E140160 12mm 20 250
150-170 AJDS12A150170 AJDS12B150170 AJDS12D150170 AJDS12E150170 12mm 20 250
160-180 AJDS12A160180 AJDS12B160180 AJDS12D160180 AJDS12E160180 12mm 20 250
170-190 AJDS12A170190 AJDS12B170190 AJDS12D170190 AJDS12E170190 12mm 20 250
180-200 AJDS12A180200 AJDS12B180200 AJDS12D180200 AJDS12E180200 12mm 20 250
NOTE: 1,The standard packing material in bags and cartons.
2,Other sizes are available for us too.
3,All the information is just for your reference,can't be used as specification.
Main Products Outline:


1 British hose clamps: band thickness is usually about 1 mm, double the thickness of other hose clamps. So the band tension is very strong. Widely used in larger pressure occasions. With out tooth traces at inner ring of the band can protect the soft surface of hoses.
2 German hose clamps: the unique side pressing design, and non-perforated design can effectively prevent the soft surface of the silicone tube and hose from damage.
3.American hose clamps: with band thread through-hole, and teeth of the screw fitted in, they have more powerful locking. and accurate Occlusal. Also,american hose clamps can be used in non-circular objects, they can bundle the square columnar objects, such as flue, electric vehicle batteries,etc.
4.T bolt hose clamps: similar to their brothers ---- the single-head solid strong clamps, both of them belong to the powerful hose clamps , which also called European clamps. The common bandwidth 20MM, 24MM, 26MM,etc., have a larger Strong torque. Widely used in places with strong fastening force requirements.
5.V band hose clamps: traditional flange replacing products. beautiful appearance. cheap. fast and easy installation. high strength, good sealing performance. Pipes are connected with high concentricity. and easy removal. They can be used as an active connection of round or oval ducts and pipes which require constant maintenance and activities.
6.U shape pipe clamps:are used for pipe fixing on various surfaces and support structures. U tube clamps is suitable for fixed pipeline with oil, water, gas medium in metallurgy, petroleum, chemicals, vehicles, ships, power hydraulic systems. U pipe clamps under stamping, sheet metal, galvanized surface treatment , taking shape with "U" style,have a unique advantage of damping, silencers, sound absorption, abrasion etc..
7.Spring-loaded T-bolt hose clamps: spiral spring design prevents the occurrence of leakage when temperature changes, and have a self-compensation function (constant pressure). Widely used in truck air intake, cooling ventilation systems. T-spring hoops made of high quality stainless steel and thin band material, provide uniform sealing pressure with special bending process ,forming a completely reliable seal. they are dedicated to the environment of vibration and large diameters.
8 rubber coated hose clamps: with good flexibility, tensile strength, flame retardant, waterproof, anti-aging, anti-static, high temperature resistance, corrosion resistance, wear-resistant, anti-UV performance.
9. Handle/thumb screw hose clamps: simple and easy to use, without any tools. Handle/thumb screw can be plastic coated or not.
10 quick release hose clamps: mainly used in fast conversion, such as sealing of the air duct, dust channel interface. meets quickly tied needs to enable work very efficient.

Export advantages:
1.We always inspect every hose clamp to avoid any shortcoming,so we promise every hose clamp reaches the export standard.
2.Our factory is located in Tianjin,which is the second largest port of china..So we could save the inland freight for you,also as a production-oriented enterprise,we will give you the best quotation.
3.We have passed the certification of ISO9001 in 2008.Also we could offer ODM,OEM and Buyer Label Service.So we promise our product quality and our service.
4.We have a strong production ability,also professional quality control department,so we could promise our delivery time and product quality.


Packaging

Tianjin Shunfa Universal Clamp Co.,Ltd was founded in 2002. The manufacture covers an area of 340,000 square meters, with a construction area of 250,000 square meters and 1000 employees.The company has great experience in the clamp production industry. Years of technology and quality assurance have enabled us to have a broad customer base in the globle market.

The company's main products are: stainless steel clamp standard parts and non-standard, stainless steel hose clamps, rubber and other products, and exported to Asia, Africa, Europe, the Middle East, the Amerias, and many parts of the world.

We have a first-class technology research and development demand that we provide our customers with the best quality products and services.We sincerely hope to establish long-term trade links with customers from all over the world. If you know more about our company, please contact :shunfa@sino-sources.com


Shunfa Universal Clamp main produce various specifications hose clamp,commit to provide best quality hose clamps products for overseas users.
