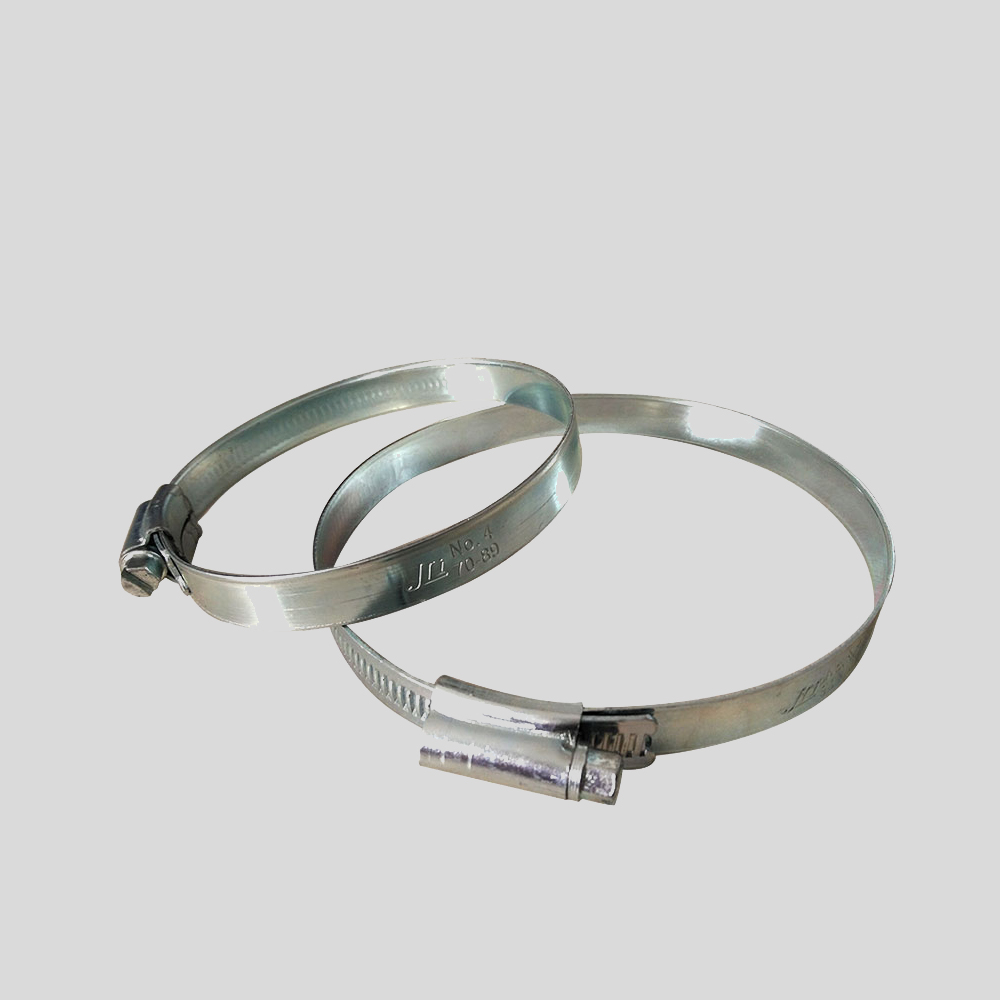

Quality and low price galvanized steel weld head British type hose clamps for sale
Payment Terms: TT or LC
Ref Price : 0.01-10 USD/PIECE
Sino-Sources Service Pledge
-
Quality Product
-
Credit Purchasing
-
Credit Rating
-
Timely Delivery
-
Order On-line Tracking
-
Credit Services
Quick Details
-
Place of Origin：Tianjin,China
-
Brand Name：Shunfa
-
Material：Stainless Steel
-
Structure：Swivel Clamp
-
Standard：AISI, ASTM, BS, DIN, GB, JIS
-
Diameter：6-300mm, or as customer's requirment
-
Band width：8mm,10mm,12mm,12.7mm
-
Thickness：0.6-0.8mm ,or as your requirments
-
Delivery time：About15 working days after T/T at sight
-
Technique：hot rolled,pickled,cold drawn,forge
-
Packaging：Standard export package or as your requirements
-
Surface Treatment：Polished, Galvanized

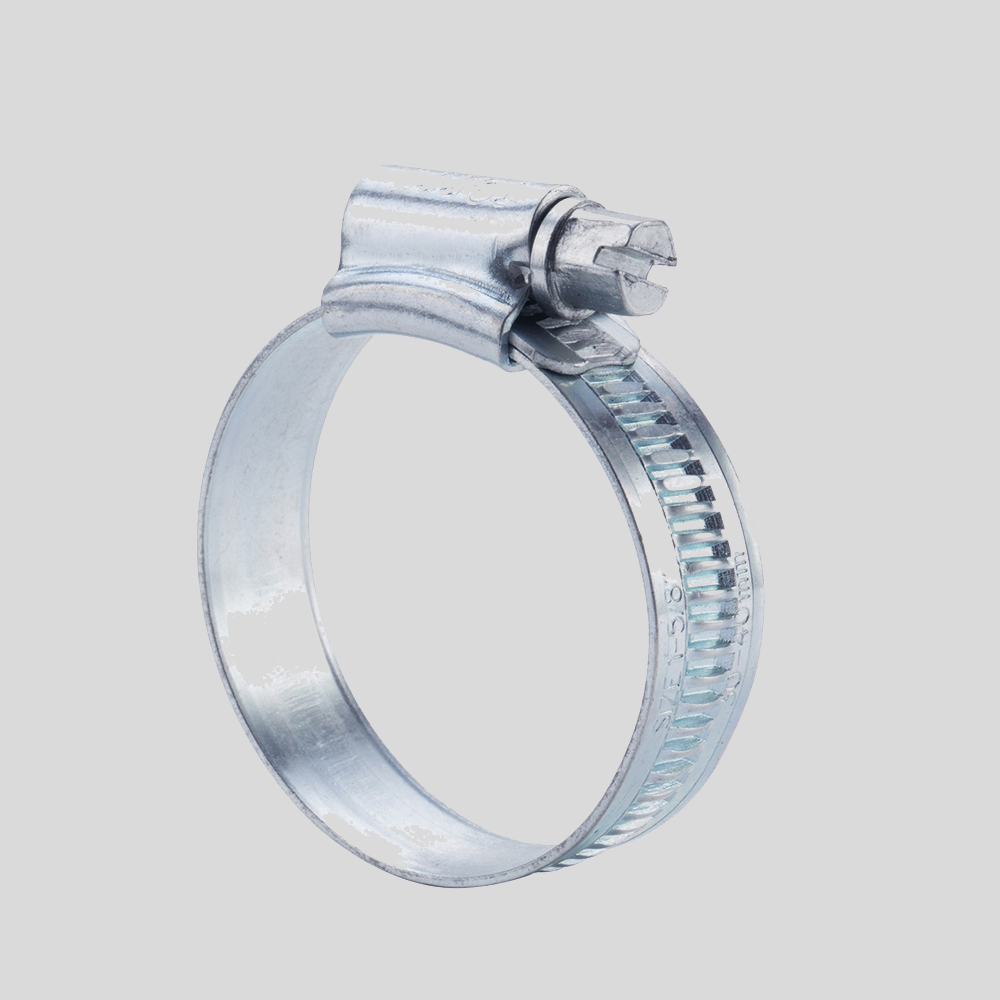

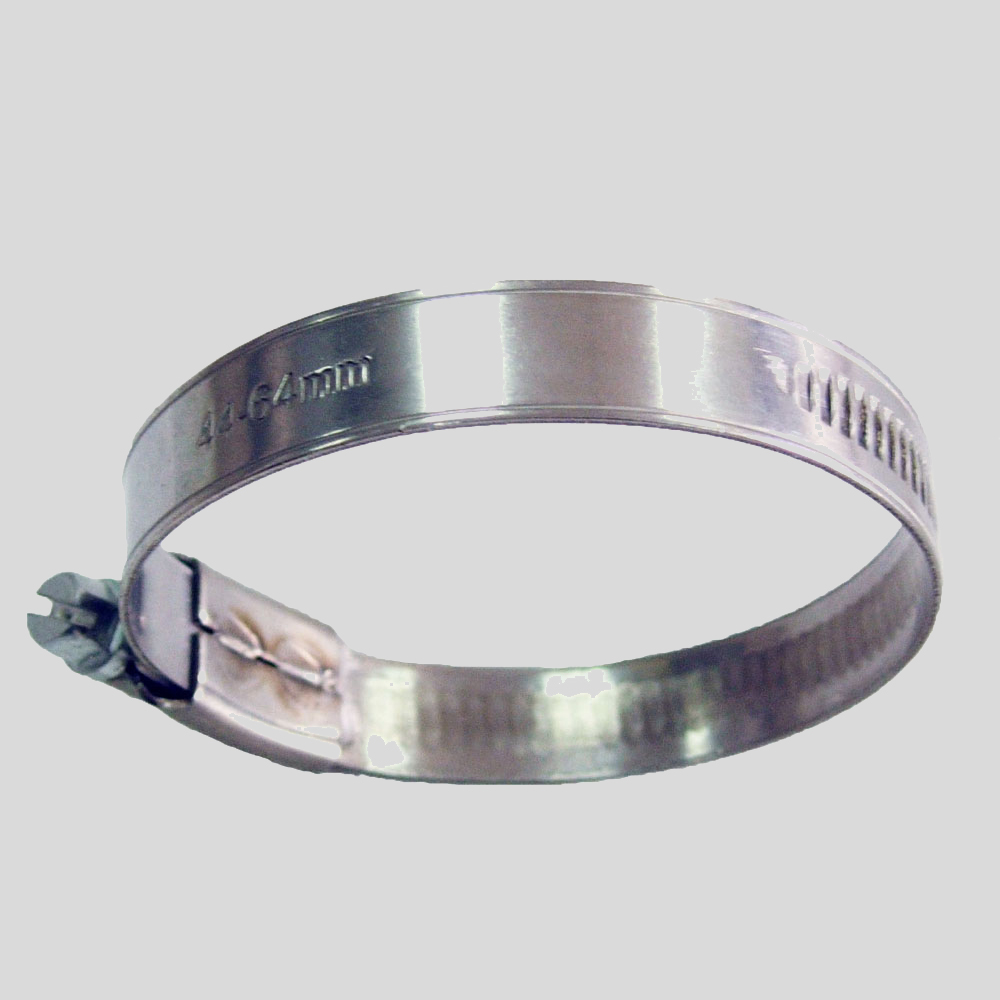

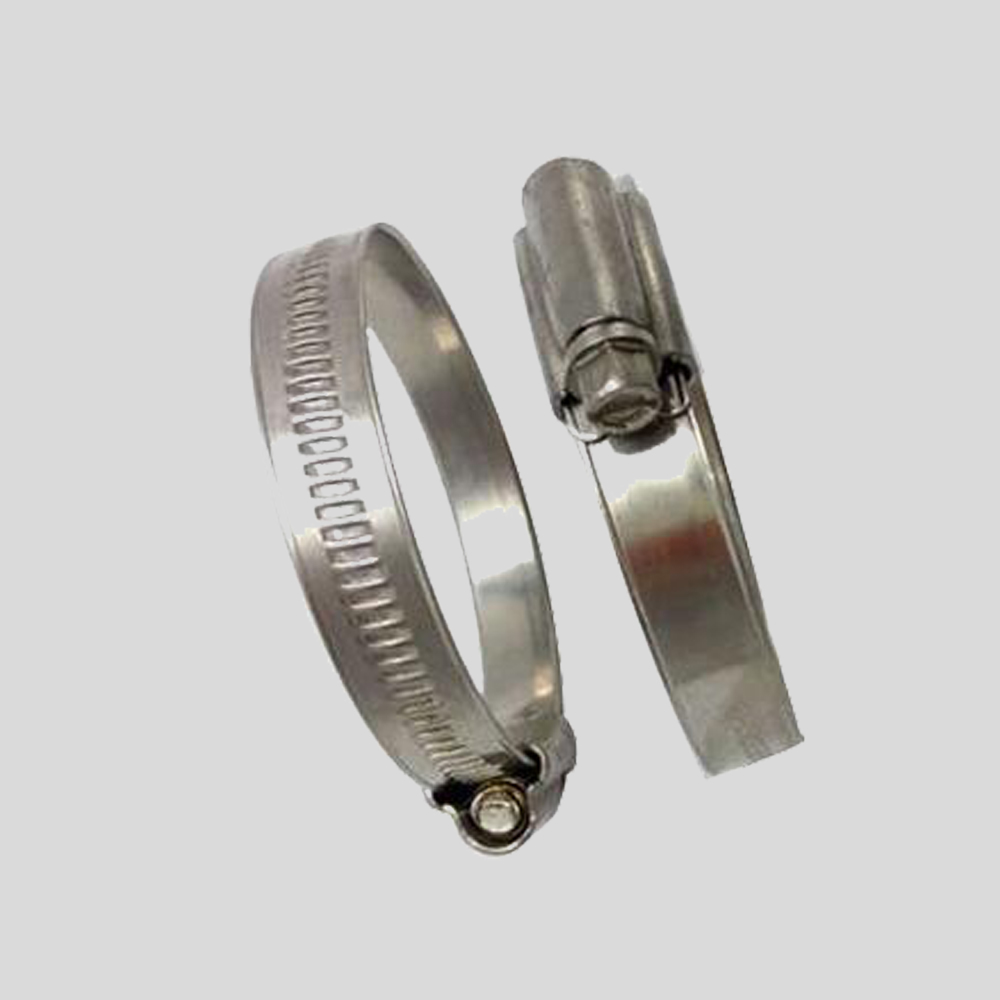

Product show
| 1) Name: | Weld head British type hose clamps |
| 2) Material: | W1 /W2 /W4 |
| 4) Size: |
Dia: 6mm-300mm; Band width:8mm/10mm/12mm/12.7mm; or according to client's requirement |
| 5) MOQ: | 500 Pcs |
| 6) Packing: | First in plastics bag or box, then in carton |
| 7) Payment term: | L/C, T/T, Paypal, Western Union,etc. |
| 8) Delievery Time: | 7-15 working days |
| 9) Application | Pipe connection |
(Note W1: Galvanized steel band; Galvanized steel housing ; Galvanized steel screw
W2: Stainless steel band; Galvanized steel housing ; Galvanized steel screw
W4: Stainless steel band; Stainless steel housing ; Stainless steel screw)
 |
 |
 |
|
Specification And Dimension
| SIZE | INCH | MM | WIDTH(mm) |
| 4 | 7/32"-5/8" | 6-16 | 6 |
| 6 | 7/16"-3/4" | 11-20 | 6 |
| 8 | 1/2"-7/8" | 13-23 | 6 |
| 9 | 1/2"-1" | 13-25 | 6 |
| 10 | 1/2"-11/16" | 14-27 | 6 |
| 12 | 1/2"-11/4" | 18-32 | 6 |
| 16 | 13/16"-2" | 21-38 | 8 |
| 20 | 13/16"-13/4" | 21-44 | 8 |
| 24 | 11/16"-11/16" | 27-51 | 8 |
| 28 | 15/16"-21/4" | 35-57 | 8 |
| 32 | 19/16"-21/2" | 40-63 | 10 |
| 36 | 113/16"-23/4" | 46-70 | 10 |
| 40 | 21/16"-3" | 52-76 | 10 |
| 44 | 2516"-31/4" | 59-82 | 10 |
| 48 | 29/16"-31/2" | 65-89 | 10 |
| 52 | 213/16"-33/4" | 72-95 | 10 |
| 56 | 31/16"-4" | 78-101 | 10 |
| 60 | 35/16"-41/4" | 84-108 | 10 |
| 64 | 39/16"-41/2" | 91-114 | 10 |
| 72 | 41/8"-5" | 105-127 | 10 |
| 80 | 45/8"-51/2" | 118-140 | 12 |
| 88 | 51/8"-6" | 130-152 | 12 |
| 96 | 55/8"-61/2" | 143-165 | 12 |
| 104 | 61/8"-7" | 155-178 | 12 |
Chemical Composition
| MATERIAL | NAME | ELEMANTS | |||||||||
| C | Cr | Ni | Mn | P | S | Mo | Si | Cu | N | ||
| 201 | 1Cr17Mn6Ni5N | <0.15 | 16.0-18.0 | 3.5-5.5 | 5.5-7.5 | <0.06 | <0.03 | - | <1.0 | - | <0.25 |
| 202 | 1Cr18Mn8Ni5N | <0.15 | 17.0-19.0 | 4.0-6.0 | 7.5-10.0 | <0.06 | <0.03 | - | <1.0 | - | <0.25 |
| 301 | 1Cr17Ni7 | <0.15 | 16.0-18.0 | 6.0-8.0 | <2.0 | <0.065 | <0.03 | - | <1.0 | - | - |
| 303 | Y1Cr17Ni7 | <0.15 | 17.0-19.0 | 8.0-10.0 | <2.0 | <0.20 | <0.03 | - | <1.0 | - | - |
| 304 | 0Cr18Ni9 | <0.07 | 17.0-19.0 | 8.0-10.0 | <2.0 | <0.035 | <0.03 | - | <1.0 | - | - |
| 304L | 00Cr19Ni10 | <0.03 | 18.0-20.0 | 8.0-10.0 | <2.0 | <0.035 | <0.03 | - | <1.0 | - | - |
| 309S | 0Cr23Ni13 | <0.08 | 22.0-24.0 | 12.0-15.0 | <2.0 | <0.035 | <0.03 | - | <1.0 | - | - |
| 310S | 0Cr20Ni20 | <0.08 | 24.0-26.0 | 12.0-15.0 | <2.0 | <0.035 | <0.03 | - | <1.0 | - | - |
| 316 | 0Cr17Ni12Mo2 | <0.08 | 16.0-18.5 | 10.0-14.0 | <2.0 | <0.035 | <0.03 | 2.0-3.0 | <1.0 | - | - |
| 316Ti | 0Cr18Ni12Mo2Ti | <0.08 | 16.0-19.0 | 11.0-14.0 | <2.0 | <0.035 | <0.03 | 1.8-2.5 | <1.0 | - | - |
| 316L | 00Cr17Ni14Mo2 | <0.03 | 16.0-18.0 | 12.0-15.0 | <2.0 | <0.035 | <0.03 | 2.0-3.0 | <1.0 | - | - |
| 317L | 00Cr19Ni13Mo3 | <0.08 | 18.0-22.0 | 11.0-15.0 | <2.0 | <0.035 | <0.03 | 3.0-4.0 | <1.0 | - | - |

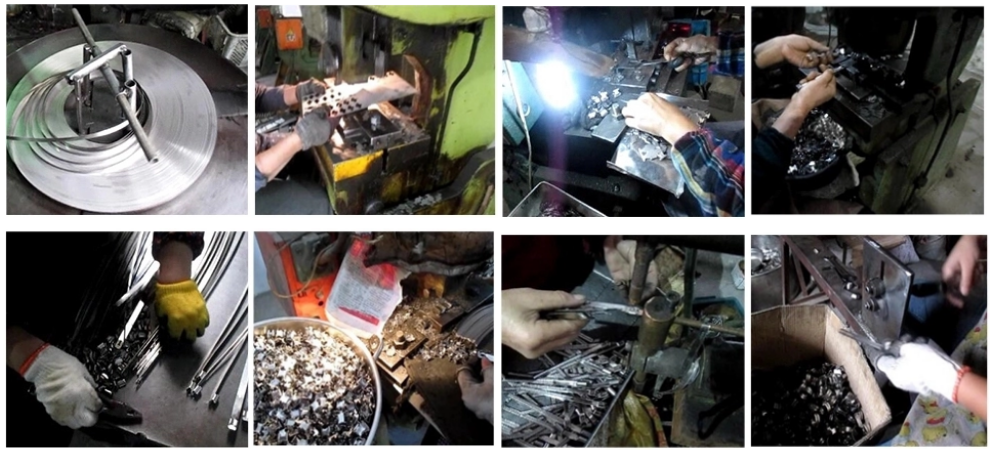

Process

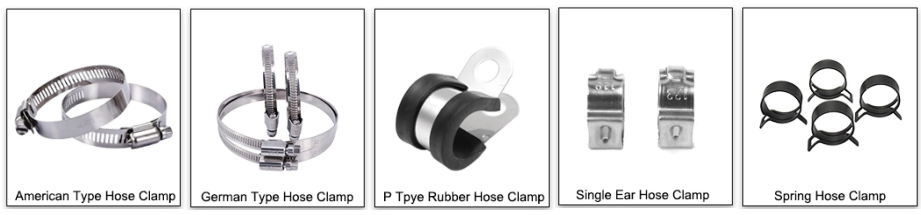

Main Products

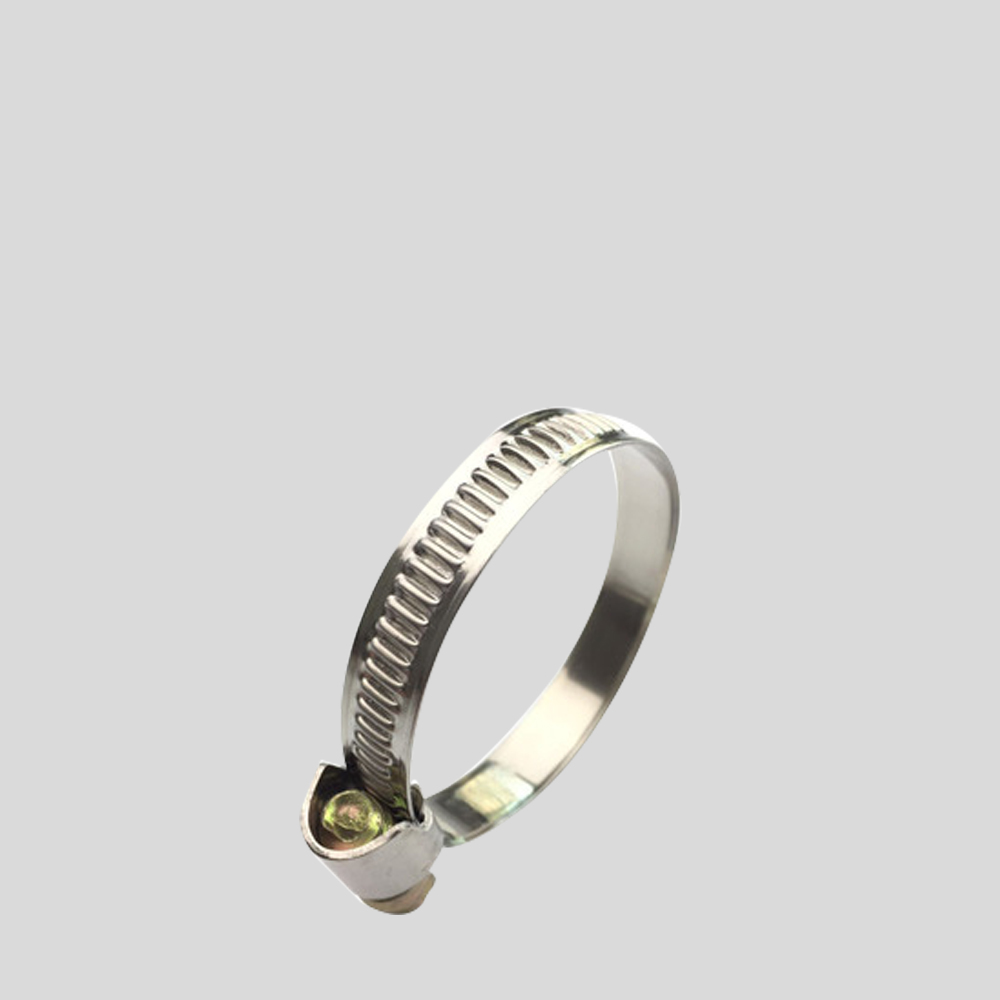

1.German hose clamps: the unique side pressing design, and non-perforated design can effectively prevent the soft surface of the silicone tube and hose from damage.

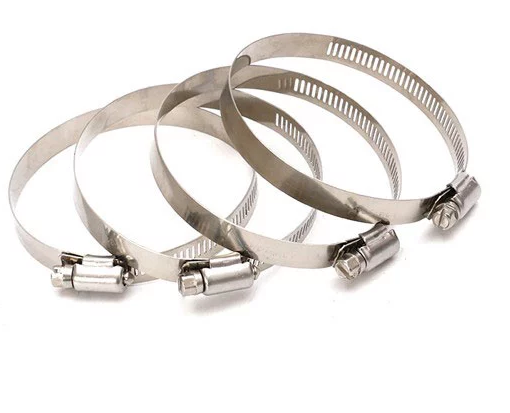

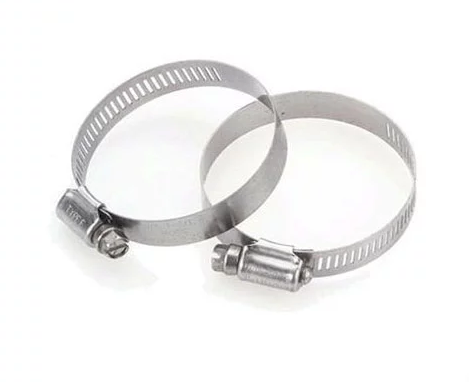

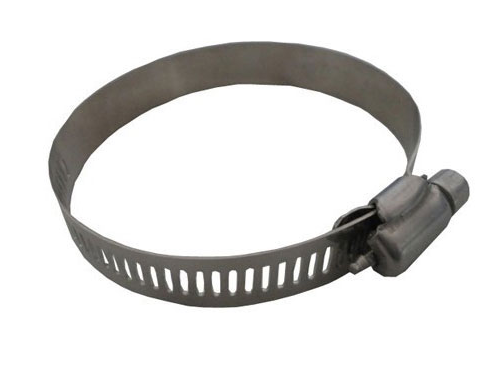

2.American hose clamps: with band thread through-hole, and teeth of the screw fitted in, they have more powerful locking. and accurate Occlusal. Also,american hose clamps can be used in non-circular objects, they can bundle the square columnar objects, such as flue, electric vehicle batteries,etc.
3.T bolt hose clamps: similar to their brothers ---- the single-head solid strong clamps, both of them belong to the powerful hose clamps , which also called European clamps. The common bandwidth 20MM, 24MM, 26MM,etc., have a larger Strong torque. Widely used in places with strong fastening force requirements.
4.Quick release hose clamps: mainly used in fast conversion, such as sealing of the air duct, dust channel interface. meets quickly tied needs to enable work very efficient.
Tianjin Shunfa Universal Clamp Co.,Ltd was founded in 2002. The manufacture covers an area of 340,000 square meters, with a construction area of 250,000 square meters and 1000 employees.The company has great experience in the clamp production industry. Years of technology and quality assurance have enabled us to have a broad customer base in the globle market.
The company's main products are: stainless steel clamp standard parts and non-standard, stainless steel hose clamps, rubber and other products, and exported to Asia, Africa, Europe, the Middle East, the Amerias, and many parts of the world.
We have a first-class technology research and development demand that we provide our customers with the best quality products and services.We sincerely hope to establish long-term trade links with customers from all over the world. If you know more about our company, please contact :shunfa@sino-sources.com
Shunfa Universal Clamp main produce various specifications hose clamp,commit to provide best quality hose clamps products for overseas users.
