Quayside Container Crane
Payment Terms: TT or LC
Ref Price : 1200-15000 USD/SET
Sino-Sources Service Pledge
-
Quality Product
-
Credit Purchasing
-
Credit Rating
-
Timely Delivery
-
Order On-line Tracking
-
Credit Services
Quick Details
-
Product Name：Quayside Container Crane
-
Lifting Weight：16t-55t
-
Above Rail：18-24m
-
Outreach：20-55m
-
Type of Container：20' 40' 45'
-
Feature：Portal Crane

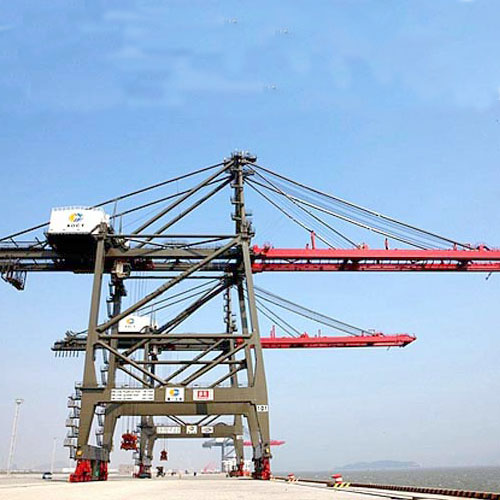

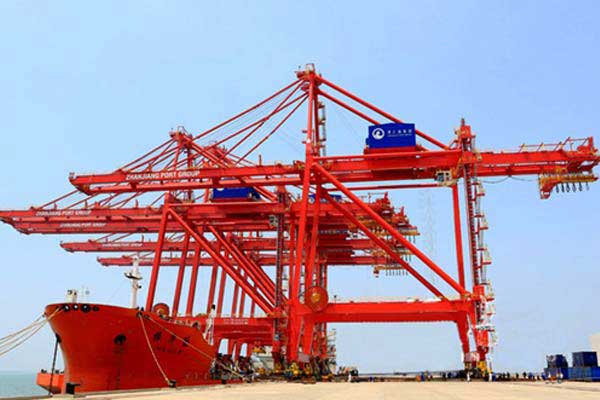

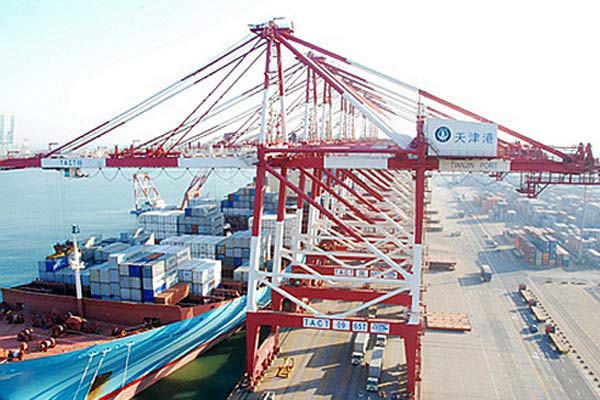

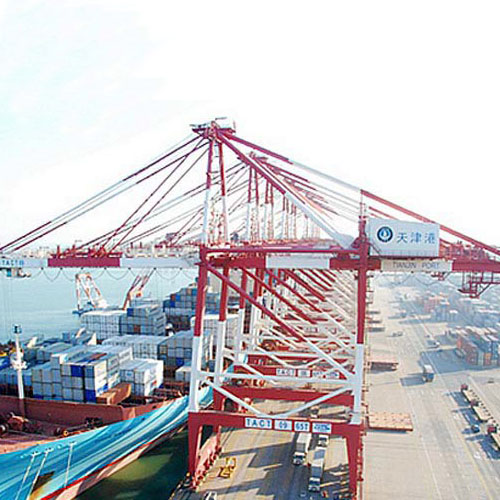

Quayside Container Crane Description：
The quayside container crane is a crane specially designed to serve the loading and unloading of containers at large terminals. This container crane consists of a support frame that can be moved on the track. The crane is equipped with a special spreader instead of a hook that can be locked onto the container.
1. Rated load lifting capacity (t/h ): 400, 500, 600, 800, 1000, 1250, 1500, 1800, 2000, 2250, 2500, 3000, 3600, 4000, 4500, 5000.
2. Rated load lifting capacity priority ( t ): 10, 12.5, 16, 20, 25, 32, 40, 45, 50, 56, 63, 71, 80, 90.
3. Working Level:
|
Standard |
GB3811-2008 |
|
Use Classes |
U8 |
|
Load-up Condition |
Q4 |
|
Work Level |
A8 |
4. Working Level of Mechanisms:
|
Mechanism |
Using Grade |
Load-up Condition |
Work Level |
|
Lifting/Closing |
T8 |
L4 |
M8 |
|
Trolley |
T8 |
L4 |
M8 |
|
Crane |
T5 |
L3 |
M6 |
|
Front Girder Pitching |
T4 |
L3 |
M5 |
|
Cab |
T4 |
L3 |
M5 |
5. Working Speed:
|
Mechanism |
Speed ( m/min ) |
|
Lifting/Closing ( full load/without load ) |
60~80/100~240 |
|
Trolley Traveling |
100~280 |
|
Crane Traveling |
20~40 |
|
Front Girder Pitching |
5~10 ( one way ) |
|
Cab Traveling |
20~25 |
6. Steel Structure:
|
Design Service Time |
20~30 years |
|
Load Character |
Consecutive, heavy-duty, alternating |
|
Operating Character |
Cycle operation, work busy, high impact |
7. Components of Steel structure: crane chassis, back pull rod, tower frame, front pull rod, front girder, gantry frame, funnel scaffold, angling strut, back girder.
Specification
| Rated productivity priority | t/h | 600~2500 | ||
| Lifting Capacity | t | 16, 32 , 55 | ||
| Lifting Height | m | Above Rail 18~24 Below Rail 1 | ||
| Proportion of material stack | t/m³ | 0.9~3.0 | ||
| Max Outreach | m | 20~55 | ||
| Track Gauge | m | 17, 30 | ||
| Wheel Base | m | 12, 17 | ||
| Lifting/Closing Speed | m/min | 100~150 | ||
| Trolley Traveling Speed | m/min | 120~150 | ||
| Pitching Time | min | 5 | ||
| Crane Traveling Speed | m/min | 20 | ||
| Max Wheel Load | KN | 200 | ||
| Power Supply | 10KV, 50Hz, 3Phase | |||
Weihua Group, a leading crane manufacturing company in China, was Founded in 1988. We has been committed to heavy machinery researching and marketing.
The main product covers shipbuilding gantry crane, lifting machinery, port container crane, heavy mining machinery and construction machinery, etc. The whole coverage of Weihua Group is 3,420,000 m2 with 6,800 employees.
Weihua adheres to scientific and technological innovation and owns a 600-people R&D team, 494 patents, CNAS laboratory, etc. For the cranes, Weihua have made many breakthroughs which include anti-sway crane system, CNC high precision positioning crane system, self-climbing crane for wind power maintenance and so on.
In recent years, Weihua cranes have been employed to serve China's Aerospace Engineering projects such as launching of Shenzhou spacecraft, Long March carrier rockets and Tiangong space laboratory. You can also find Weihua products in the fields of manufacturing, metallurgy, nuclear power, railway,port, petrochemical and wind power.
Weihua products also find its places in the global markets and won much praise from108 countries like America, Japan, Russia, Singapore, Korea, Thailand, Malaysia, Mexico, etc.
Our success comes from customers' success. Welcome to Weihua.
