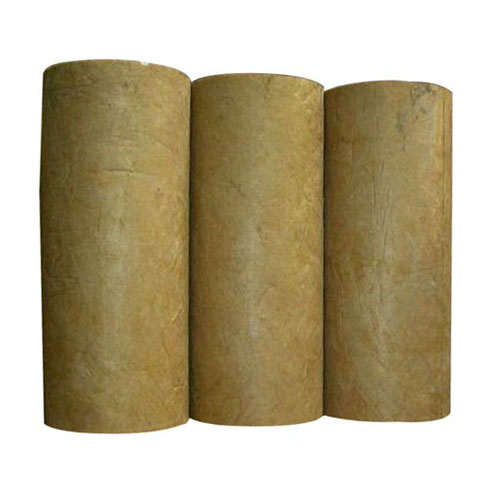

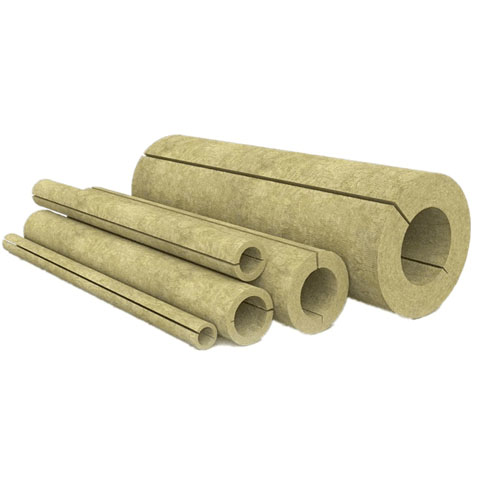

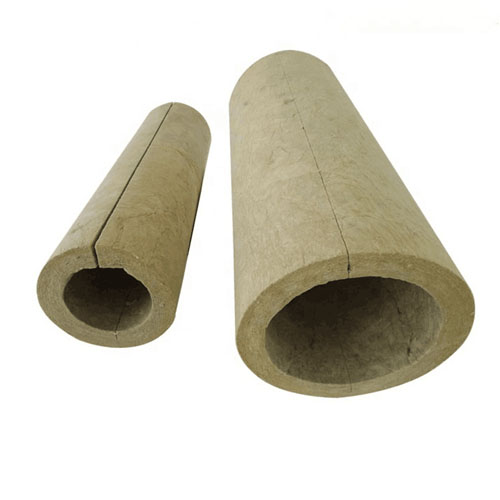

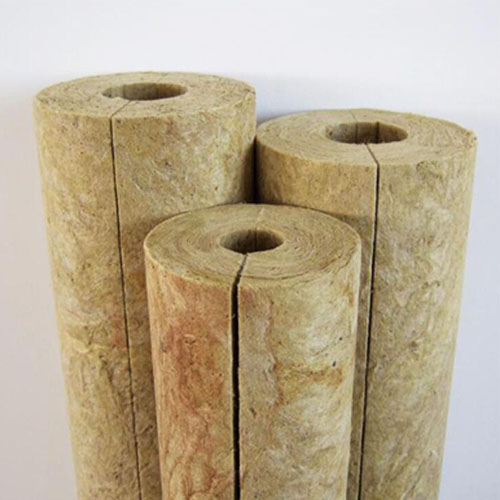

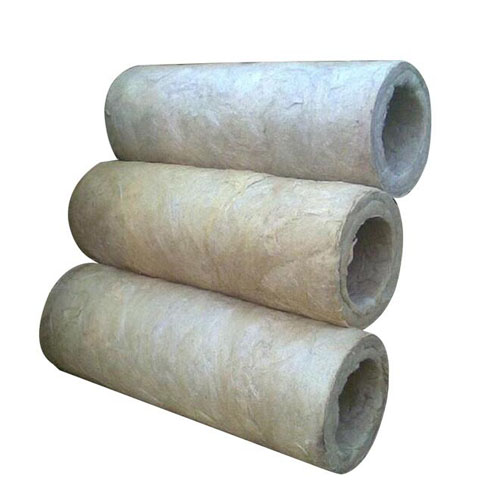

Rock wool pipe/blanket/board material for industrial insulation use



Product Description



(1) Weight:100-180kg/m3

(2) Inner Diameter:φ22mm-1220mm

(3) Thickness:20mm-200mm







SCOPE OF APPLICATION

Thermal insulation,Fire prevention,sound absorbing and noise

reduction of large pipe networks, large storage tanks, vessels,

boilers and ducts, especially suitable for high temperature and

vibration places or _re prevention Demanding higher places



PRODUCT FEATURES

High temperature resistance

Strong corrosion resistance

Good thermal conductivity

Good dimensional stability

Anti-compression ability

TECHNICAL DATA SHEET



tem	Unit	Index	Experimental Method
density	Kg/m3	50-200kg/m3	GB5480.3
density allowable deviation	%	±10
average value of fiber	um	4-7	GB5480.4
slag ball content (granule diameter)>0.25mm)	%	6	GB5480.5
volume water absorption	%	2	GB/GB16401-1996
heat absorption	%	1.0	GB5480.7
moisture resistivity	%	98	B10299-88
shrinkage temperature of heat load		650	GB11835-1998
organic content	%	4%	GB11835-1998
compressive strength (10% compressibility)	kPa	40	GB/T13480-92
peeling strength	kPa	14	DIN52274
incombustibility	--	Grade A	GB5465
thermal conductivity	W/mk	0.036~0.048	GB10294-88
acidity coefficient		1.5
binder content	%	3.0

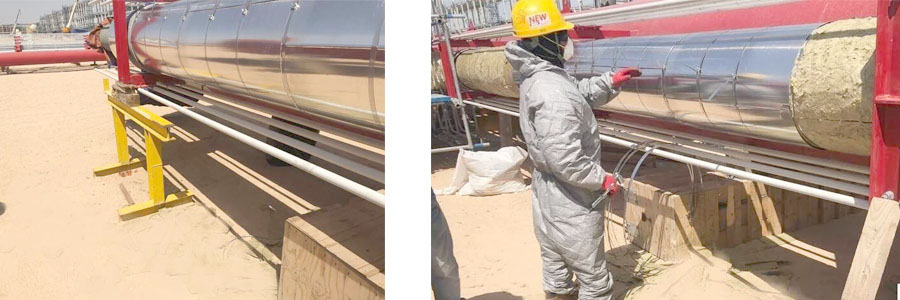

Application：
