AISI, ASTM, BS, DIN, GB, JIS
ASTM-A36, ASTM-A572, ST-37, ST-52, S235JR, S355JR, SS400, SS550, etc
Tianjin, China (Mainland)
Sino East
Square Tube
Solar Structure
Is Perforated
Galvanized Coated EN1461
Colour Painting TITANPOL400
As Customer's Drawing
YES
500-800 USD/TON
100 TON
5000 TON
TT , LC , Others

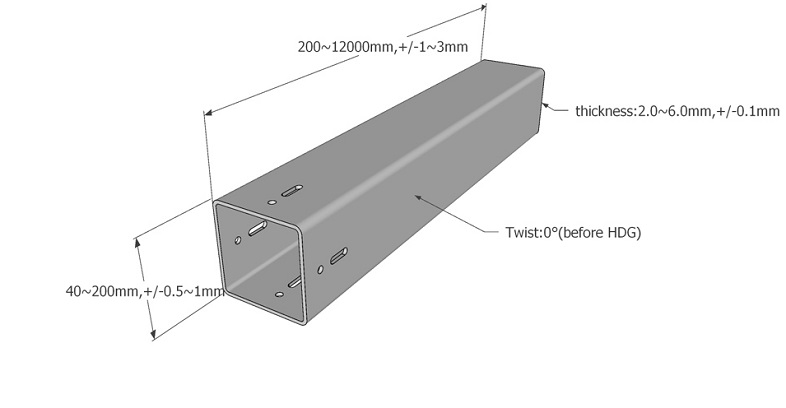

Square Tube Product Specification
| Size | Tolerance | Remark | |
| Width | 40-200 mm | ±0.5-1mm |
All of the spec. could be adjusted in accordance with buyer's direction |
| Length | 200-12000 mm | ±1-3mm | |
| Thickness | 2.0-6.0 mm | ±0.1mm | |
| Twist | 0° before HDG | 0 |
Square tubing detailed information:
|
Product Name |
Square Tube |
|
Size |
As Customer's Drawing |
|
Wall thickness |
As Customer's Drawing |
|
Length |
As Customer's Drawing |
|
Materials |
ASTM-A36, ASTM-A572, ST-37, ST-52, S235JR, S355JR, SS400, SS550, etc |
|
Galvanizing standard |
ISO1461, ASTM A123 / A123M - 17, ASTM A153/A153M, ASTM A143/A143M, etc |
|
Product category |
Mineral Solar & Energy |
|
Technique |
Cold Bending |
|
Punching |
CNC Punching, Laser Punching as Customer's Drawings |
|
Surface processing |
Pre-Galvanized, Hot Dipped Galvanized & Painting, or as customer request |
|
Packing |
Export seaworthy package, or as request |
|
Main market |
Middle East, Africa, Asia, America ,Australia and Mexico |
|
Country of origin |
Tianjin,China |
|
Productivity |
5000 Metric Tons per Month |
|
Payment term |
Irrevercable L/C or TT |
|
Shipment term |
FOB ,CFR,CIF |

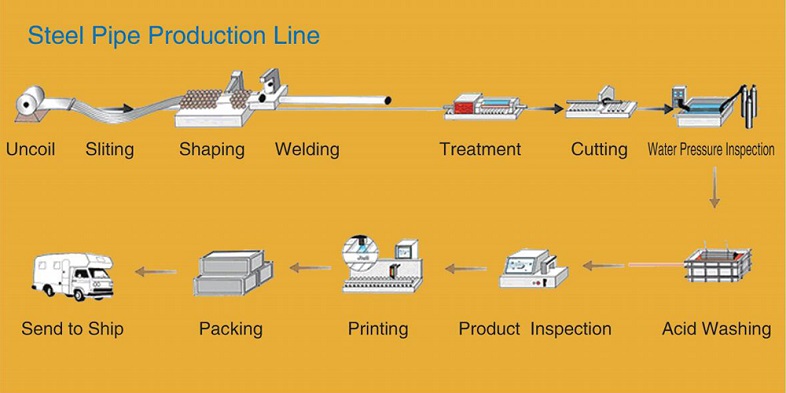

Production process of square tube

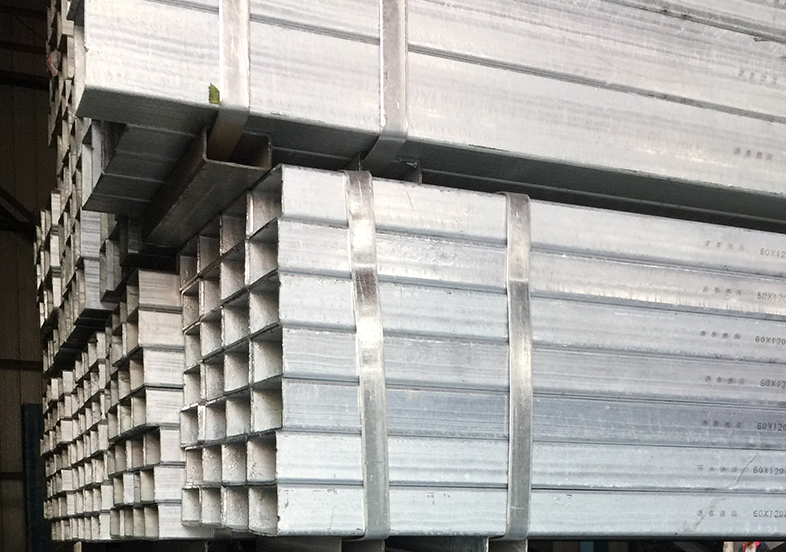

Packing method of square tube
The dimensions of galvanized steel square tubing are 450 mm x 600 mm. They allow the placement of 5 packages in the base. Each package contains 12 pieces. The approximate weight, depending on the length is 2,000 kg. It is unloaded with 2 Manitous of minimum 3 tons, in a marked area, marked and leaving a margin so that the trucks can work, without personnel around. It is stackable at 3 heights maximum. Each package will be identified with SAP type label. The load fasten will be carried out in accordance with the UNE-EN 12195 standard "Devices for securing cargo in road vehicles".
That is our standard packing method, but if you have any special requirements, we can do OEM as your requirements.
