galvanised corrugated roofing sheets factory
galvanised corrugated roofing sheets factory
| Payment Terms: TT or LC |
| Supply Capability : |
| Loading Port : TianJin |
-
Company Support:
Trade Assurance Payment protection On-time shipment Product quality protection
- Payment:
- Details
1.Raw Materials:
|
Thickness |
0.15mm-0.8mm |
|
Width |
600mm-1250mm |
|
Quality |
prime |
|
Zinc coating |
Z60-Z275 |
|
Spangle |
Normal spangle/Small spangle/Big spangle/Zero spangle |
|
Grade |
SGCC/DX51D or equivalent standard |
|
Paint |
PE; HDP; SMP; PVDF. |
|
Coat |
Face two layers paint 20um; back 1 layer paint 5-8um. |
|
Color |
RAL color, as request |
|

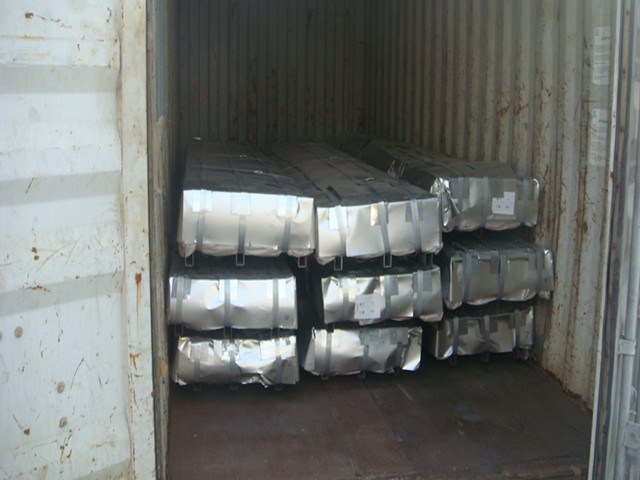

Packing: |
Domestic packing/Export packing |
2. Paint:
1. Face paint name -PE; HDP; SIMP; PVDF
2. Face paint detail-Two layers; 20-25um
3. Back paint name-PE grey white color
4. Back paint detail-One layer 5-7um
3. Technical:
1. Forming type-Cold form
2. Machine-Rolling form machine
4. Specification:
|
Thickness |
Normal 0.23mm-0.6mm; min: 0.16mm; max: 1.5mm |
|
Rib height |
Depend on model you chose |
|
Wave span |
Depend on model you chose |
|
Wave no. |
Depend on model you chose |
|
Effective Width |
320mm-1025mm |
|
Length |
No longer than 11800mm (for transportation purpose) |
5. The Available Mode:
|
YX8-130-910 |
YX10-112.5-900 |
YX10-110-880 |
YX14-65-850 |
|
YX15-140-840 |
YX16-225-900 |
YX16-80-850 |
YX18-63.5-825 |
|
YX25-210-840(SHEET) |
YX25-210-840(TILE) |
YX25-215-860 |
YX25-85-765 |
|
YX26-205-820 |
YX26-205-1025 |
YX28-150-750 |
YX28-150-900 |
|
YX28-280-840 |
YX32-130-780 |
YX35-125-750 |
HV51-380-760 |
|
HV51-410-820 |
HV66-394-788 |
YX130-300-600 |
As your design |
