PC Strand
PC Strand
| Payment Terms: TT or LC |
| Supply Capability : |
| Loading Port : TianJin |
-
Company Support:
Trade Assurance Payment protection On-time shipment Product quality protection
- Payment:
- Details
Description:
Our company can produce various models according to different standards of products, specifications are as follows:
(1) Steel Strand for PC Concrete
GB/T5224:
1×7-9.5mm/11.1mm/12.7mm/15.2mm/15.7mm/17.8mm/21.6mm;
ASTM416
1×7-7.9mm/9.53mm/11.11mm/12.7mm/13.2mm/14.29mm/15.24mm/17.8mm;
BS 5896
1×7-8.0mm/9.3mm/9.6mm/11.0mm/12.5mm/12.9mm/15.2mm/15.7mm;
JIS G3536
1×7-12.7mm/15.2mm;
UNE 36094
1×7-9.3mm/13.0mm/15.2mm;
KS D
1×7-9.5mm/11.1.0mm/12.7mm/15.2mm;
AS/NZS4672
9.5mm(7 wire)/12.7nn/15.2mm;
(2) Unbonded PC Strand
1x7-9.5mm/12.7mm/15.2mm/15.7mm.
(3) Prestressed Steel Wire
Plain steel wire for prestressed concrete/indented wire /spiral rib steel wire
3.0mm/4.0mm/4.8mm/5.0mm/6.0mm/6.25mm/7.0mm/8.0mm/9.0mm/10.0mm/12mm

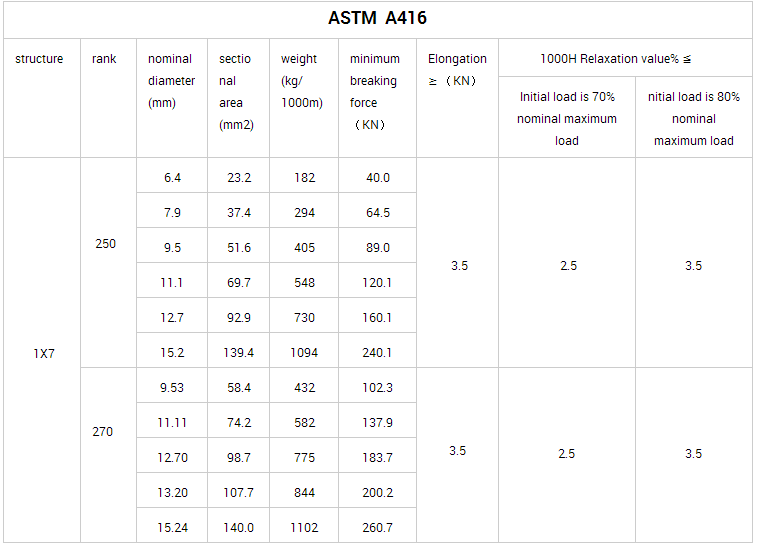

Prestressed Concrete 7-wire Strand Mechanical property General Data and Spec.
| Dia(mm) | Tensile Strength(Rm/MPa) | Max strength for whold | StipulatedNominal Non |
| 12.7 | ≥1860 | ≥185.1 | ≥166 |
| 15.2 | ≥1860 | ≥262.5 | ≥235 |
| 17.8 | ≥1860 | ≥358 | ≥318 |
| Dia(mm) | Cross section size(mm2) | Approximate weight(g/m) | Tolerance(mm) |
| 12.7 | 98.7 | 775 | +0.4~-0.2 |
| 15.2 | 150 | 1178 | +0.4~-0.2 |
| 17.8 | 191 | 1500 | +0.4~-0.2 |

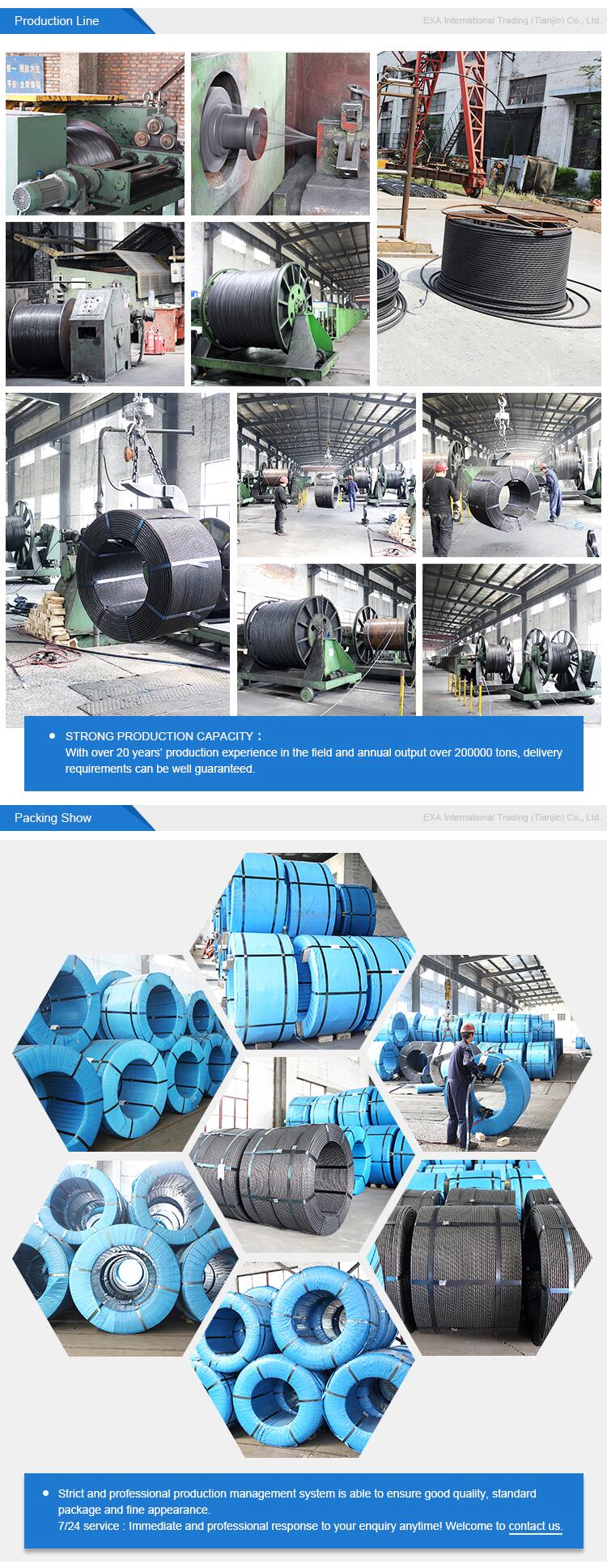

Professional on PC Steel Strand manufacturing
An annual output of 300,000 tons
ISO management certificated

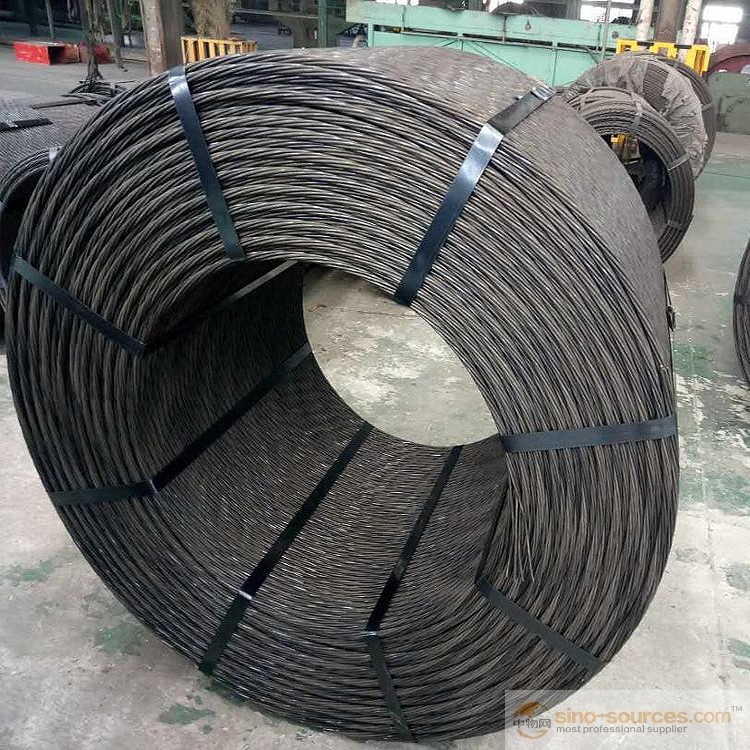

Structure:prestressed concrete 7-wire strand
Standard: ASTM416
Nominal diameter:12.7 mm 15.2mm prestressed concrete 7-wire strand
Tensile strength:1860 Mpa
Application:Bridge,highways,airports,sports venues and other infrastructure areas.
Advantages
1、We have our own factory to produce our products.
2、We have a number of excellent line service team.
3、We offer a full range of quality assurance services.
FAQ:
Q: May I have some samples before bulk order?
A: Yes, you can. We can arrange the shipment according to your requirements.
Q: Do you have quality control?
A: Sure. We have the most advanced testing equipment for very strict quality control.
Q:How about the delivery?
A: By containers on ship or railway wagon ,and bulk ship . Safe and cost effective way of delivery .
Q：What about the lead time for mass production?
A：Honestly, it depends on the order quantity and the season you place the order.
Contacts us
Skype: paulpaul120481
Mobile: +86 18622088833 (whatsapp,line)
Email: info@sino-sources.com
